2006 Toyota Matrix Base, FWD, Automatic
C59 Manual Transaxle: SST
2006 Toyota Matrix Base, FWD, AutomaticSECTION SST
C59 MANUAL TRANSAXLE SPECIAL SERVICE TOOL
| 09223-50010 | Crankshaft Front Oil Seal Replacer | |

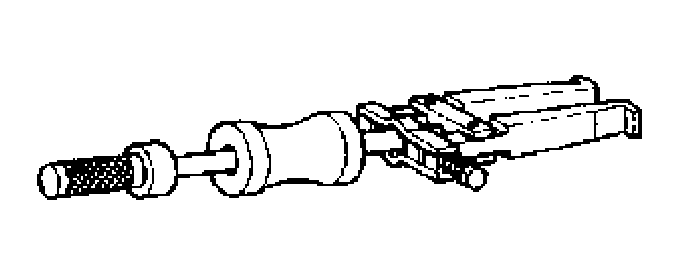

| 09308-00010 | Oil Seal Puller | |
| 09309-12020 | 5th Driven Gear Replacer | |
| 09309-36010 | Transmission Rear Bearing Replacer | |
| 09309-36100 | Transmission Bearing Replacer Set | |
| (09309-03610) | Body | |
| 09316-60011 | Transmission & Transfer Bearing Replacer | |
| (09316-00011) | Replacer Pipe | |
| (09316-00021) | Replacer A | |
| (09316-00031) | Replacer B | |
| 09350-32014 | TOYOTA Automatic Transmission Tool Set | |
| (09351-32120) | Overdrive Bearing Replacer | |
| 09554-14010 | Differential Oil Seal Replacer | |
| 09564-32011 | Differential Preload Adaptor | |
| 09608-00071 | Drive Pinion Rear Bearing Cone Replacer | |
| 09612-22011 | Tilt Handle Bearing Replacer | |
| 09612-65014 | Steering Worm Bearing Puller | |
| (09612-01040) | Claw D | |
| (09612-01050) | Hanger Pin with Nut | |
| (09612-01060) | Claw E | |
| 09636-20010 | Upper Ball Joint Dust Cover Replacer | |
| 09670-00010 | Front Crossmember Guide Tool | |
| 09710-20011 | Front Suspension Bushing Tool Set | |
| (09710-06071) | Replacer | |
| 09817-16011 | Back-up Light Switch Tool | |

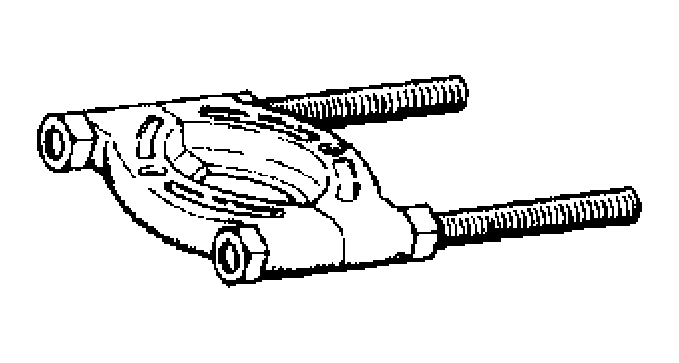

| 09950-00020 | Bearing Remover | |
| 09950-00030 | Bearing Remover Attachment | |

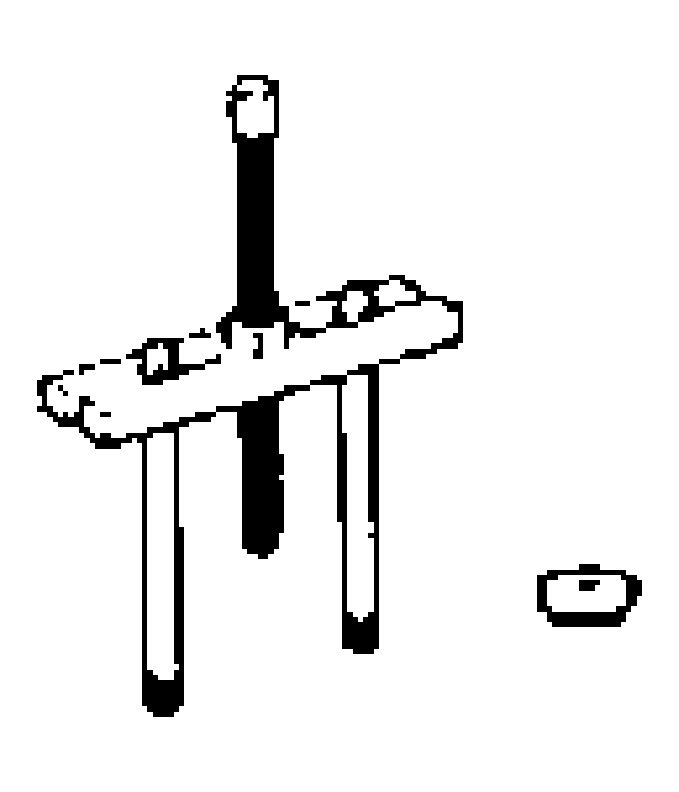

| 09950-30012 | Puller A Set | |
| (09951-03010) | Upper Plate | |
| (09953-03010) | Center Bolt | |
| (09954-03010) | Arm | |
| (09955-03011) | Claw No.1 | |
| (09957-04010) | Attachment | |
| 09950-40011 | Puller B Set | |
| (09951-04010) | Hanger 150 | |
| (09951-04020) | Hanger 200 | |
| (09952-04010) | Slide Arm | |
| (09953-04020) | Center Bolt 150 | |
| (09953-04030) | Center Bolt 200 | |
| (09954-04010) | Arm 25 | |
| (09955-04061) | Claw No.6 | |
| (09955-04071) | Claw No.7 | |
| (09957-04010) | Attachment | |
| (09958-04011) | Holder | |

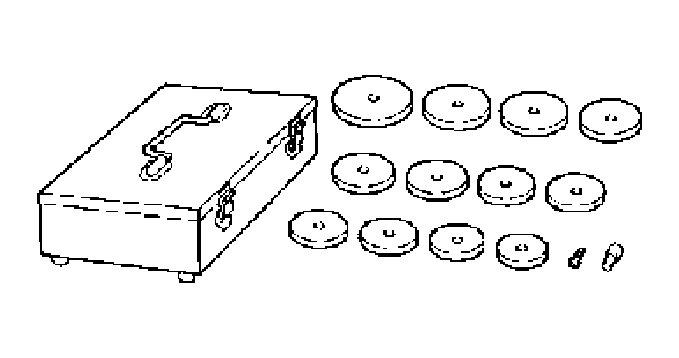

| 09950-60010 | Replacer Set | |
| (09951-00190) | Replacer 19 | |
| (09951-00200) | Replacer 20 | |
| (09951-00220) | Replacer 22 | |
| (09951-00360) | Replacer 36 | |
| (09951-00370) | Replacer 37 | |
| (09951-00420) | Replacer 42 | |
| (09951-00450) | Replacer 45 | |
| (09951-00530) | Replacer 53 | |
| (09951-00550) | Replacer 55 | |
| (09951-00600) | Replacer 60 | |
| 09950-60020 | Replacer Set No.2 | |
| (09951-00680) | Replacer 68 | |
| (09951-00710) | Replacer 71 | |
| 09950-70010 | Handle Set | |
| (09951-07100) | Handle 100 | |
| (09951-07150) | Handle 150 | |
| (09951-07200) | Handle 200 |
