2006 Toyota Matrix Base, FWD, Automatic

Engine Control Systems: Preparation: Brake: SST

2006 Toyota Matrix Base, FWD, AutomaticSECTION SST

BRAKE SPECIAL SERVICE TOOL

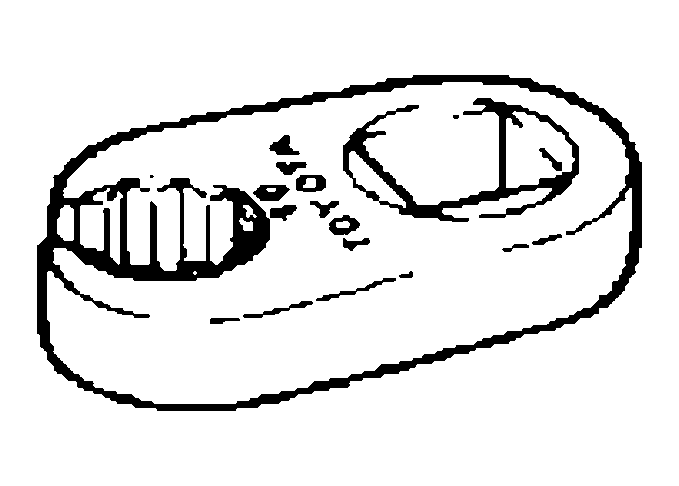

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	09023-00101	Union Nut Wrench 10 mm

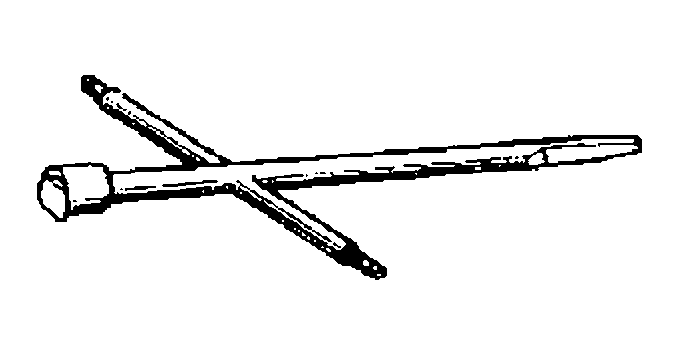

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	09703-30010	Brake Shoe Return Spring Tool

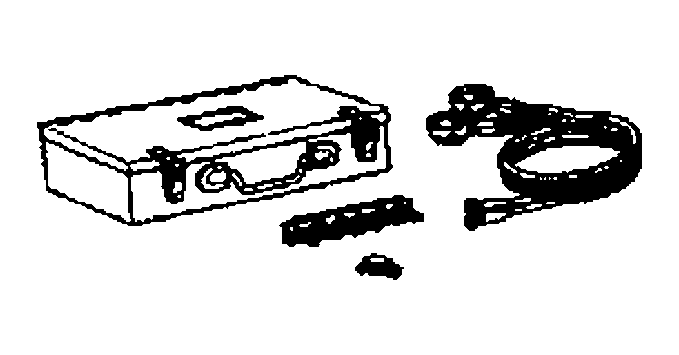

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	09709-29018	LSPV Gauge Set

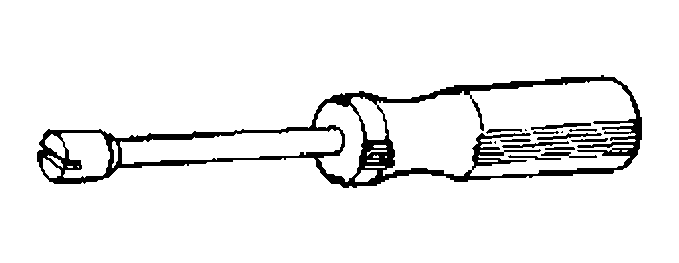

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	09718-00010	Shoe Hold Down Spring Driver
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	09737-00013	Brake Booster Push Rod Gauge

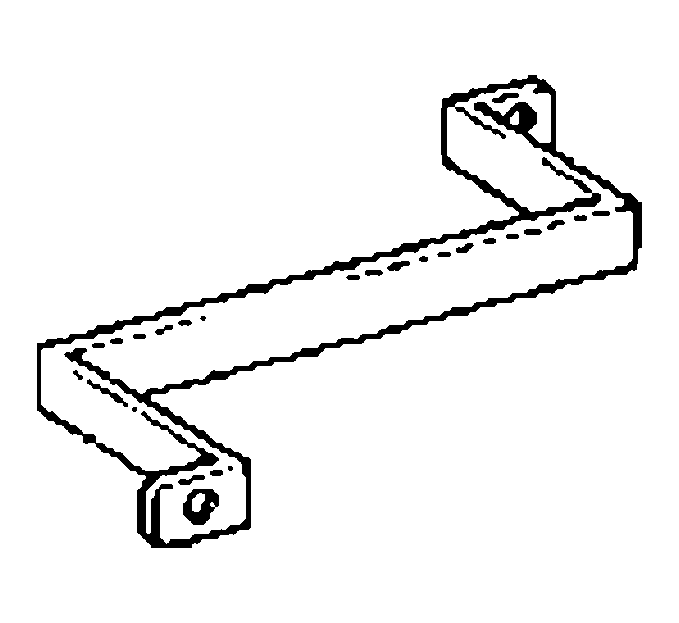

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	09737-00020	Brake Booster Push Rod Wrench

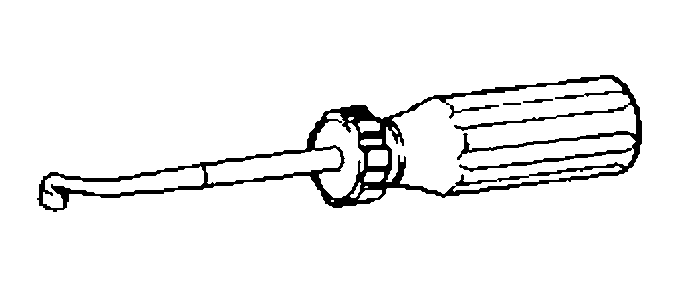

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	09921-00010	Spring Tension Tool
