2006 Toyota Matrix Base, FWD, AutomaticFACTORY OEM SERVICE PROCEDURE
2ZZ-GE Engine Mechanical: SST
2ZZ-GE ENGINE MECHANICAL SPECIAL SERVICE TOOL
| 09032-00100 | Oil Pan Seal Cutter | |

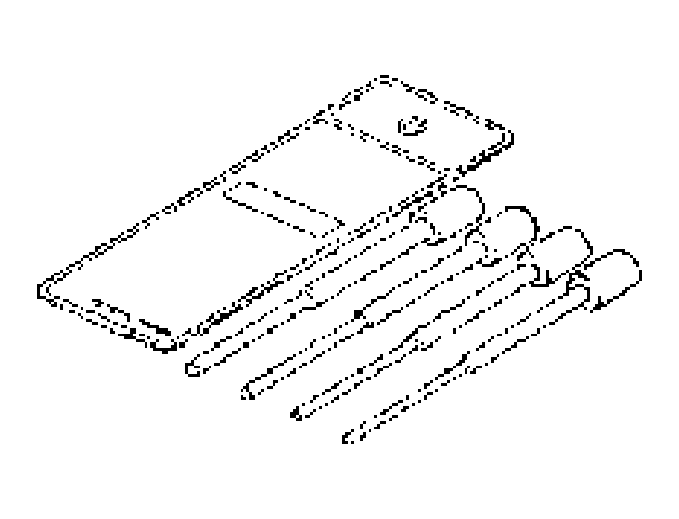

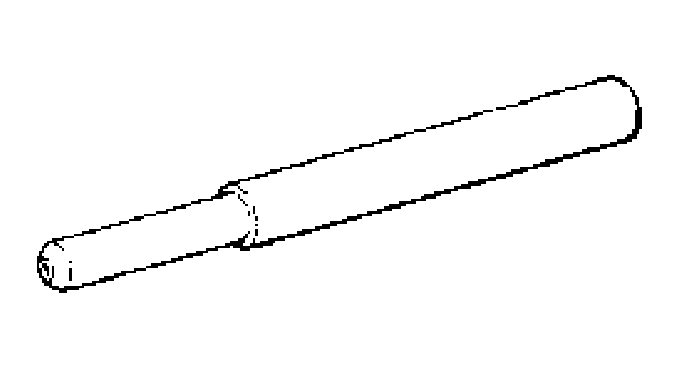

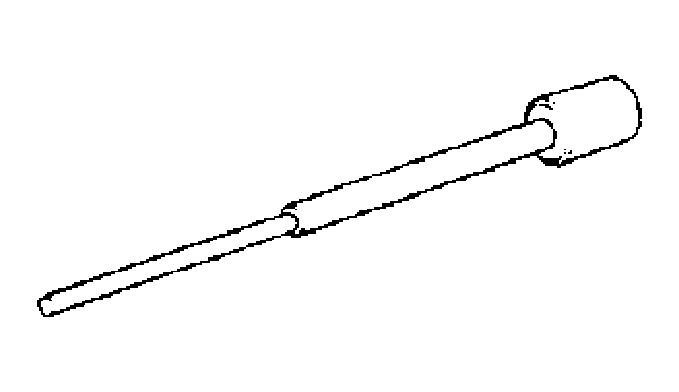

| 09201-01055 | Valve Guide Bushing Remover & Replacer 5.5 | |

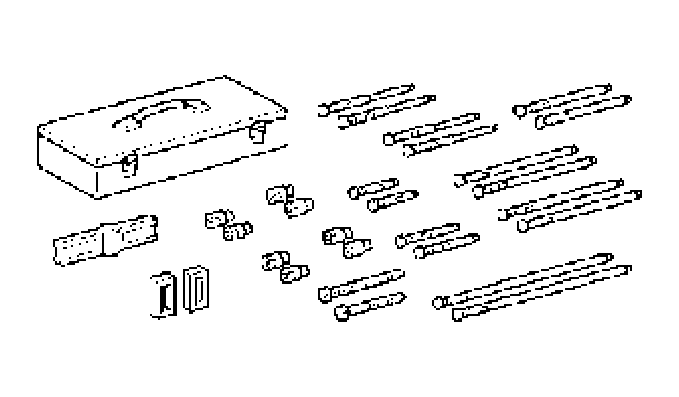

| 43 | 09201-10000 Valve Guide Bushing Remover & Replacer Set | |

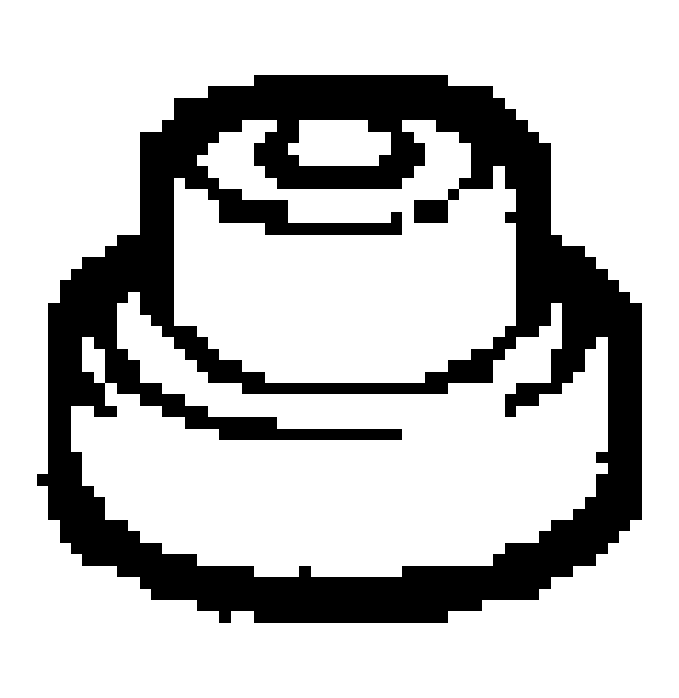

| 09201-41020 | Valve Stem Oil Seal Replacer | |

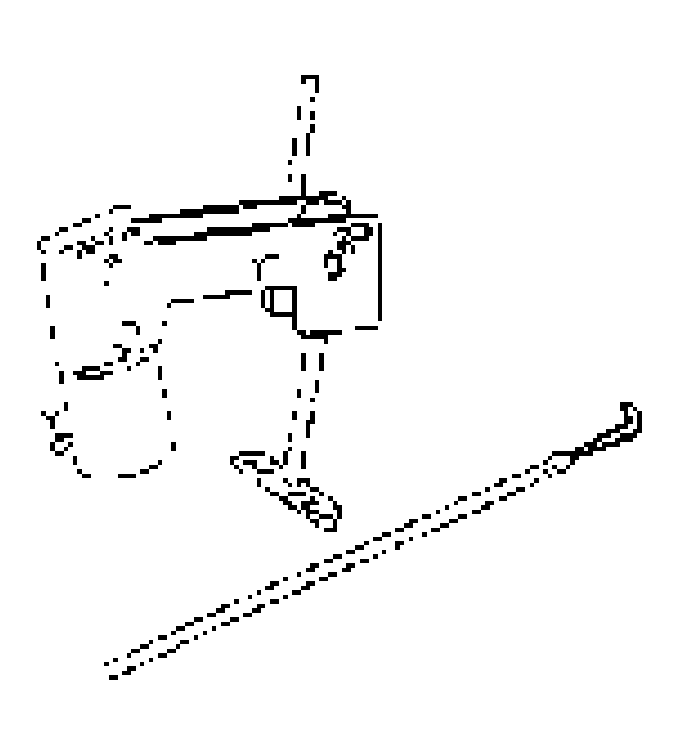

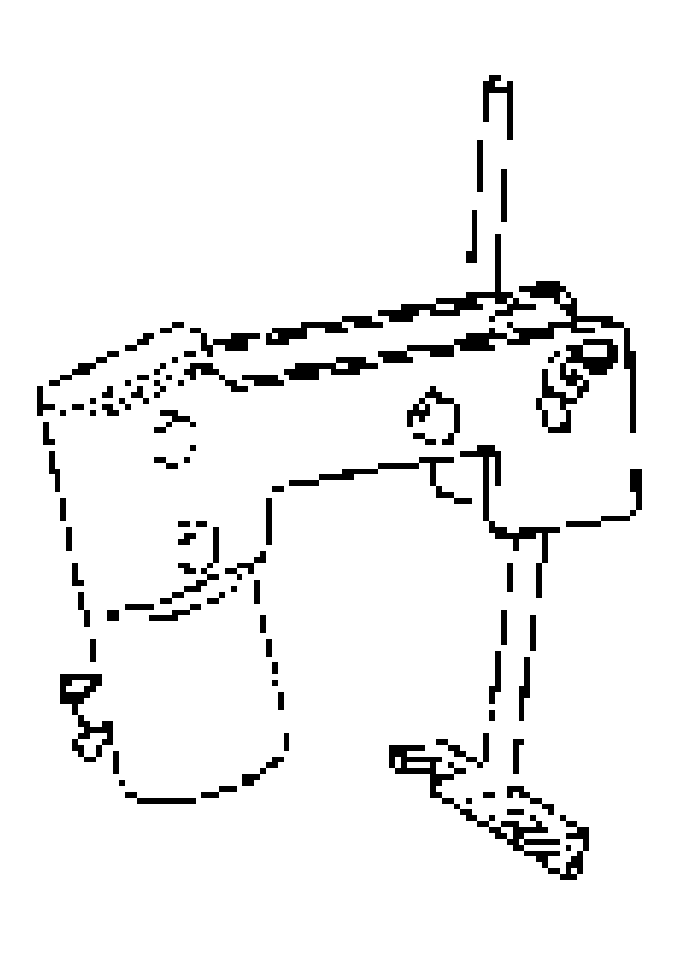

| 09202-70020 | Valve Spring Compressor | |

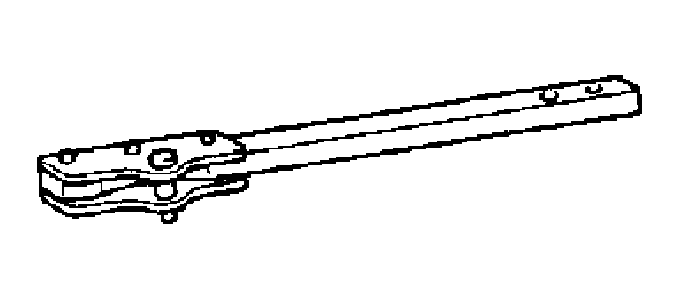

| 09205-16010 | Cylinder Head Bolt Wrench | |
| 09213-70011 | Crankshaft Pulley Holding Tool | |

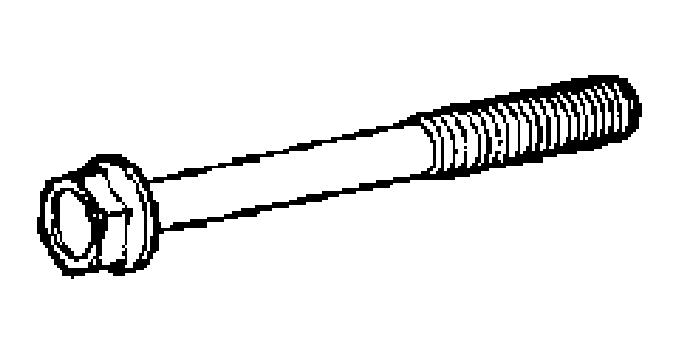

| (09213-70020) | Bolt | |
| 09223-15030 | Oil Seal & Bearing Replacer | |
| 09223-22010 | Crankshaft Front Oil Seal Replacer | |

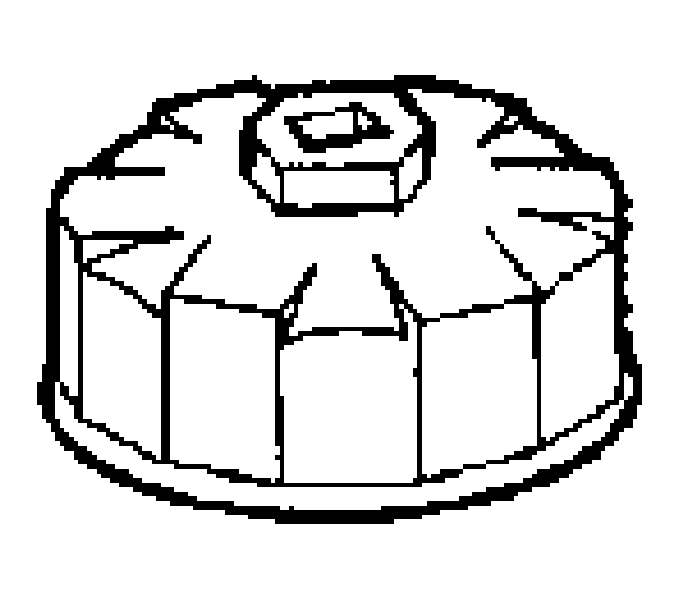

| 09228-06501 | Oil Filter Wrench | |

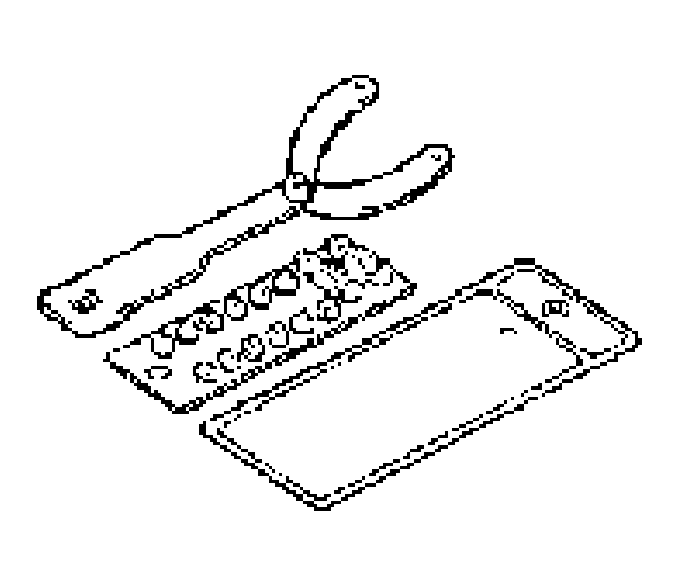

| 09248-77010 | Valve Clearance Adjusting Compressor Set | |
| (09248-07010) | Valve Clearance Adjusting Compressor | |
| 09330-00021 | Companion Flange Holding Tool | |
| 09628-62011 | Boll Joint Puller | |
| 09670-00010 | Front Crossmember Guide Tool | |

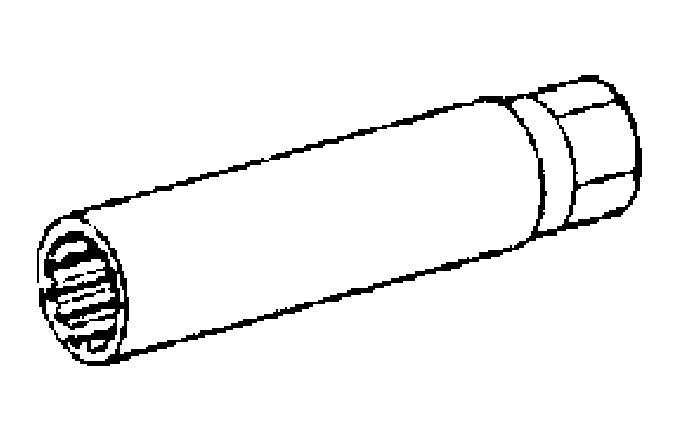

| 09817-33190 | Sensor Socket Wrench | |

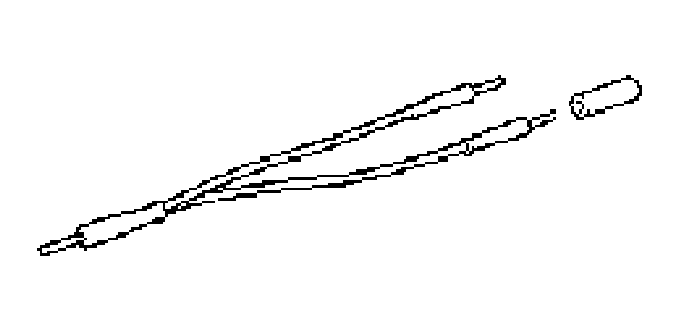

| 09843-18040 | Diagnosis Check Wire No.2 | |

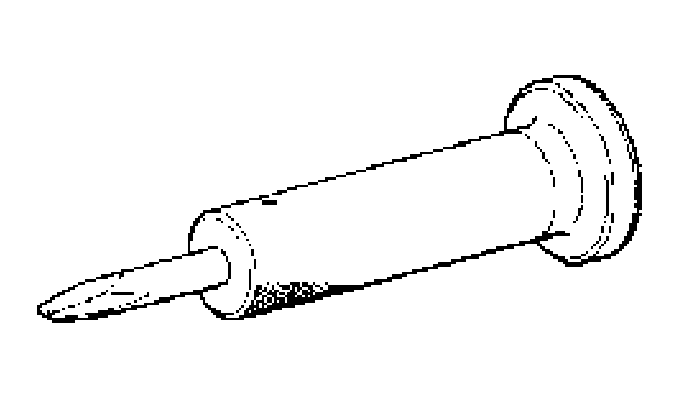

| 09930-00010 | Drive Shaft Nut Chisel | |

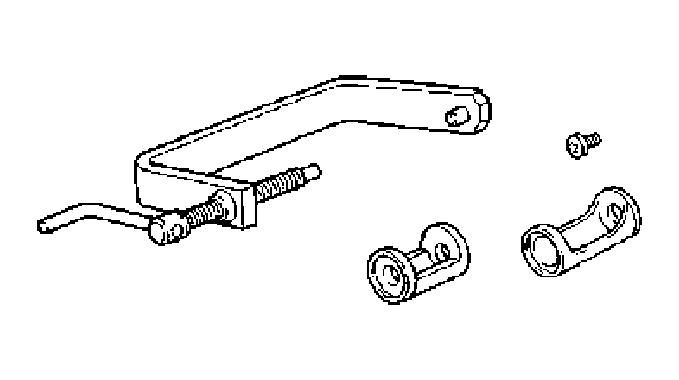

| 09950-50013 | Puller C Set | |
| (09951-05010) | Hanger 150 | |

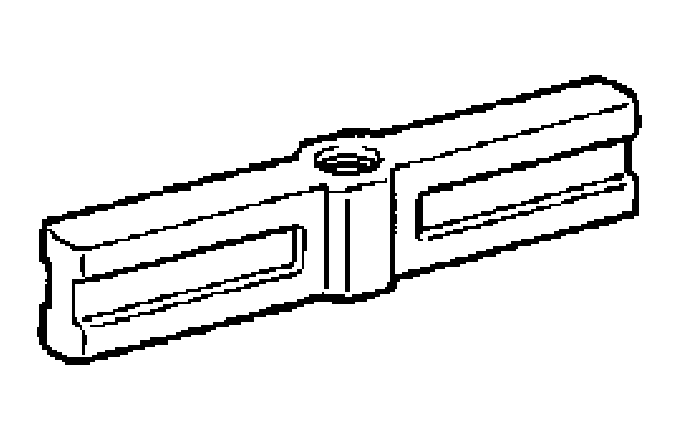

| (09952-05010) | Slide Arm | |

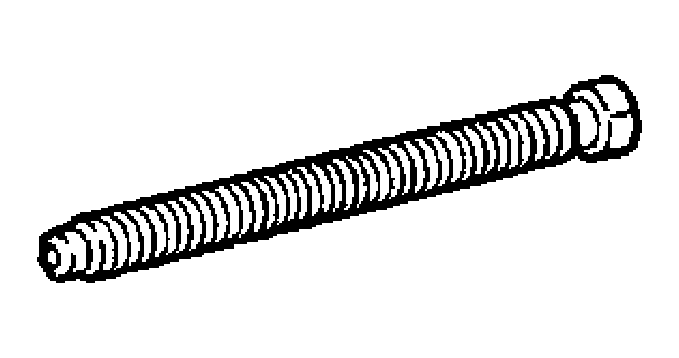

| (09953-05020) | Center Bolt 150 | |
| (09954-05021) | Claw No.2 | |
| (09957-04010) | Attachment | |

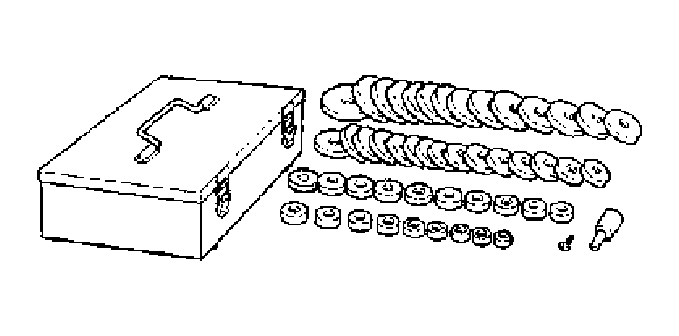

| 09950-60010 | Replacer Set | |

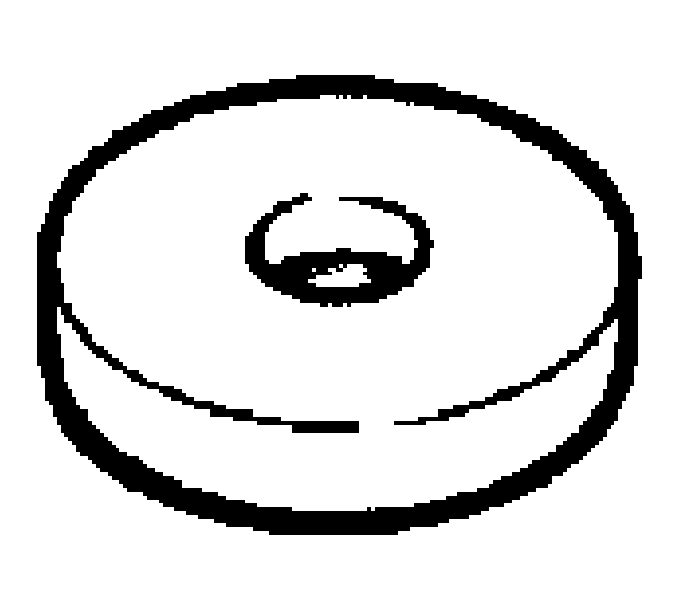

| (09951-00250) | Replacer 25 | |
| (09951-00350) | Replacer 35 | |
| (09951-00450) | Replacer 45 | |
| 09950-70010 | Handle Set | |
| (09951-07100) | Handle 100 | |

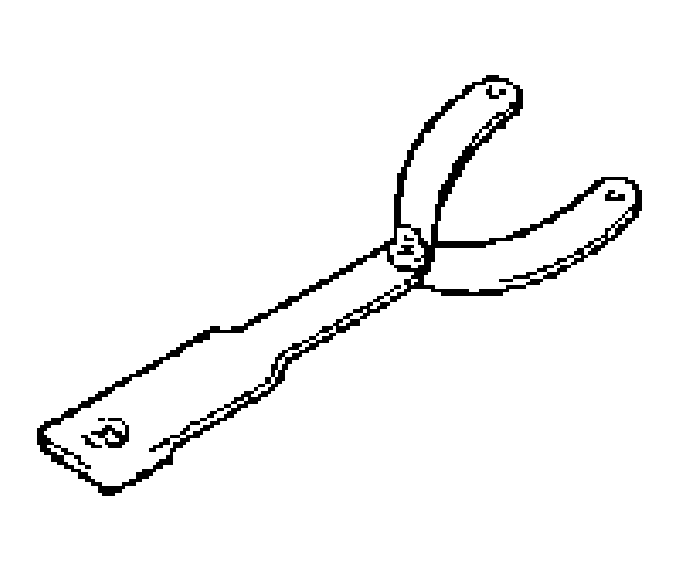

| 09960-10010 | Variable Pin Wrench Set | |
| (09962-01000) | Variable Pin Wrench Arm Assembly | |

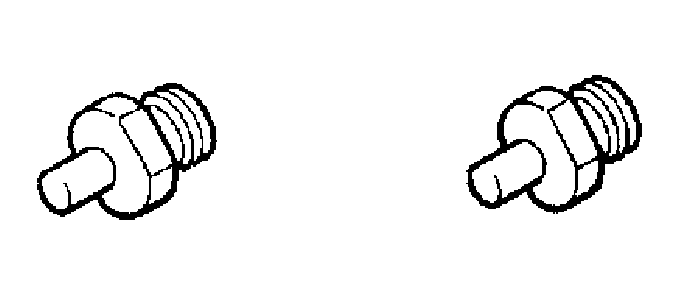

| (09963-00600) | Pin 6 | |
| 09992-00500 | Compression Gauge Attachment |
