2006 Toyota Matrix Base, FWD, AutomaticFACTORY OEM SERVICE PROCEDURE

2ZZ-GE Charging: SST

2ZZ-GE CHARGING SPECIAL SERVICE TOOL

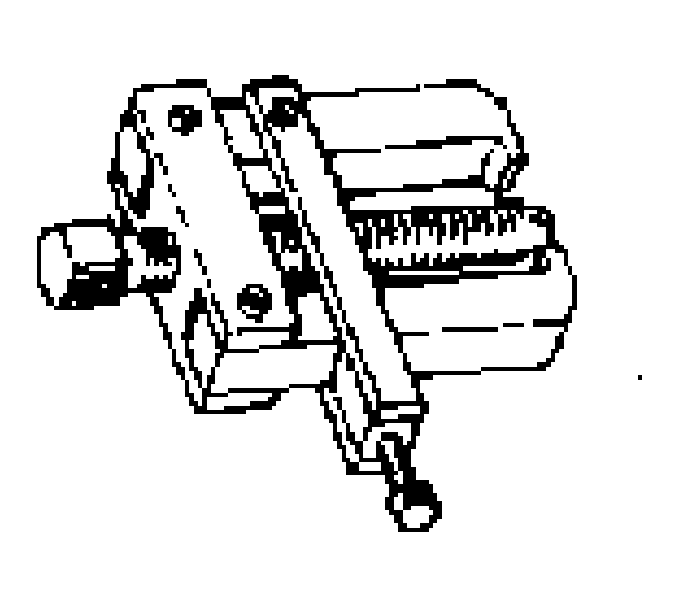

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	09286-46011	Injection Pump Spline Shaft Puller

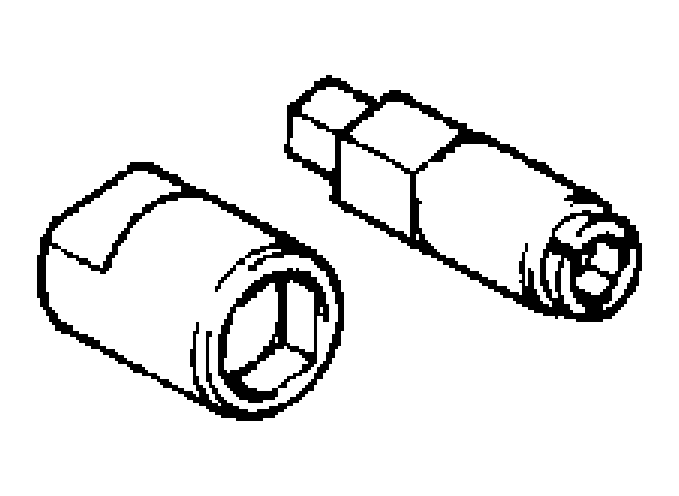

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	09820-63010	Alternator Pulley Set Nut Wrench Set

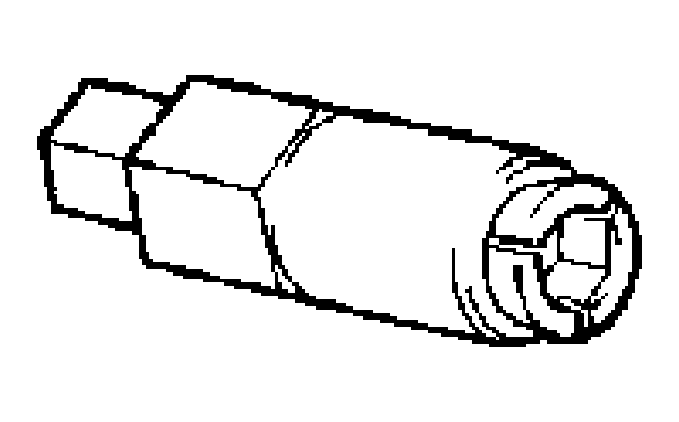

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	(09820-06010)	Alternator Rotor Shaft Wrench

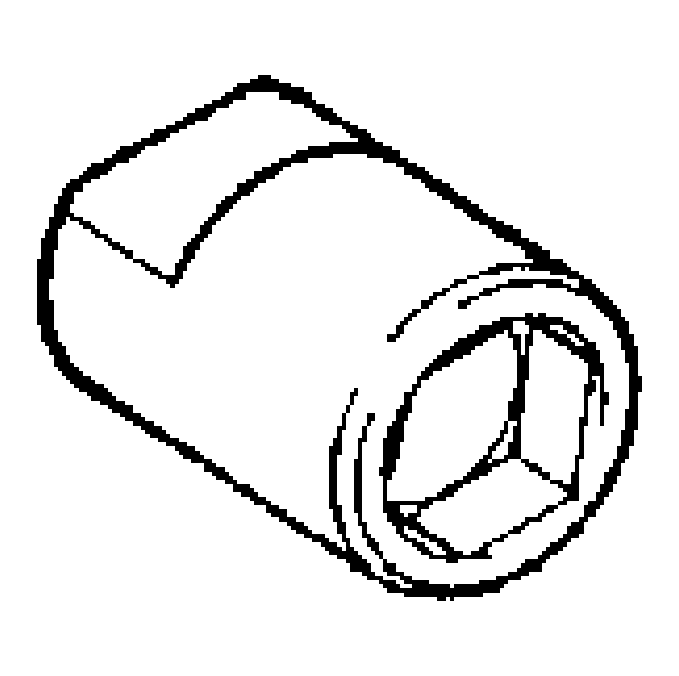

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	(09820-06020)	Alternator Pulley Set Nut 22 mm Wrench
