2006 Toyota Matrix Base, FWD, AutomaticFACTORY OEM SERVICE PROCEDURE
1ZZ-FE Charging: SST
1ZZ-FE CHARGING SPECIAL SERVICE TOOL

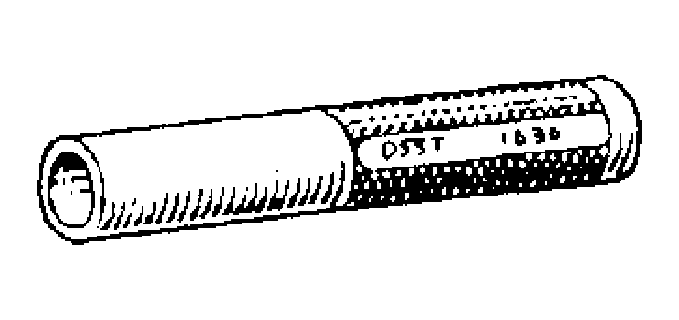

| 09285-76010 | Injection Pump Camshaft Bearing Cone Replacer | |
| 09286-46011 | Injection Pump Spline Shaft Puller | |

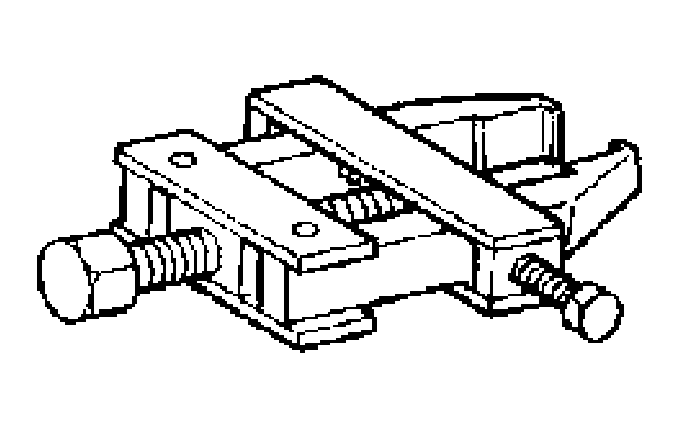

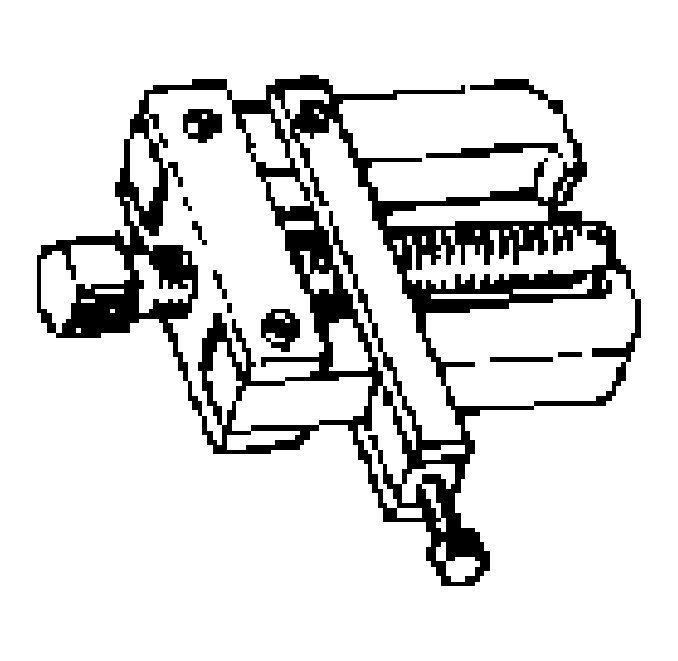

| 09820-00021 | Alternator Rear Bearing Puller | |

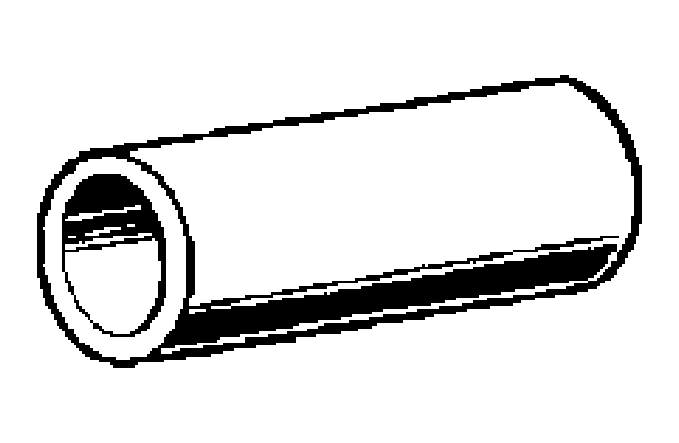

| 09820-00031 | Alternator Rotor Rear Bearing Replacer | |

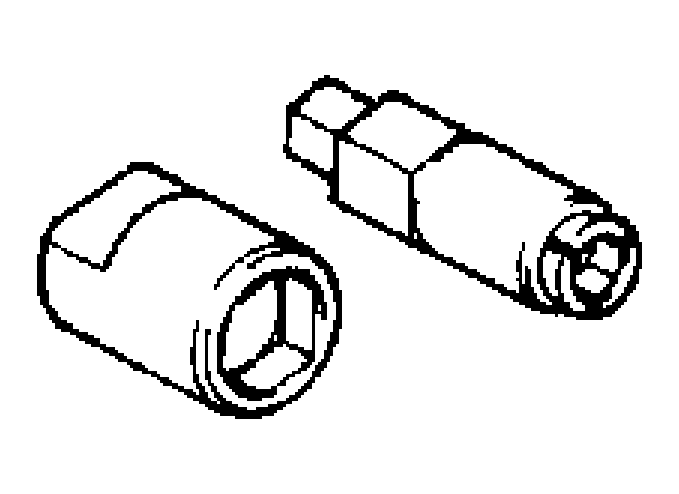

| 09820-63010 | Alternator Pulley Set Nut Wrench Set | |

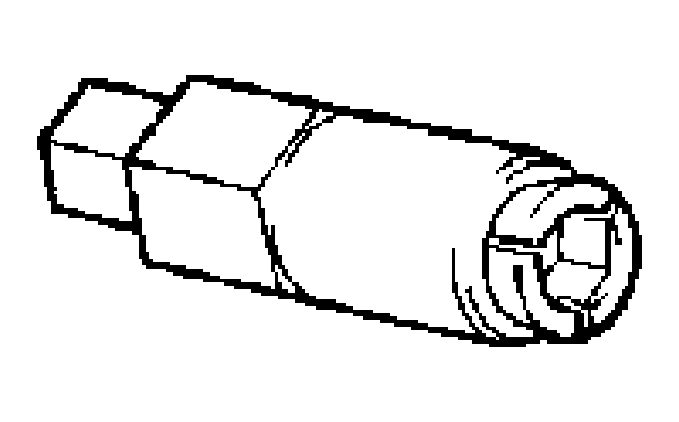

| (09820-06010) | Alternator Rotor Shaft Wrench | |

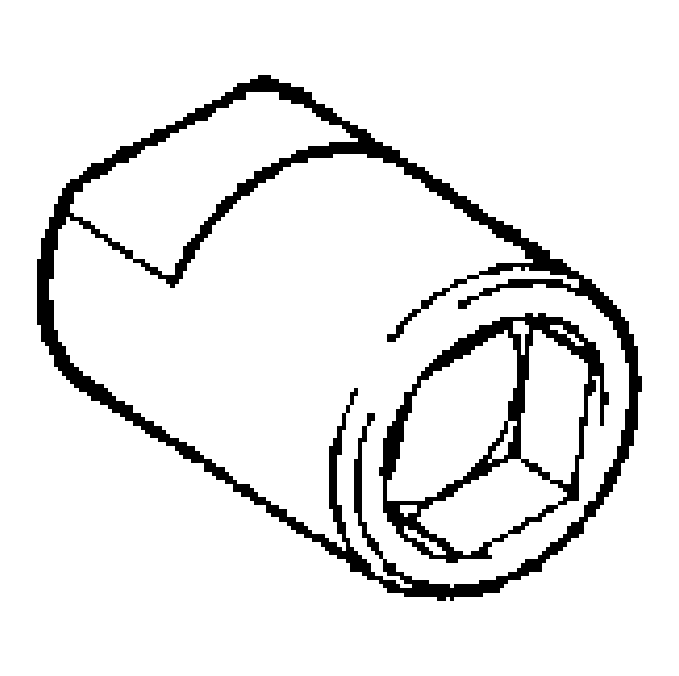

| (09820-06020) | Alternator Pulley Set Nut 22 mm Wrench | |

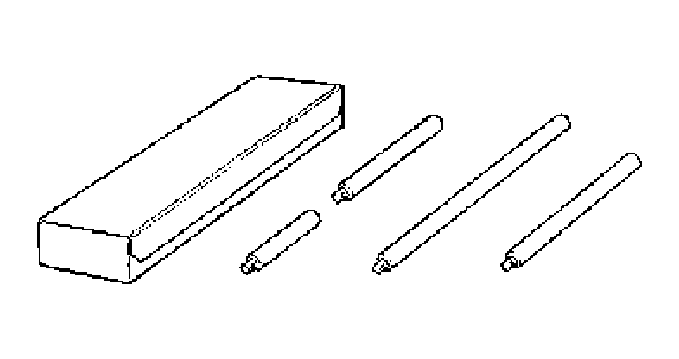

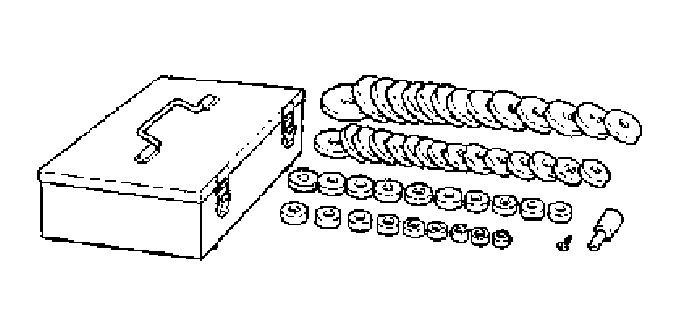

| 09950-60010 | Replacer Set | |

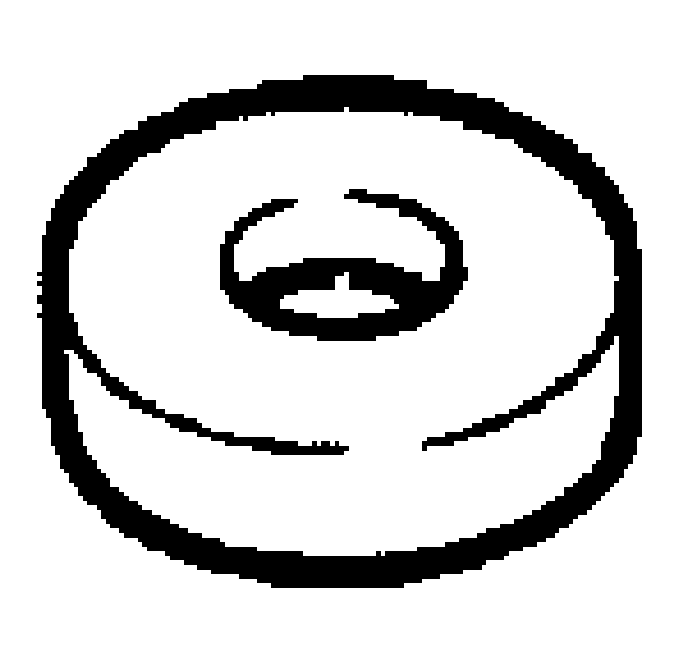

| (09951-00350) | Replacer 35 | |

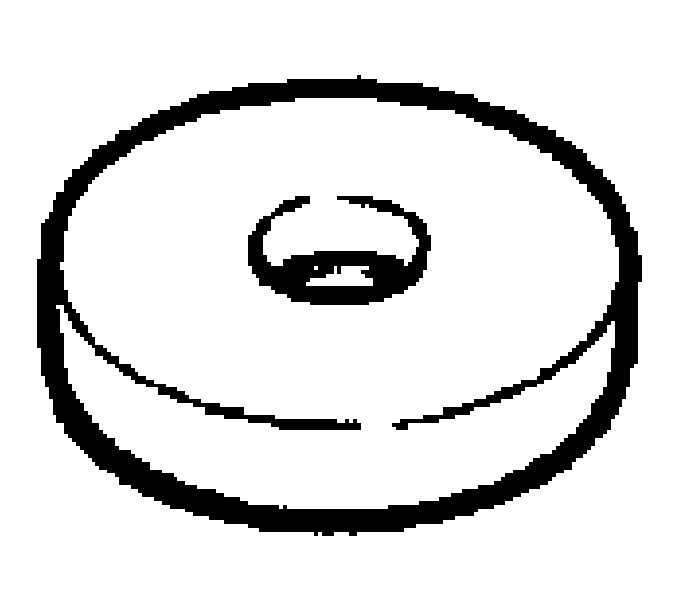

| (09951-00530) | Replacer 53 | |
| 09950-70010 | Handle Set | |

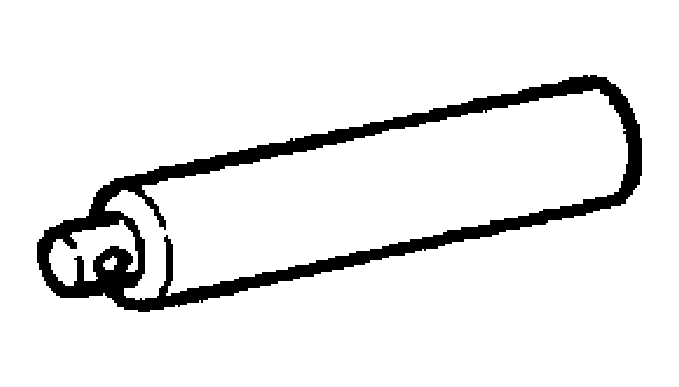

| (09951-07100) | Handle 100 |
