2006 Toyota Matrix Base, 4WDFACTORY OEM SERVICE PROCEDURE
1ZZ-FE Fuel: SST
1ZZ-FE FUEL SPECIAL SERVICE TOOL

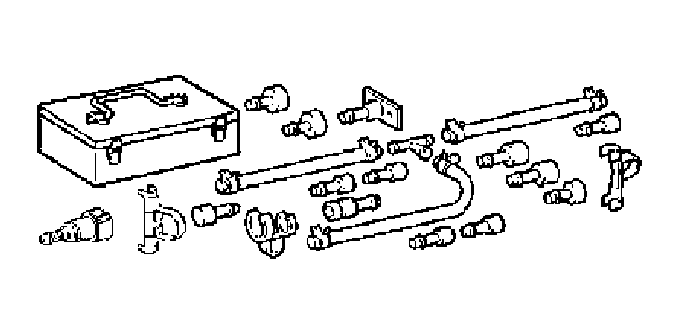

| 09268-31011 | Injection Measuring Tool Set | |

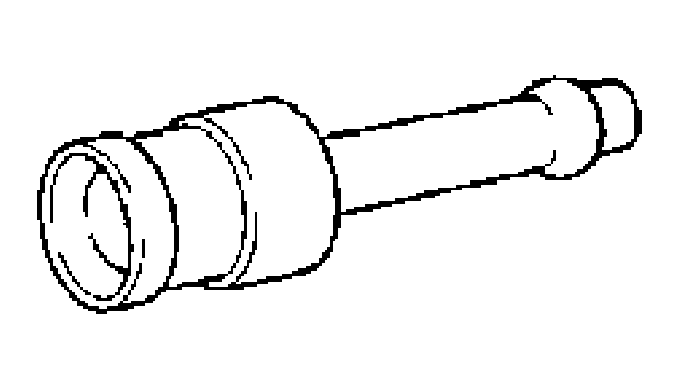

| (09268-41110) | Adaptor | |

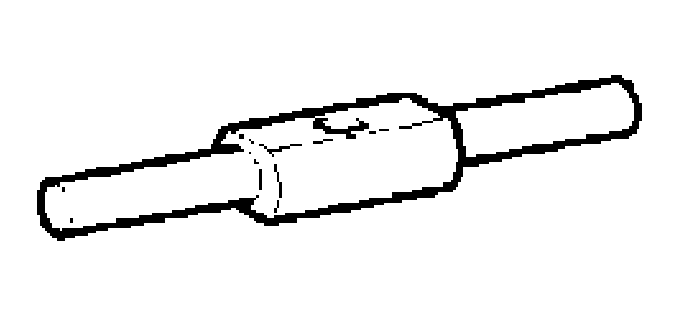

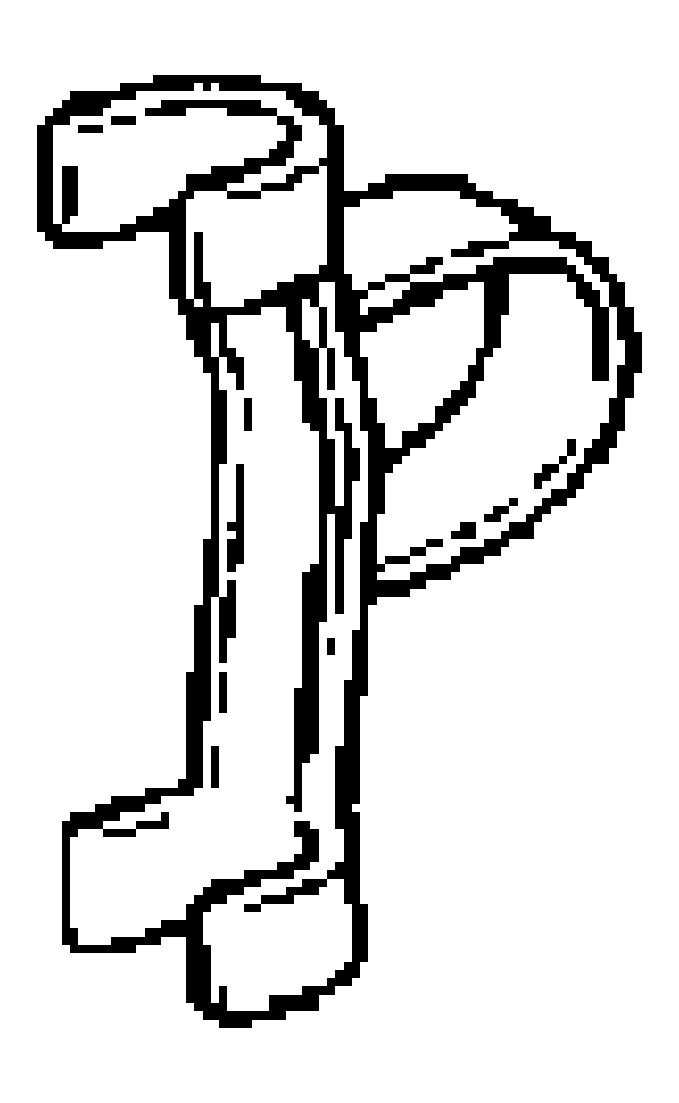

| (09268-41300) | Clamp | |

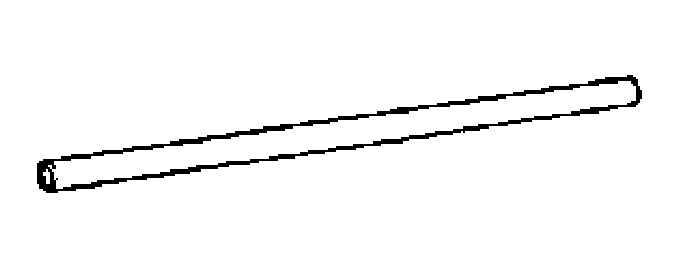

| (95336-08070) | Hose | |

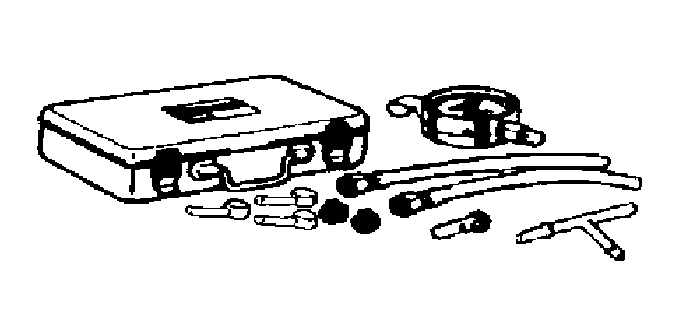

| 09268-45014 | EFI Fuel Pressure Gauge | |

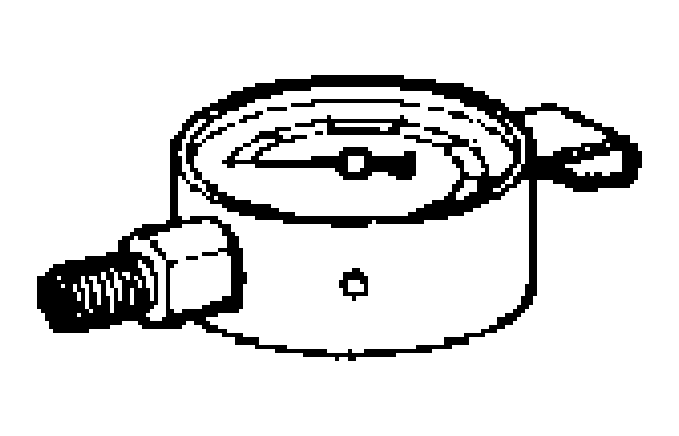

| (09268-41200) | Gauge | |

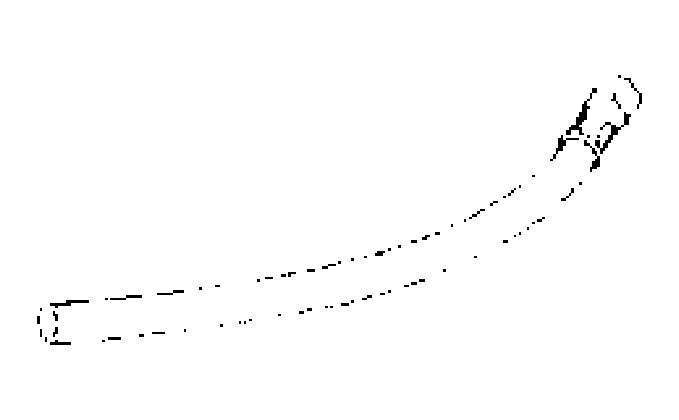

| (09268-41220) | Hose | |

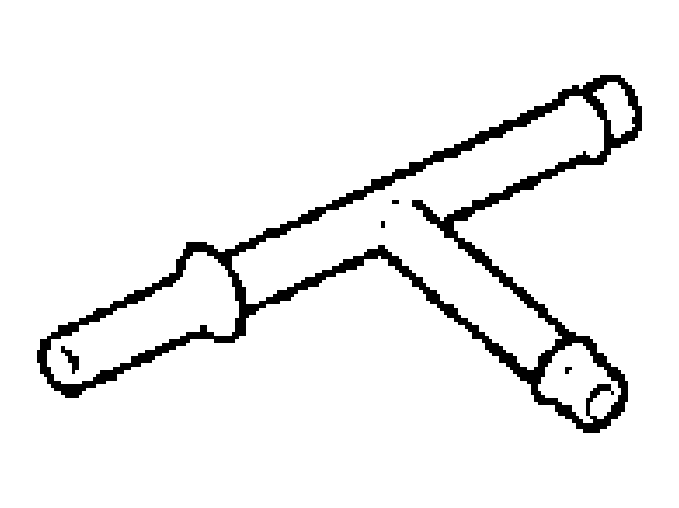

| (09268-41250) | T Joint | |

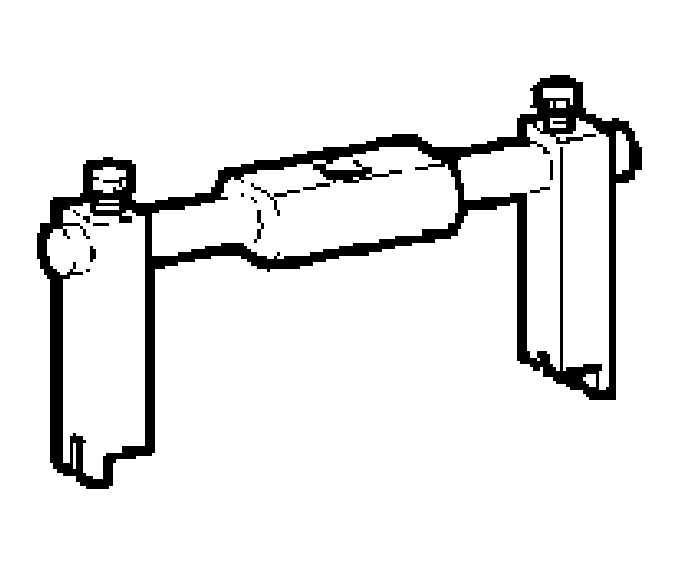

| 09808-14020 | Retainer Tool, Fuel Pump | |
| (09808-01410) | Holder | |

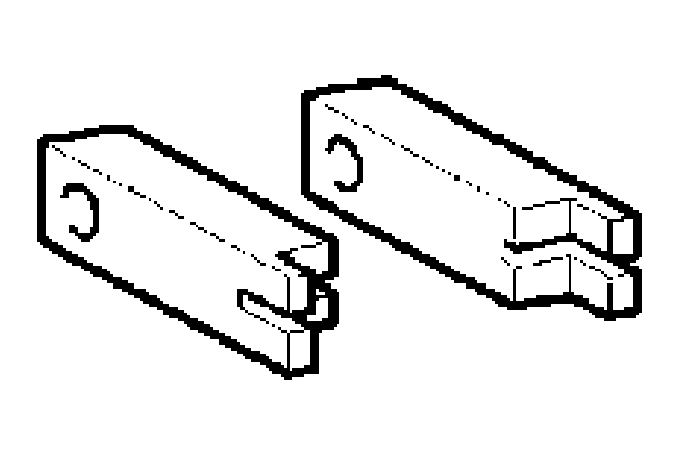

| (09808-01420) | Claw | |

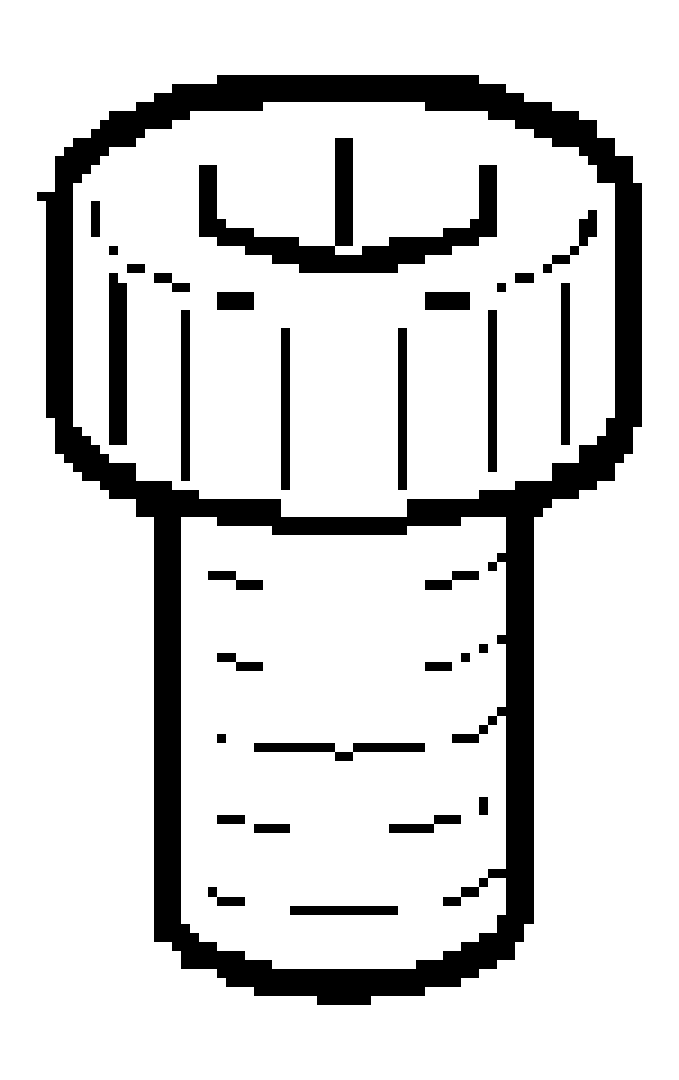

| (09808-01430) | Bolt | |

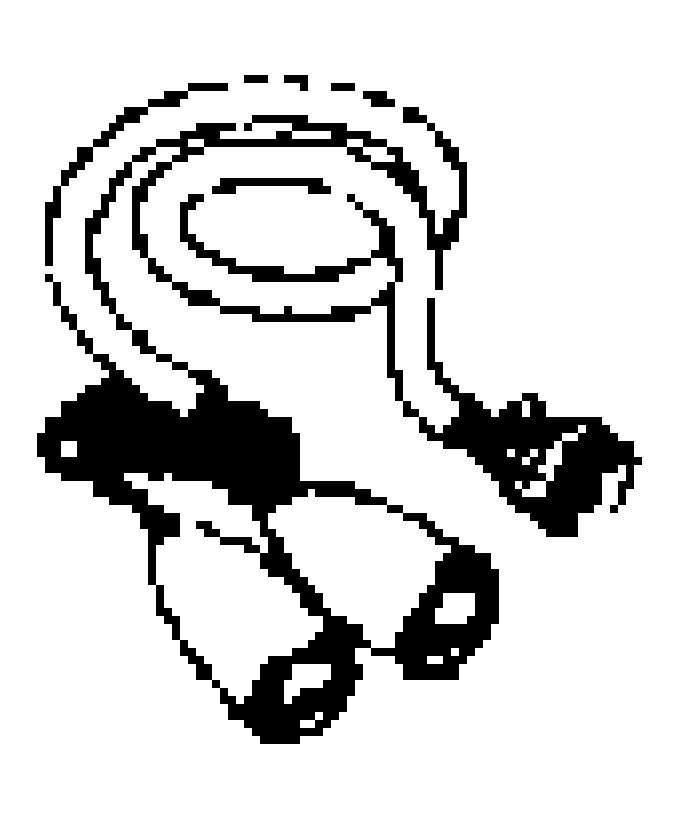

| 09842-30080 | Wire H EFI Inspection |
