2006 Toyota Matrix Base, 4WDFACTORY OEM SERVICE PROCEDURE
Rear Power Window Switch: Inspection
- INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY (for Rear Side)Â

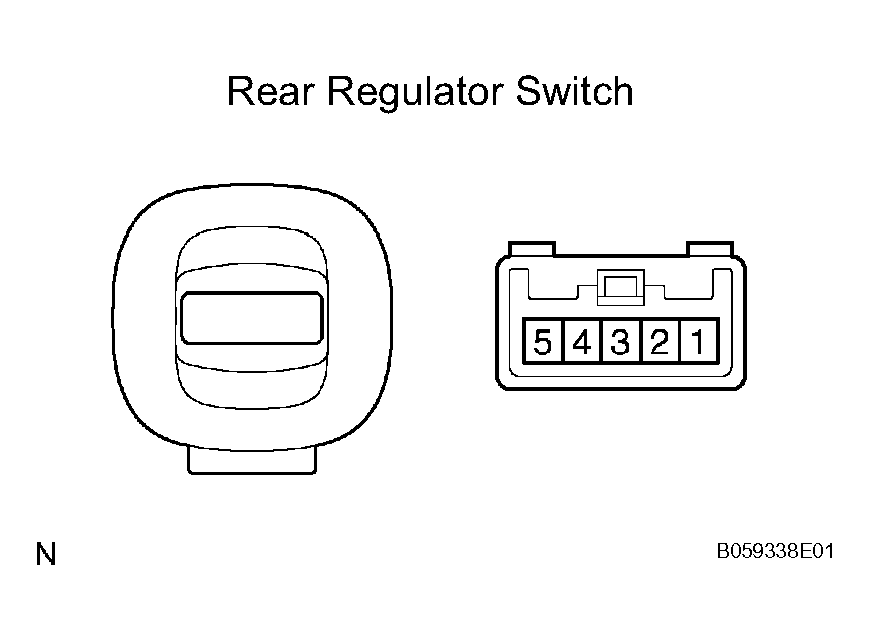

- Measure the resistance of the rear regulator switch.
Standard resistanceÂ
TERMINAL CONNECTION AND SPECIFIED CONDITION REFERENCESwitch Condition Terminal Connection Specified Condition UP SD (1) - D (2) Below 1 Ω B (3) - U (4) OFF SD (1) - D (2) Below 1 Ω U (4) - SU (5) DOWN D (2) - B (3) Below 1 Ω U (4) - SU (5) If the result is not as specified, replace the regulator switch.
- Measure the resistance of the rear regulator switch.
