2006 Toyota Highlander Limited, FWDFACTORY OEM SERVICE PROCEDURE

Engine Control System (3MZ-FE) (Except Hybrid): ECM: Installation

INSTALL ECM BRACKET NO.2
1. Install the ECM bracket with the 2 screws.

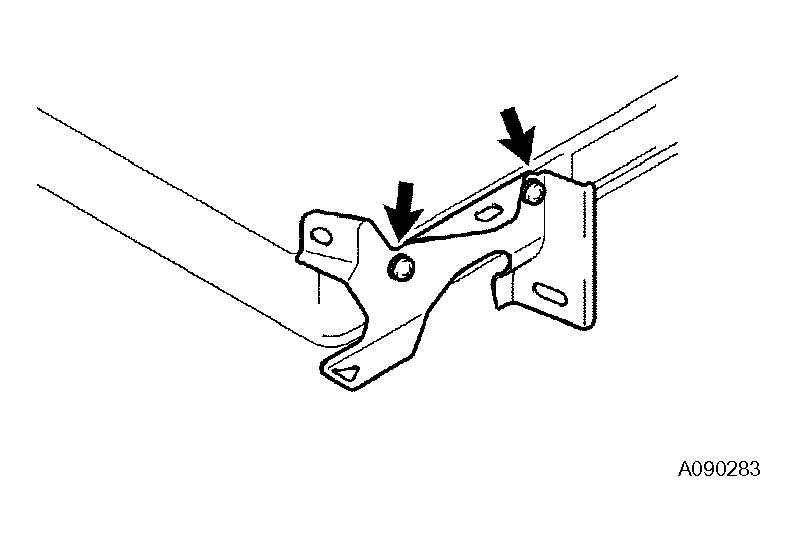

  Fig 1: Installing ECM Bracket With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ECM BRACKET NO.1
1. Install the ECM bracket with the 2 screws.

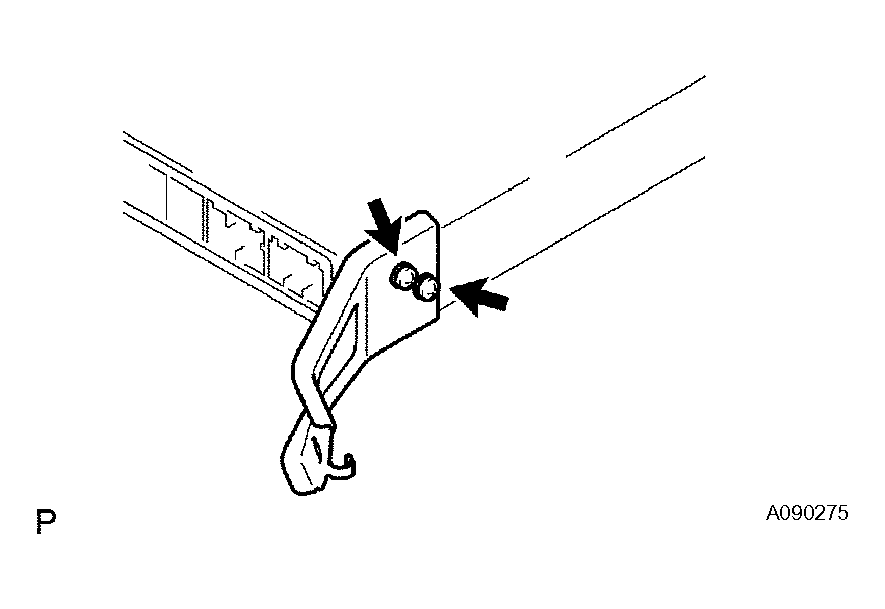

  Fig 2: Installing ECM Bracket With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ECM
1. Install the 2 wire harness clamps.
2. Connect the 5 ECM connectors.
3. Install the ECM with the 2 nuts.
  Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)
INSTALL INSTRUMENT PANEL FINISH PANEL LOWER NO.2
INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH

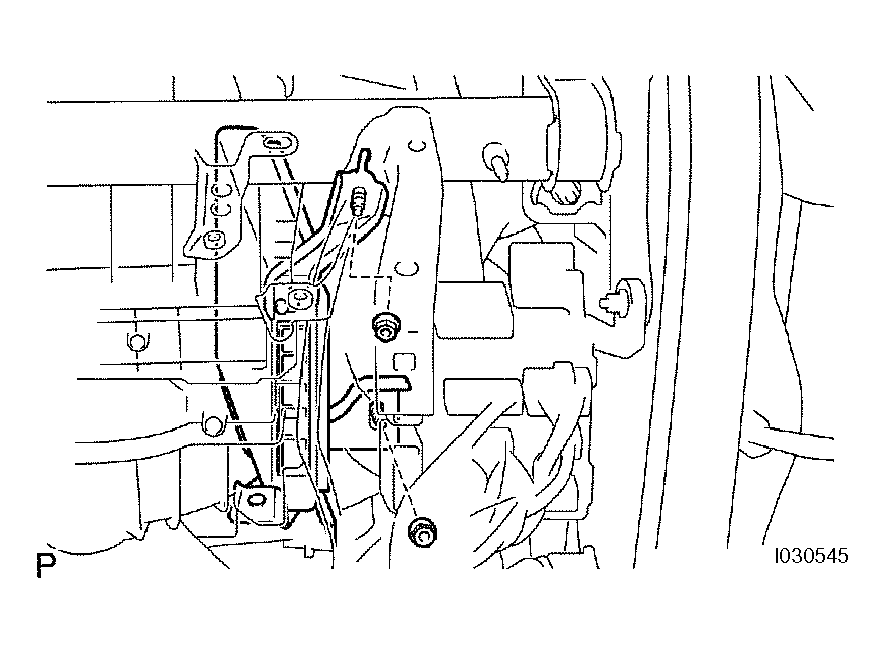

Fig 3: Installing ECM With Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT DOOR SCUFF PLATE RH
CONNECT BATTERY NEGATIVE TERMINAL
