2006 Toyota Camry Base, StandardFACTORY OEM SERVICE PROCEDURE
Instrument Panel/Meter: Preparation
SST
INSTRUMENT PANEL/METER - SST CHART

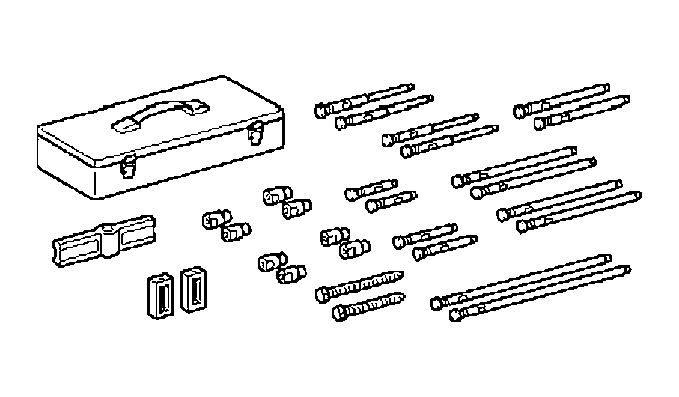

| 09950-50013 Puller C Set | INSTRUMENT PANEL SAFETY PAD SUB-ASSY | |

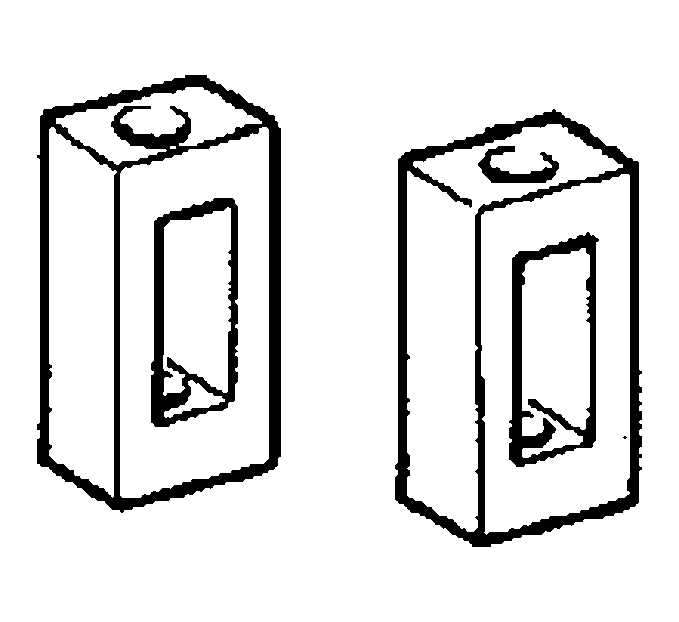

| (09951-05010) Hanger 150 | INSTRUMENT PANEL SAFETY PAD SUB-ASSY | |

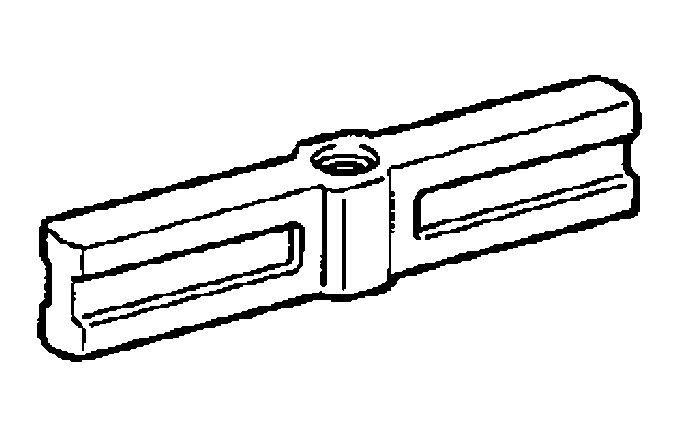

| (09952-05010) Slide Arm | INSTRUMENT PANEL SAFETY PAD SUB-ASSY | |

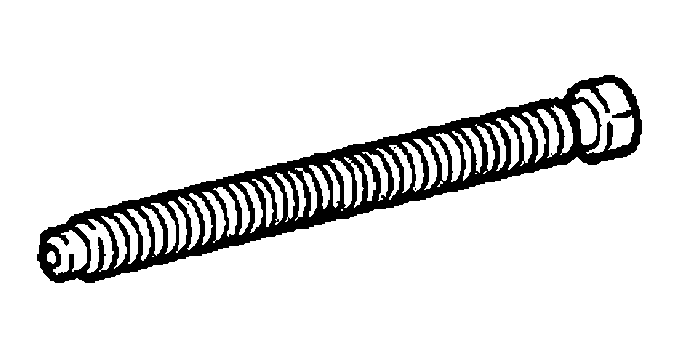

| (09953-05020) Center Bolt 150 | INSTRUMENT PANEL SAFETY PAD SUB-ASSY | |

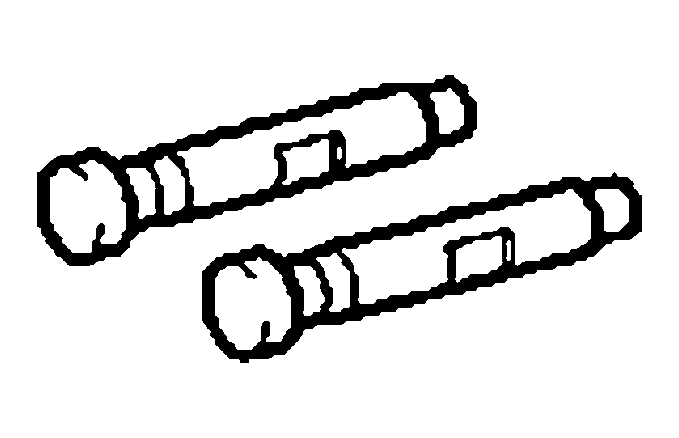

| (09954-05021) Claw No.2 | INSTRUMENT PANEL SAFETY PAD SUB-ASSY |
Recommended Tools
INSTRUMENT PANEL/METER - RECOMMENDED TOOLS CHART

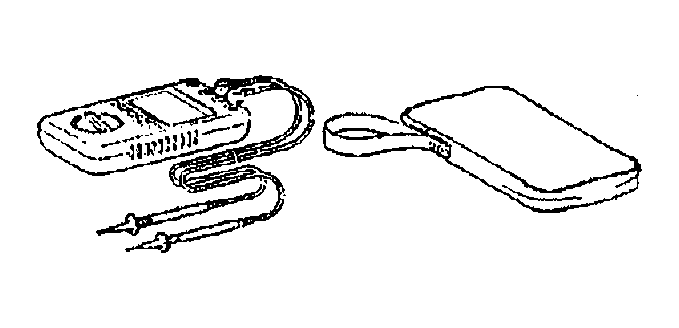

| 09082-00040 TOYOTA Electrical Tester | COMBINATION METER | |

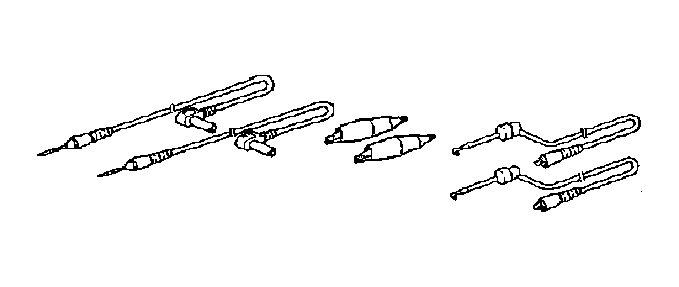

| (09083-00150) Test Lead Set | COMBINATION METER | |

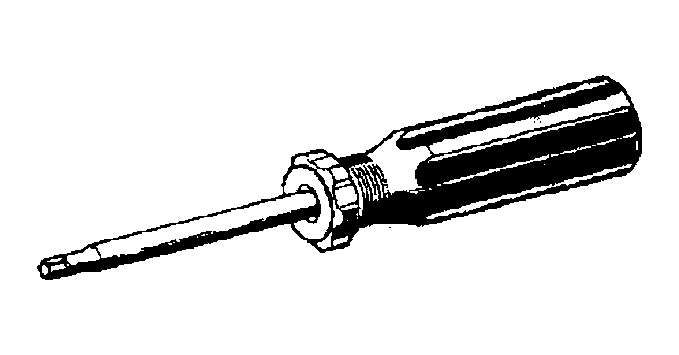

| 09041-00030 Torx Driver T30 | INSTRUMENT PANEL SAFETY PAD SUB-ASSY | |

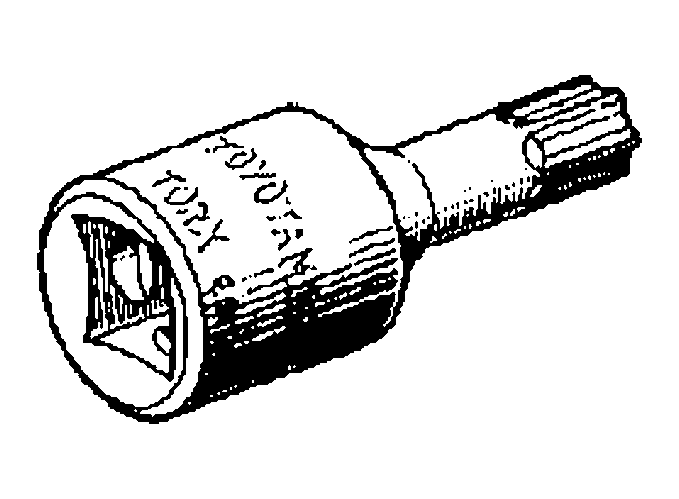

| 09042-00010 Torx Socket T30 | INSTRUMENT PANEL SAFETY PAD SUB-ASSY | |

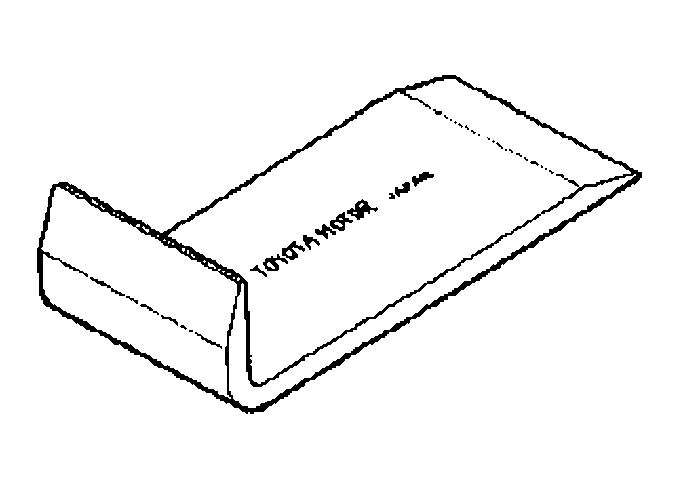

| 09070-20010 Moulding Remover | INSTRUMENT PANEL SAFETY PAD SUB-ASSY |
Torx is a registered trademark of Textron Inc.
Equipment
INSTRUMENT PANEL/METER - EQUIPMENT CHART
| Torque wrench | |
| Adhesive Tape |
