2006 Toyota Camry Base, StandardFACTORY OEM SERVICE PROCEDURE
Starting & Charging: Preparation
SST
STARTING & CHARGING - SST CHART

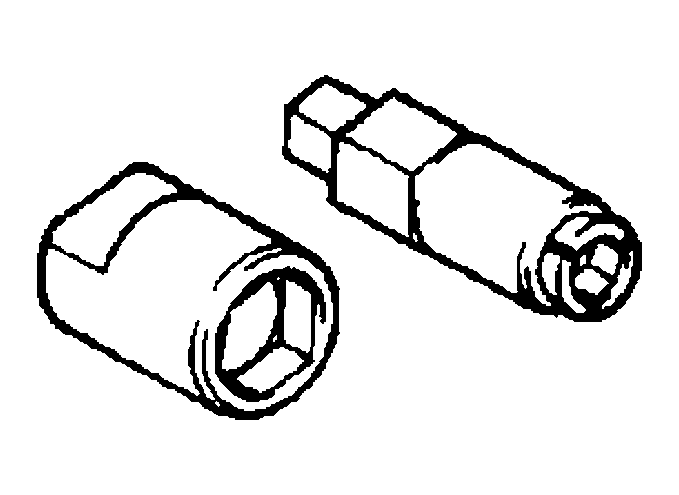

| 09820-63010 Alternator Pulley Set Nut Wrench Set | GENERATOR ASSY (2AZ-FE) (From July, 2003) GENERATOR ASSY (1MZ-FE/3MZ- FE) |
|
| (09820-06010) Alternator Rotor Shaft Wrench | GENERATOR ASSY (2AZ-FE) (From July, 2003) GENERATOR ASSY (1MZ-FE/3MZ-FE) |
|

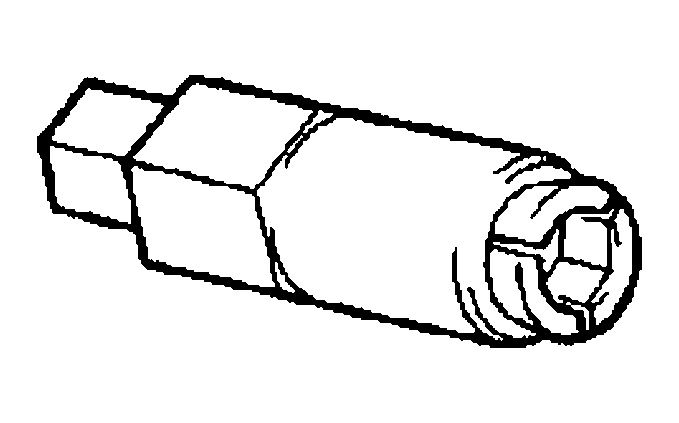

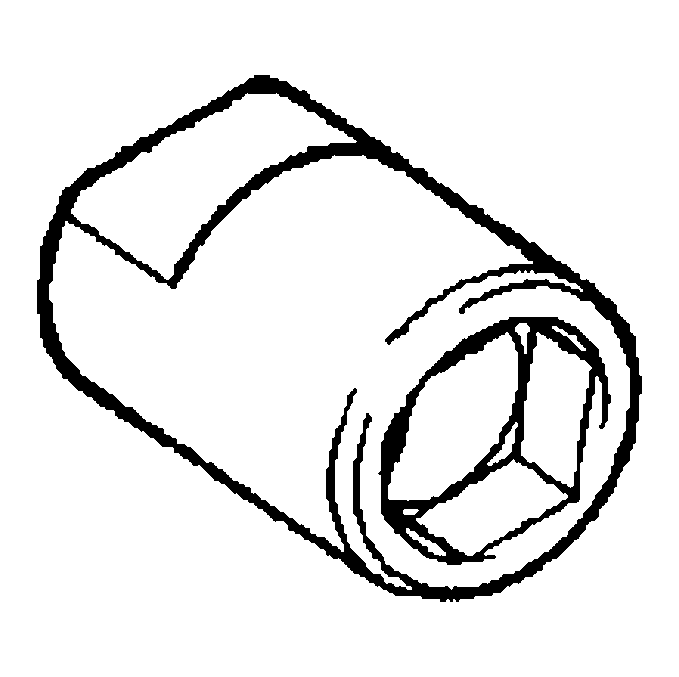

| (09820-06020) Alternator Pulley Set Nut 22 mm Wrench | GENERATOR ASSY (2AZ-FE) (From July, 2003) GENERATOR ASSY (1MZ-FE/3MZ-FE) |
|

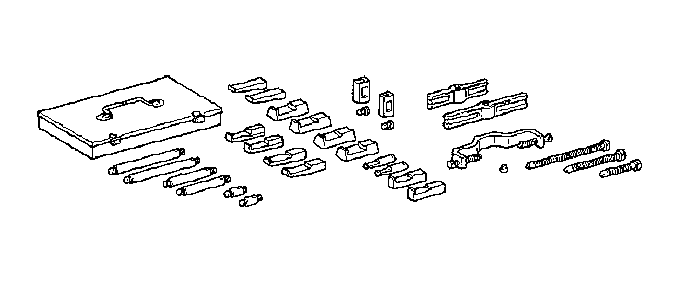

| 09950-40011 Puller B Set | GENERATOR ASSY (2AZ-FE) (From July, 2003) GENERATOR ASSY (1MZ-FE/3MZ- FE) |
|

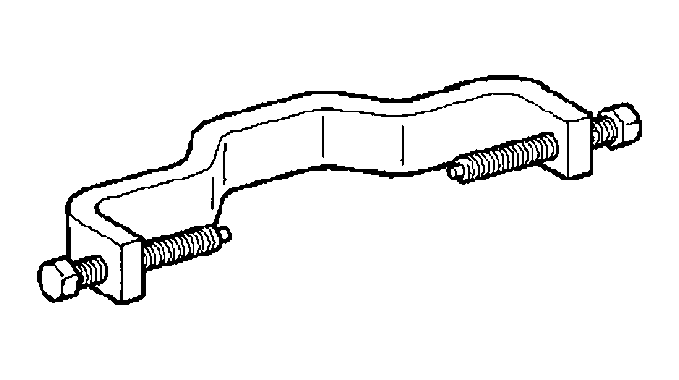

| (09951-04020) Hanger 200 | GENERATOR ASSY (2AZ-FE) (From July, 2003) GENERATOR ASSY (1MZ-FE/3MZ- FE) |
|
| (09952-04010) Slide Arm | GENERATOR ASSY (2AZ-FE) (From July, 2003) GENERATOR ASSY (1MZ-FE/3MZ- FE) |
|

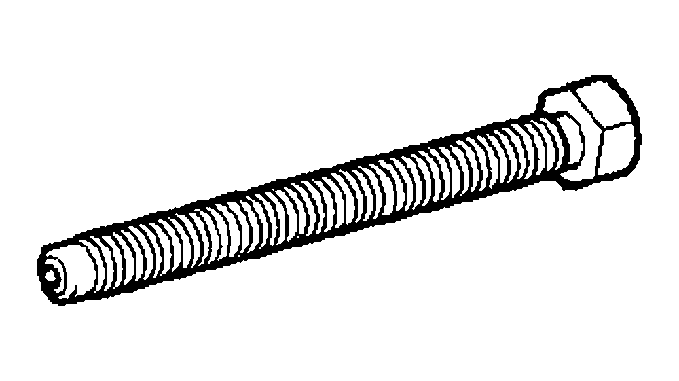

| (09953-04020) Center Bolt 150 | GENERATOR ASSY (2AZ-FE) (From July, 2003) GENERATOR ASSY (1MZ-FE/3MZ- FE) |
|

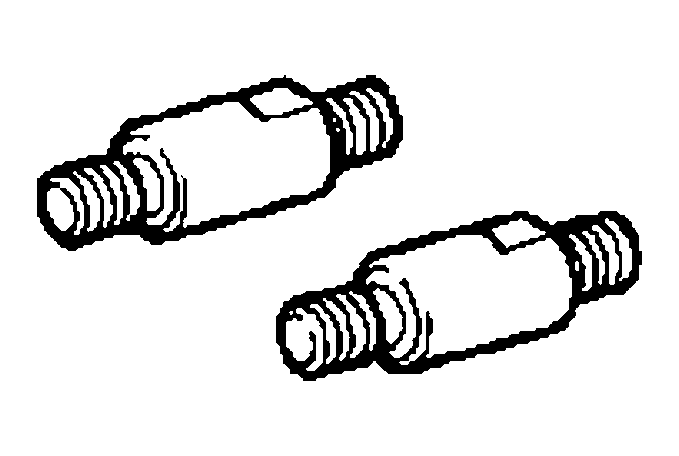

| (09954-04010) Arm 25 | GENERATOR ASSY (2AZ-FE) (From July, 2003) GENERATOR ASSY (1MZ-FE/3MZ- FE) |
|

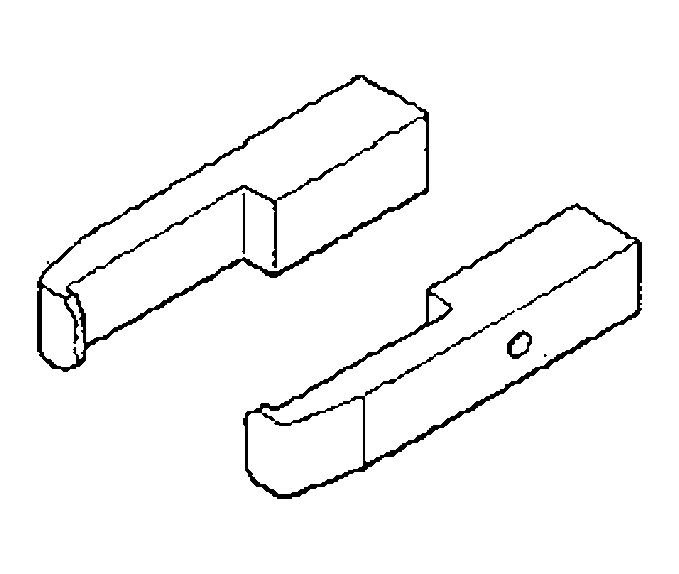

| (09955-04071) Claw No.7 | GENERATOR ASSY (2AZ-FE) (From July, 2003) GENERATOR ASSY (1MZ-FE/3MZ- FE) |
|
| (09957-04010) Attachment | GENERATOR ASSY (2AZ-FE) (From July, 2003) GENERATOR ASSY (1MZ-FE/3MZ- FE) |
|

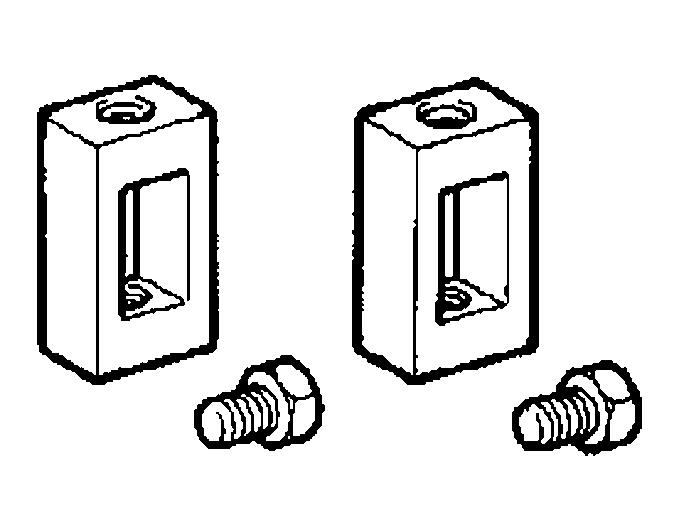

| (09958-04011) Holder | GENERATOR ASSY (2AZ-FE) (From July, 2003) GENERATOR ASSY (1MZ-FE/3MZ- FE) |
|

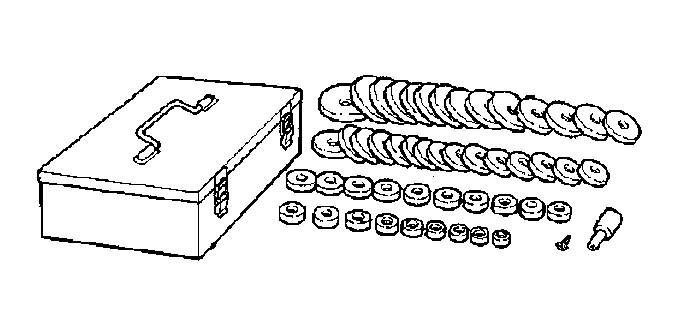

| 09950-60010 Replacer Set | GENERATOR ASSY (2AZ-FE) (From July, 2003) GENERATOR ASSY (1MZ-FE/3MZ-FE) |
|

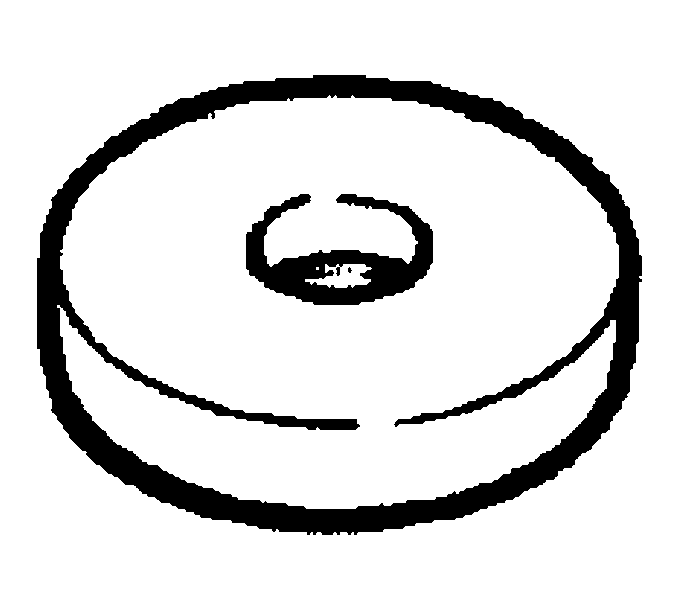

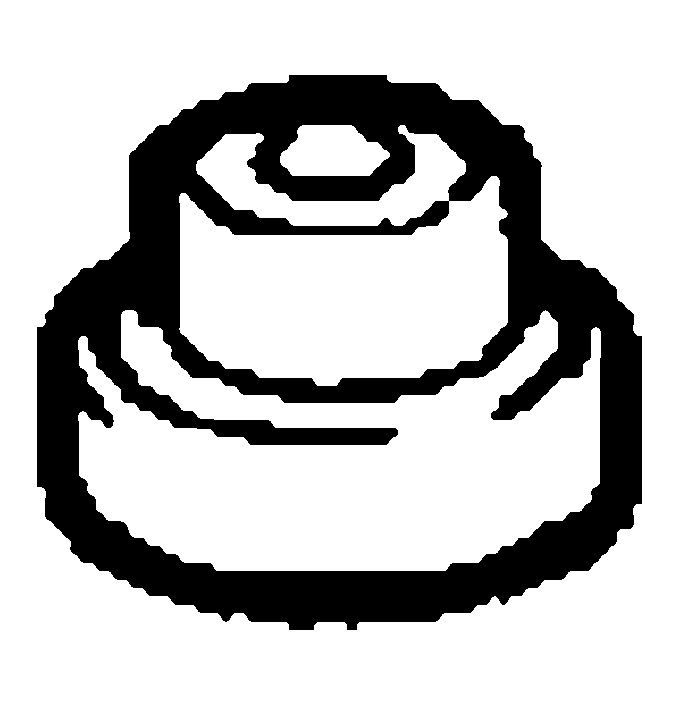

| (09951-00470) Replacer 47 | GENERATOR ASSY (2AZ-FE) (From July, 2003) GENERATOR ASSY (1MZ-FE/3MZ- FE) |
|

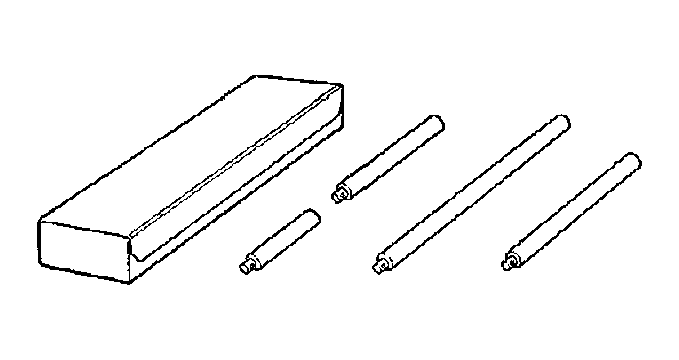

| 09950-70010 Handle Set | GENERATOR ASSY (2AZ-FE) (From July, 2003) GENERATOR ASSY (1MZ-FE/3MZ- FE) |
|

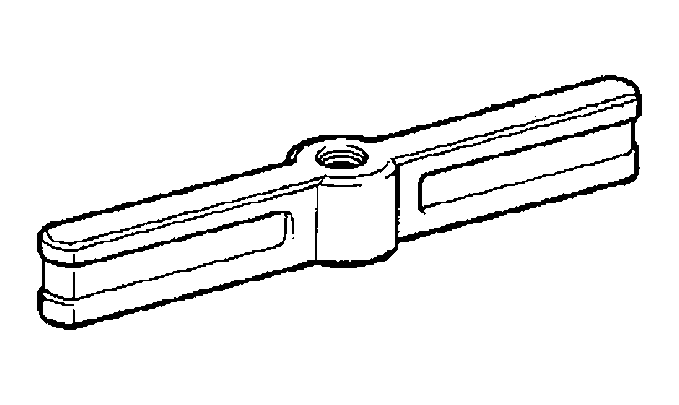

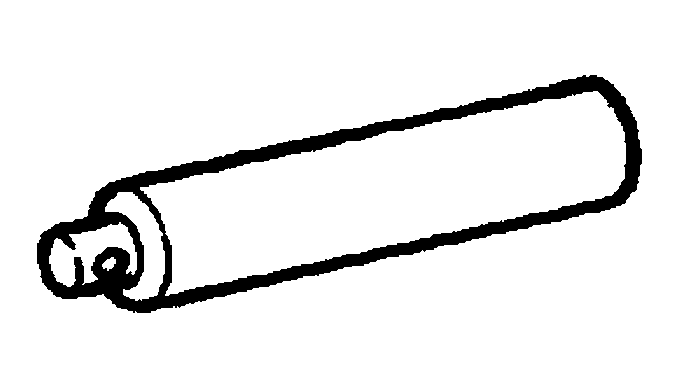

| (09951-07100) Handle 100 | GENERATOR ASSY (2AZ-FE) (From July, 2003) GENERATOR ASSY (1MZ-FE/3MZ- FE) |
Recommended Tools
STARTING & CHARGING - RECOMMENDED TOOLS CHART

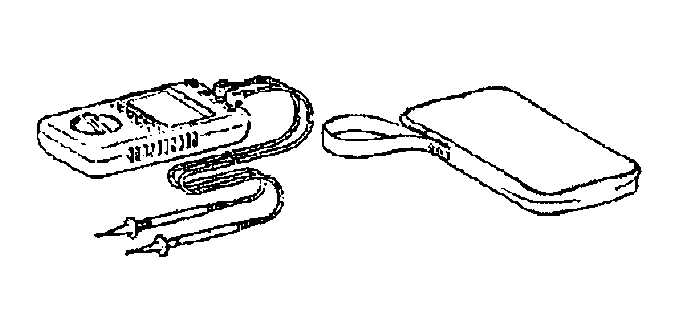

| 09082-00040 TOYOTA Electrical Tester | STARTING SYSTEM STARTER ASSY CHARGING SYSTEM GENERATOR ASSY |
|

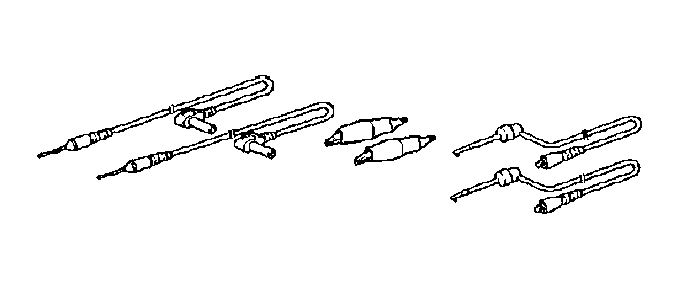

| (09083-00150) Test Lead Set | STARTING SYSTEM STARTER ASSY CHARGING SYSTEM GENERATOR ASSY |
|

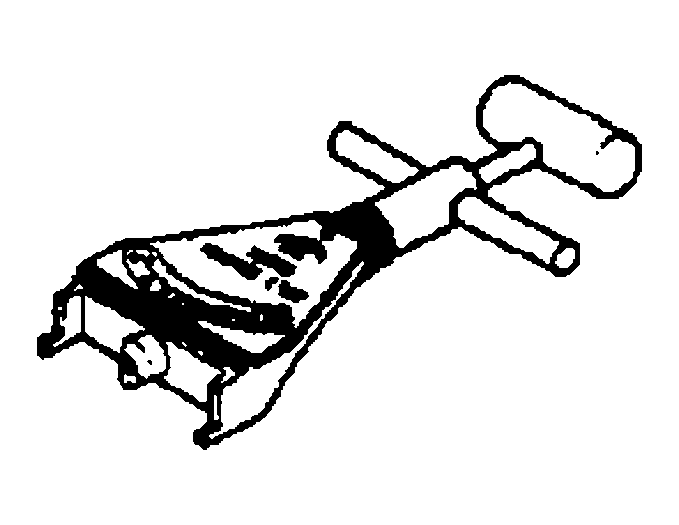

| 09216-00021 Belt Tension Gauge | GENERATOR ASSY (2AZ-FE) (From July, 2003) GENERATOR ASSY (1MZ-FE/3MZ- FE) |
|

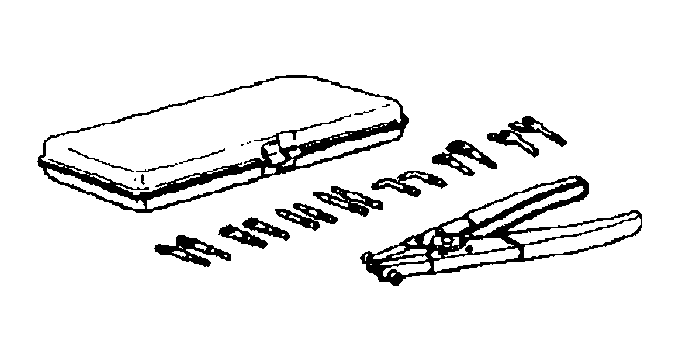

| 09904-00010 Expander Set | STARTER ASSY (2AZ-FE) (From July, 2003) STARTER ASSY (1MZ-FE/3MZ-FE) |
|

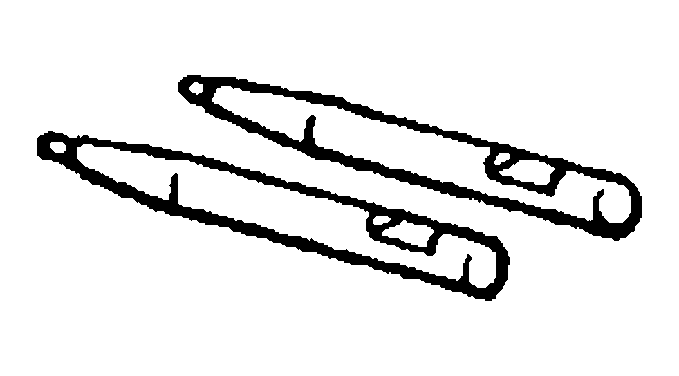

| (09904-00050) No. 4 Claw | STARTER ASSY (2AZ-FE) (From July, 2003) STARTER ASSY (1MZ-FE/3MZ-FE) |
Equipment
STARTING & CHARGING - EQUIPMENT CHART
| Ammeter (A) | |
| Dial indicator | |
| Ohmmeter | |
| Sandpaper (#400) | |
| Service Wire Harness | |
| Torque wrench | |
| Vernier calipers |
