2006 Toyota Camry Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Repair Instruction: Precaution

BASIC REPAIR HINT
1. HINTS ON OPERATIONS

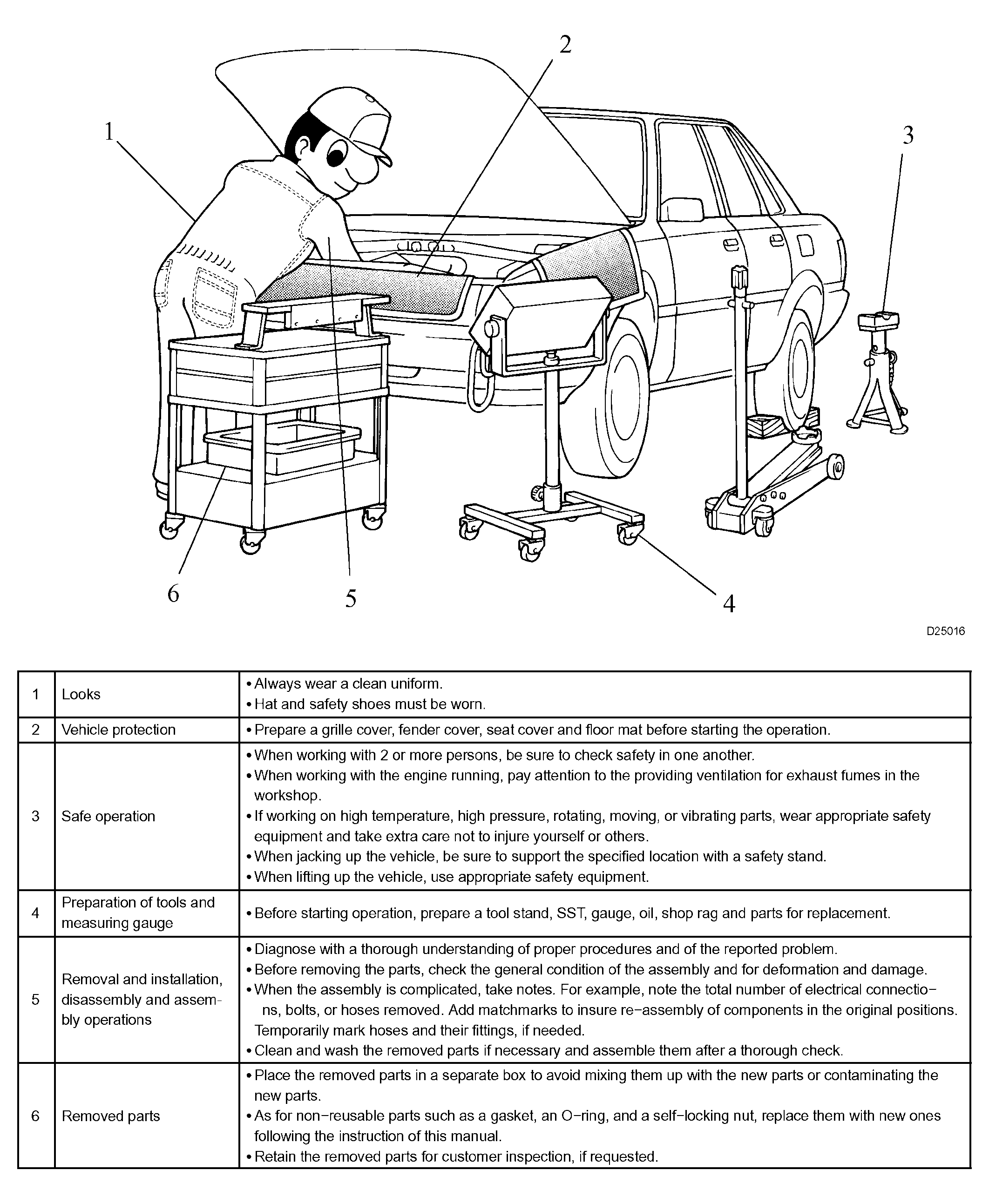

  Fig 1: Basic Repair Operation Procedures
  Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
2. JACKING UP AND SUPPORTING VEHICLE
  1. Care must be taken when jacking up and supporting the vehicle. Be sure to lift and support the vehicle at the proper locations (See VEHICLE LIFT AND SUPPORT LOCATIONS ).
3. PRECOATED PARTS
  1. Precoated parts are bolts, nuts, etc. that are coated with a seal lock adhesive at the factory.
  2. If a precoated part is retightened, loosened or moved in anyway, it must be recoated with the specified adhesive.
  3. When reusing precoated parts, clean off the old adhesive and dry the part with compressed air. Then apply new seal lock adhesive appropriate to the bolt, nut, or threads.

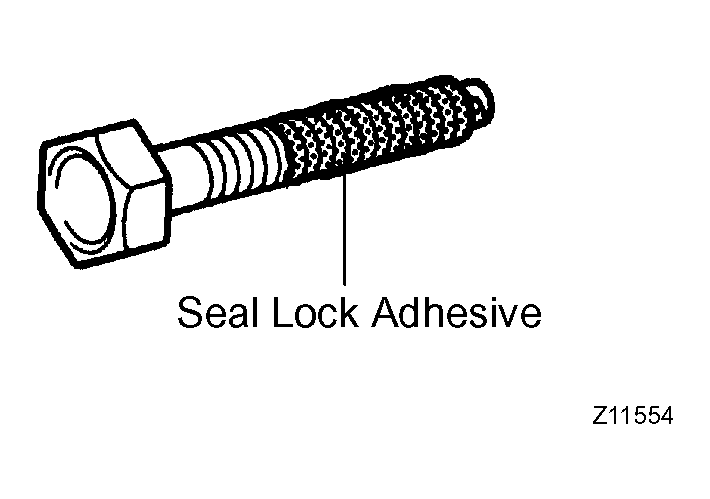

    Fig 2: Identifying Seal Lock Adhesive
    Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
