2006 Toyota Camry Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Throttle Body ASSY (2AZ-FE): Replacement

  1. DRAIN ENGINE COOLANT (See  REPLACEMENT  )
  2. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE
  3. REMOVE THROTTLE BODY ASSY
    1. Disconnect the throttle control motor & throttle position sensor connector.
    2. Disconnect the 2 vacuum hoses from the throttle body.
    3. Disconnect the 2 water bypass hoses.
    4. Remove the 4 bolts, fuel pipe support and throttle body.
    5. Remove the gasket.
    Fig 1: Identifying Throttle Body Bolts
    G04391280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL THROTTLE BODY ASSY
    1. Install a new gasket on the intake manifold, as shown in the illustration.

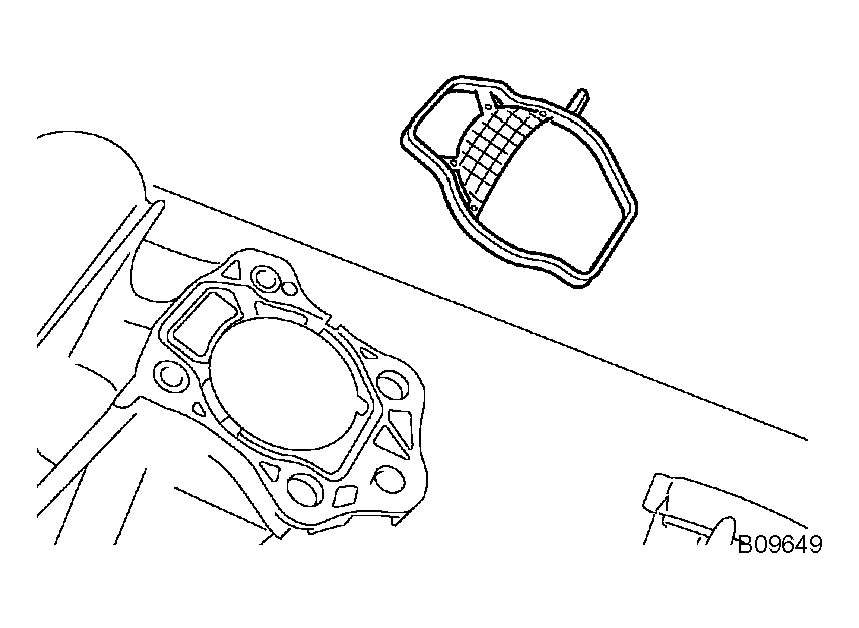

      Fig 2: Installing Gasket To Intake Manifold
      G04391281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the throttle body and fuel pipe support with the 4 bolts.

      Torque: 30 N.m (306 kgf.cm, 22 ft.lbf)

    3. Connect the 2 water bypass hoses to the throttle body.
    4. Connect the 2 vacuum hoses to the throttle body.
    5. Connect the throttle control motor & throttle position sensor connector.

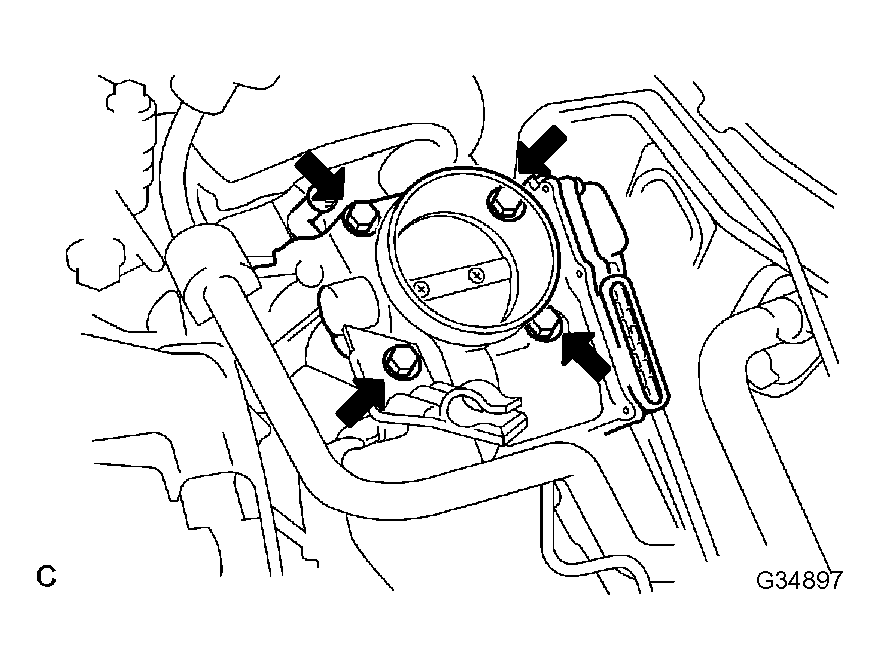

    Fig 3: Identifying Throttle Body Bolts
    G04391282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE
  6. ADD ENGINE COOLANT (See  REPLACEMENT  )
  7. CHECK FOR ENGINE COOLANT LEAKS (See  ON-VEHICLE INSPECTION  )
