VVT Sensor (1MZ-FE/3MZ-FE): Replacement
HINT:
A bolt without torque specification is a standard bolt (see SPECIFIED TORQUE FOR STANDARD BOLTS ).
- REMOVE AIR CLEANER INLET ASSY
- REMOVE AIR CLEANER ASSY (See REPLACEMENT )

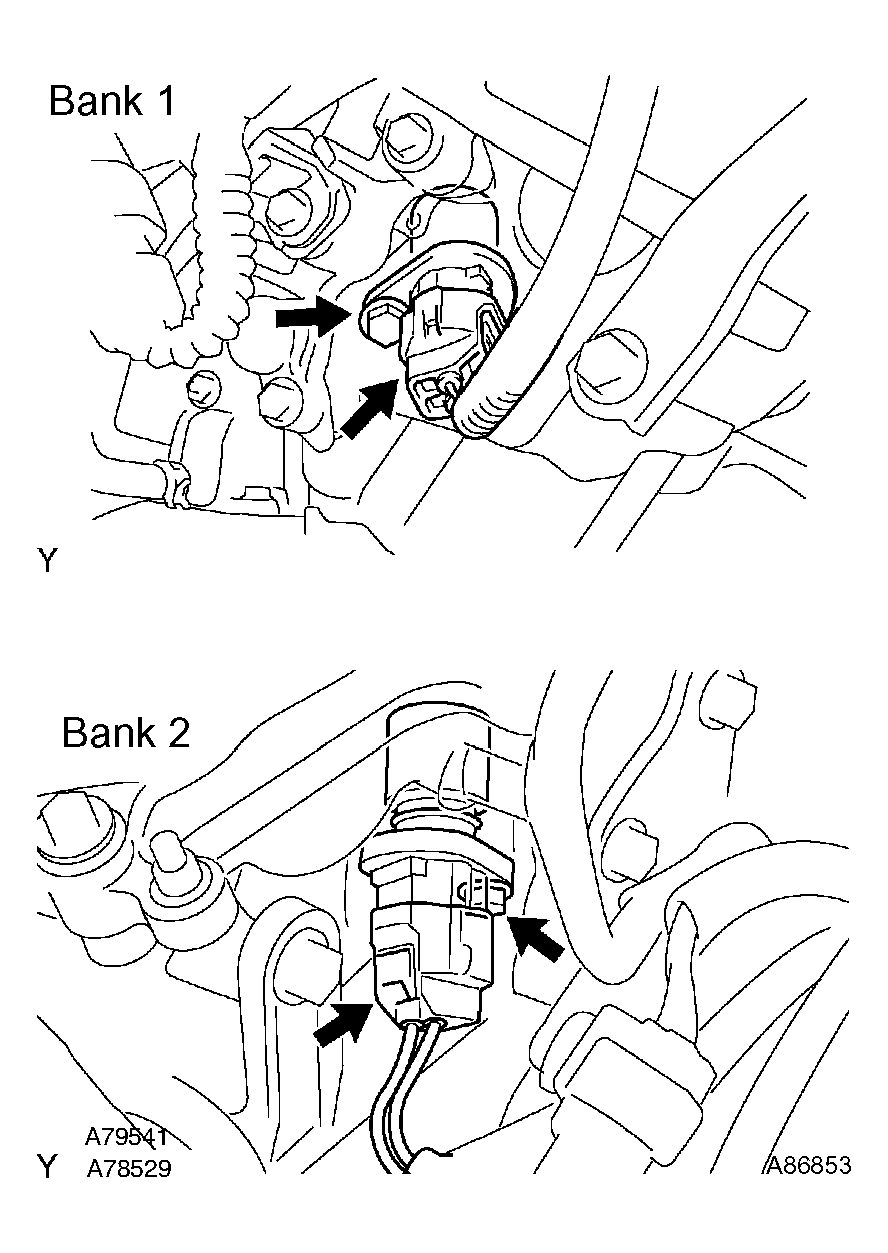

- REMOVE VVT SENSOR
- Disconnect the sensor connector.
- Remove the bolt and sensor.
- INSTALL VVT SENSOR
- Apply a light coat of engine oil to the O-ring on the sensor.
- Install the sensor with the bolt.
Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
- Connect the sensor connector.
- INSTALL AIR CLEANER ASSY (See REPLACEMENT )
- INSTALL AIR CLEANER INLET ASSY
- CHECK CONNECTION OF VACUUM HOSE
