2006 Toyota Camry Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Engine Control Systems: Preparation: Ignition: Preparation
Recommended Tools
IGNITION - RECOMMENDED TOOLS CHART

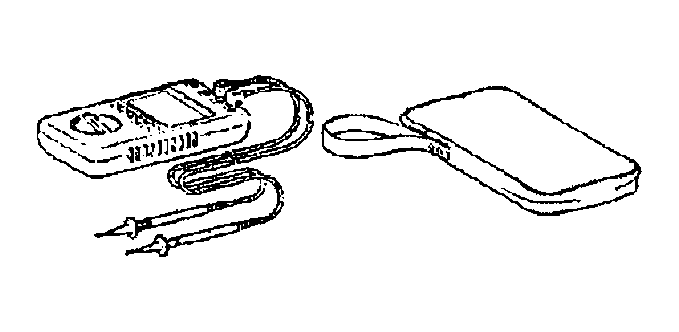

| 09082-00040 TOYOTA Electrical Tester | IGNITION SYSTEM (1MZ-FE/3MZ-FE) IGNITION SYSTEM (2AZ-FE) |
|

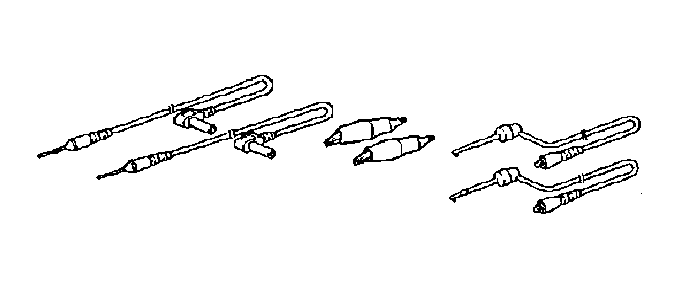

| (09083-00150) Test Lead Set | IGNITION SYSTEM (1MZ-FE/3MZ-FE) IGNITION SYSTEM (2AZ-FE) |
|

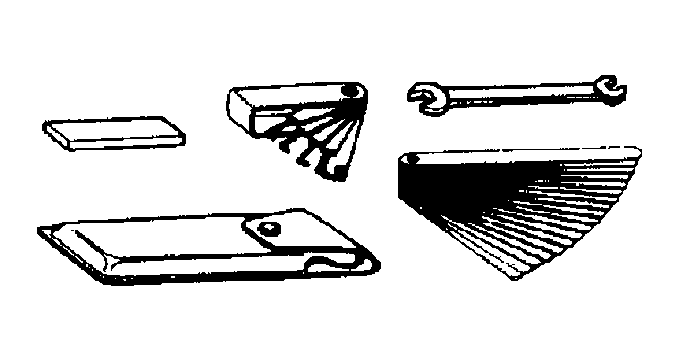

| 09200-00010 Engine Adjust Kit | IGNITION SYSTEM (1MZ-FE/3MZ-FE) IGNITION SYSTEM (2AZ-FE) |
|
| (09857-00031) Spark Plug Gap Gauge | IGNITION SYSTEM (1MZ-FE/3MZ-FE) IGNITION SYSTEM (2AZ-FE) |
Equipment
IGNITION - EQUIPMENT CHART
| Spark plug cleaner | |
| Torque wrench |
