2006 Toyota Camry Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Engine Control System: Preparation
SST
ENGINE CONTROL SYSTEM - SST CHART

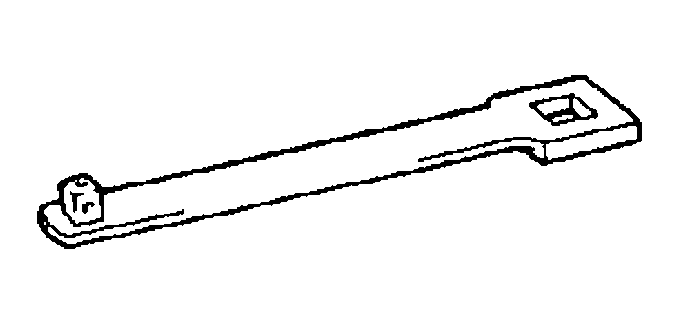

| 09249-63010 Torque Wrench Adaptor | KNOCK SENSOR (1MZ-FE/3MZ-FE) | |

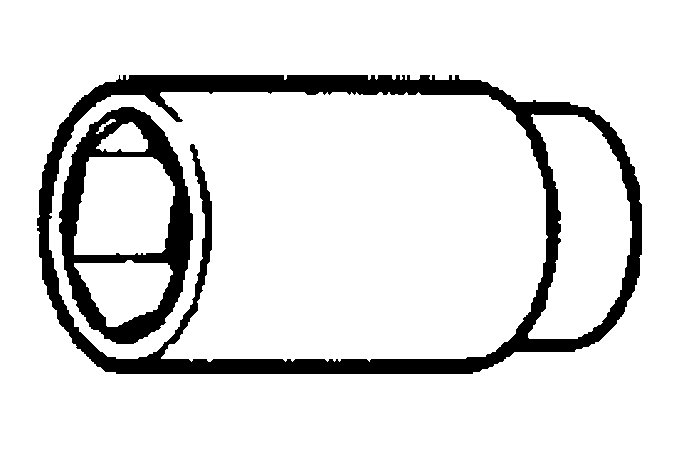

| 09816-30010 Oil Pressure Switch Socket | KNOCK SENSOR (1MZ-FE/3MZ-FE) |
Recommended Tools
ENGINE CONTROL SYSTEM - RECOMMENDED TOOLS CHART

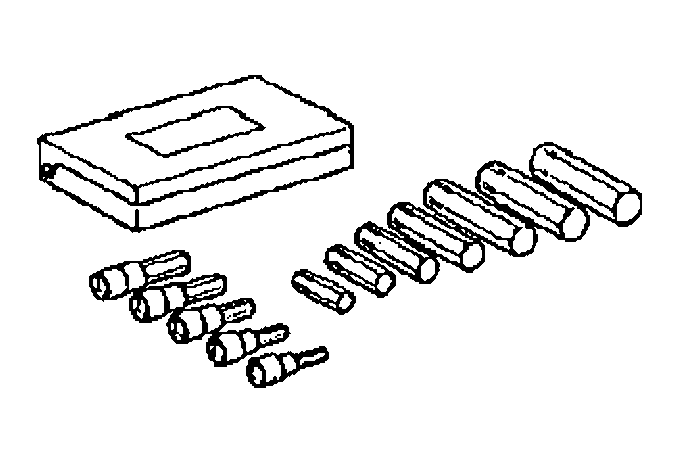

| 09040-00011 Hexagon Wrench Set | THROTTLE BODY ASSY (1MZ-FE/3MZ-FE) | |

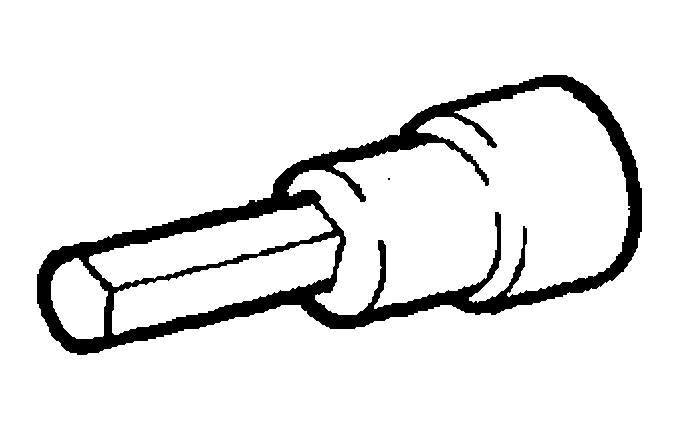

| (09043-20050) Socket Hexagon Wrench 5 | THROTTLE BODY ASSY (1MZ-FE/3MZ-FE) KNOCK SENSOR (1MZ-FE/3MZ-FE) | |

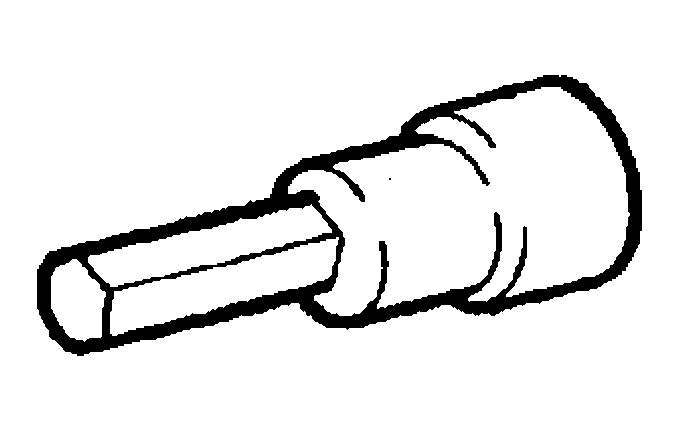

| (09043-20080) Socket Hexagon Wrench 8 | KNOCK SENSOR (3MZ-FE) | |

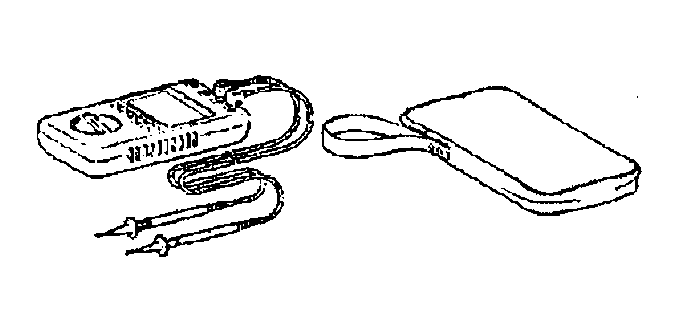

| 09082-00040 TOYOTA Electrical Tester | SFI SYSTEM (1MZ-FE/3MZ-FE) | |

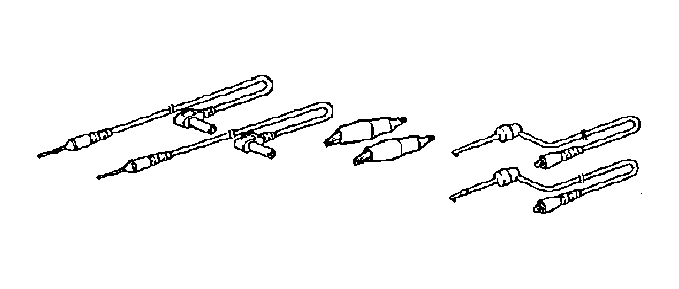

| (09083-00150) Test Lead Set | SFI SYSTEM (1MZ-FE/3MZ-FE) SFI SYSTEM (2AZ-FE) (From July, 2003) |
Equipment
ENGINE CONTROL SYSTEM - EQUIPMENT CHART
| Ohmmeter | |
| Radiator cap tester | |
| Service Wire Harness | |
| Torque wrench |
