Knock Sensor: Installation
- INSTALL KNOCK CONTROL SENSOR

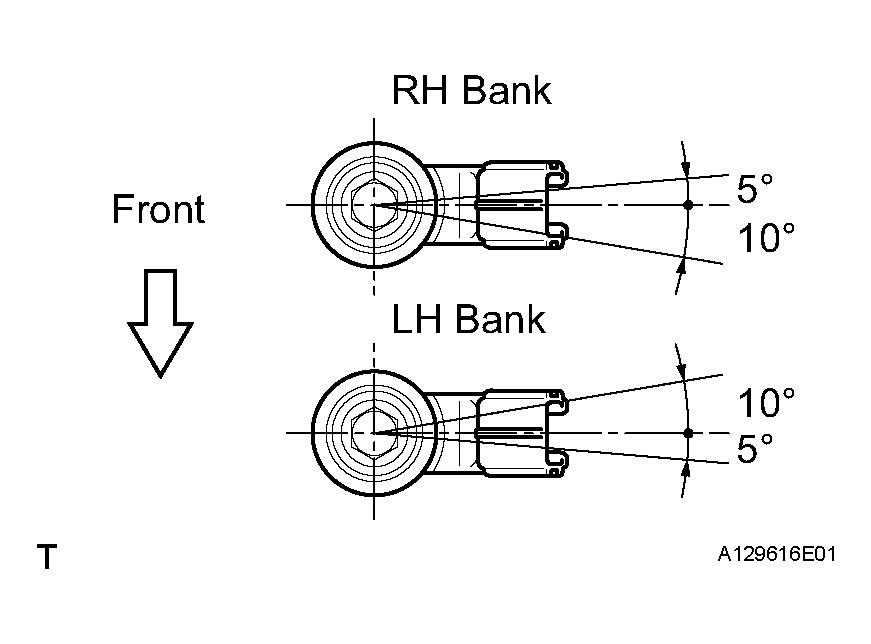

- Install the 2 knock control sensors with the 2 bolts as shown in Fig 1.
Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
- Connect the 2 knock control sensor connectors.
- Install the 2 knock control sensors with the 2 bolts as shown in Fig 1.
- INSTALL INTAKE MANIFOLD
- INSTALL INTAKE AIR SURGE TANK
- INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
- ADD ENGINE COOLANT (See COOLANT )
- CHECK FOR ENGINE COOLANT LEAKS (See REPLACEMENT )
- INSPECT FOR FUEL LEAKS (See ON-VEHICLE INSPECTION )
- INSTALL V-BANK COVER SUB-ASSEMBLY (See INSTALLATION )
- INSTALL COWL TOP PANEL OUTER (See INSTALLATION )
- INSTALL WINDSHIELD WIPER MOTOR & LINK ASSEMBLY (See INSTALLATION )
- PERFORM SYSTEM INITIALIZE
Some systems need initialization when disconnecting the battery terminal.
- CHECK FUNCTION OF THROTTLE BODY (See ON-VEHICLE INSPECTION )
