2006 Toyota Avalon XLSFACTORY OEM SERVICE PROCEDURE
Power Steering: SST
POWER STEERING SST CHART

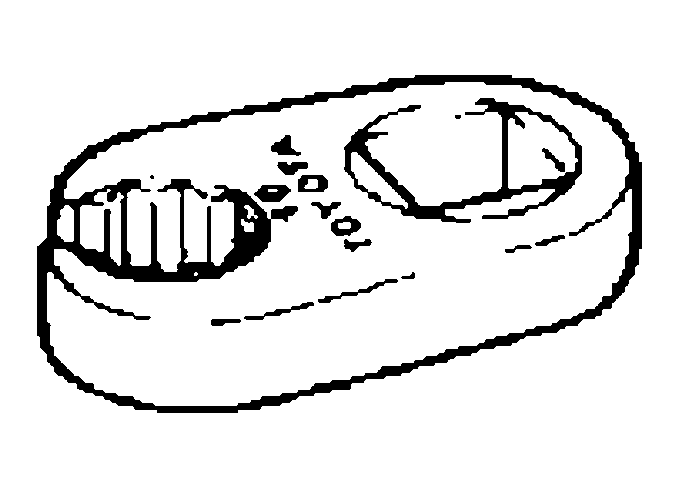

| 09023-12701 | Union Nut Wrench 17mm | |
| 09023-38201 | Union Nut Wrench 12mm | |
| 09521-24010 | Rear Axle Shaft Puller | |
| 09527-21011 | Rear Axle Shaft Bearing Remover | |
| 09612-00012 | Rack & Pinion Steering Rack Housing Stand | |
| 09612-22011 | Tilt Handle Bearing Replacer | |
| 09612-24014 | Steering Gear Housing Overhaul Tool Set | |
| (09613-22011) | Steering Rack Shaft Bushing Puller | |
| 09616-00011 | Steering Worm Bearing Adjusting Socket | |
| 09628-62011 | Boll Joint Puller | |
| 09630-00014 | Power Steering Gear Housing Overhaul Tool Set | |

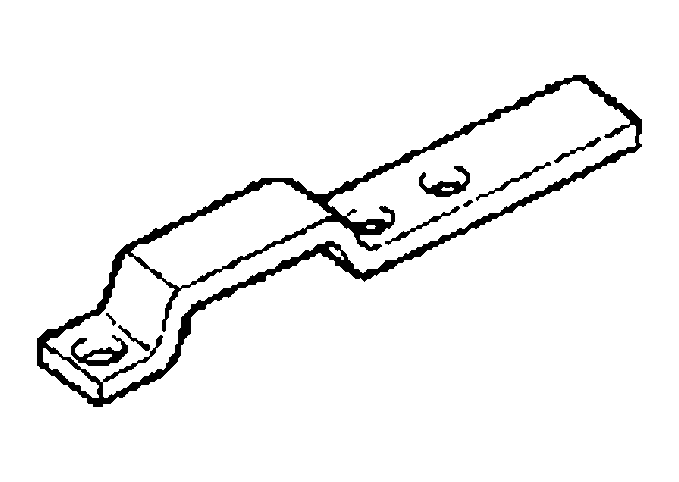

| (09631-00132) | Vane Pump Bracket | |

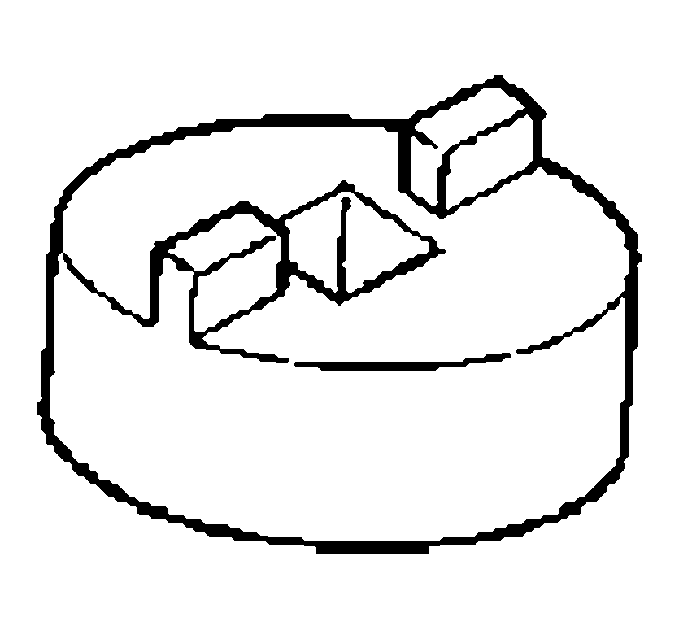

| 09631-10021 | Rack Stopper Wrench | |
| 09631-12071 | Steering Rack Oil Seal Test Tool | |
| 09631-20081 | Seal Ring Tool | |
| 09631-33010 | Steering Rack Cover I | |

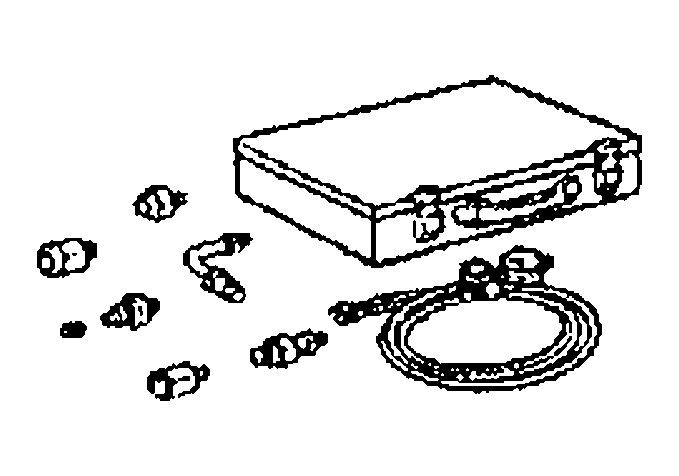

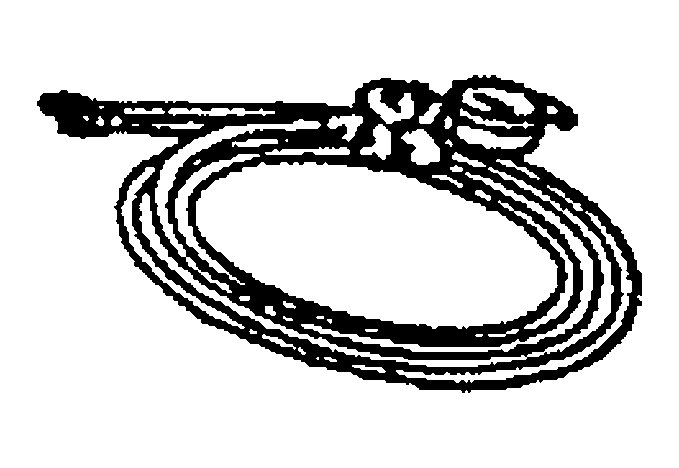

| 09640-10010 | Power Steering Pressure Gauge Set | |
| (09641-01010) | Gauge Assy | |

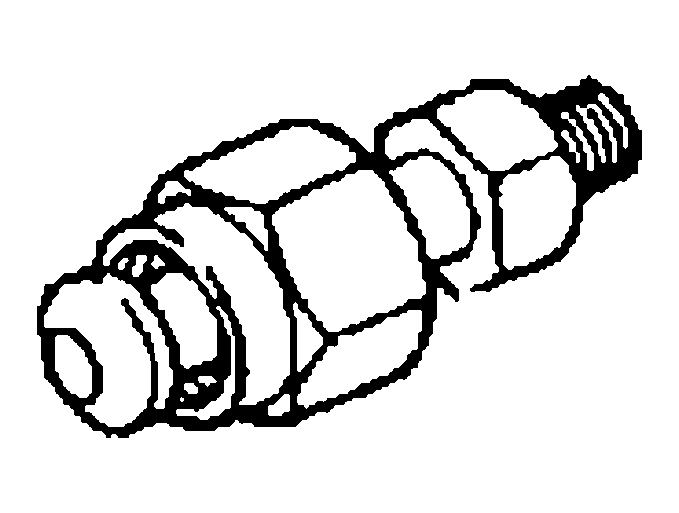

| (09641-01020) | Attachment A | |

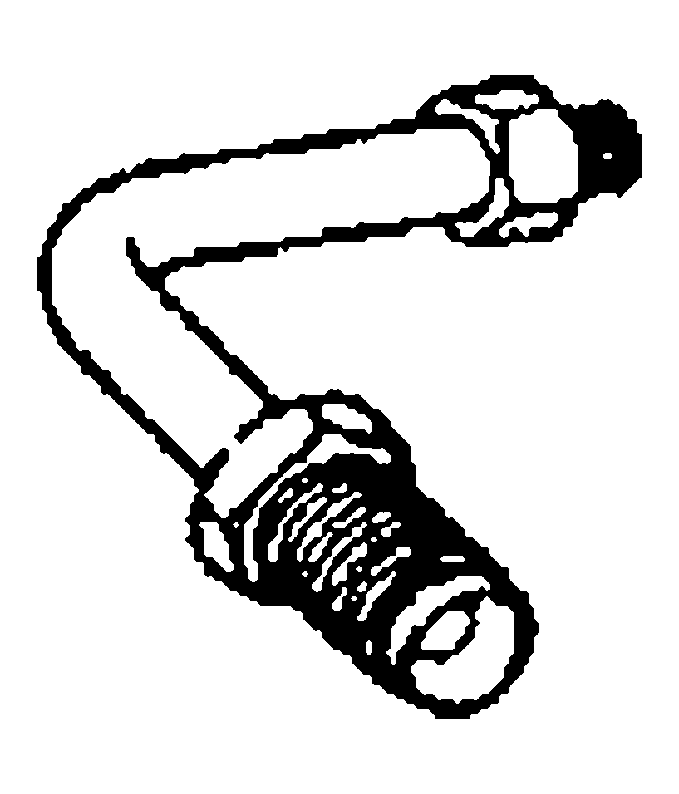

| (09641-01030) | Attachment B | |

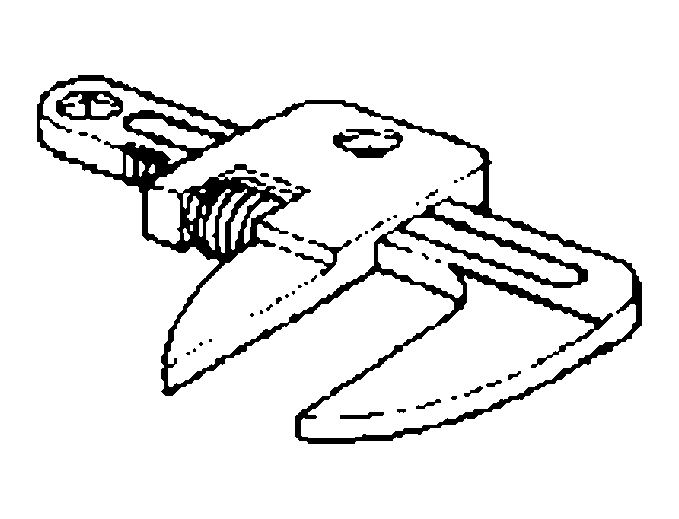

| 09922-10010 | Variable Open Wrench | |

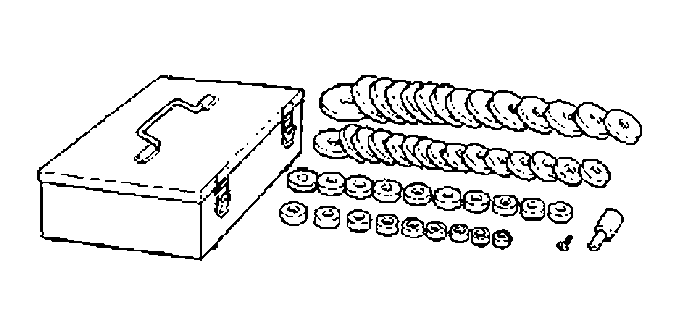

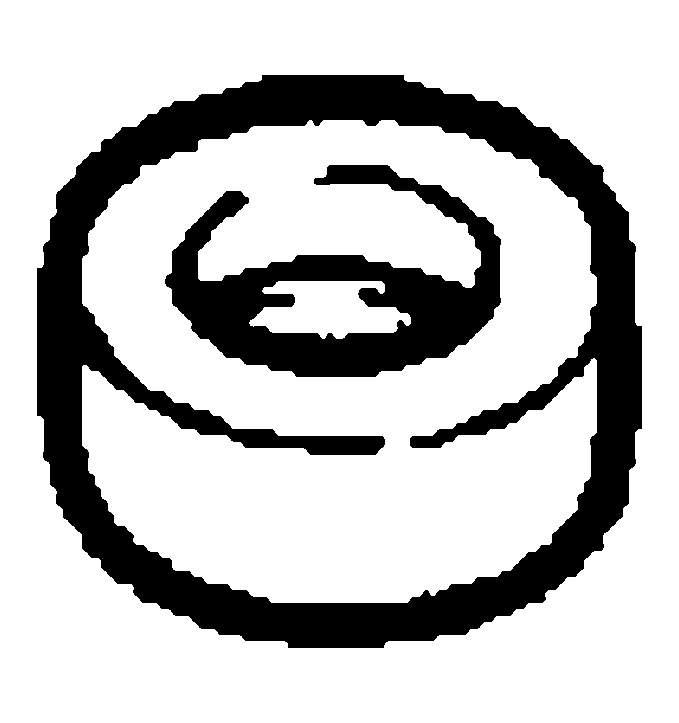

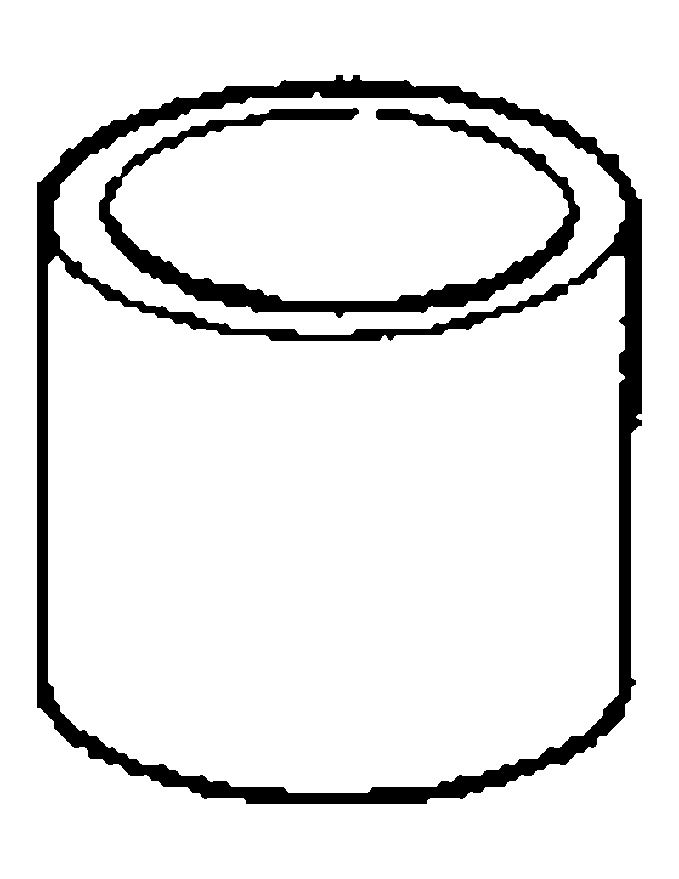

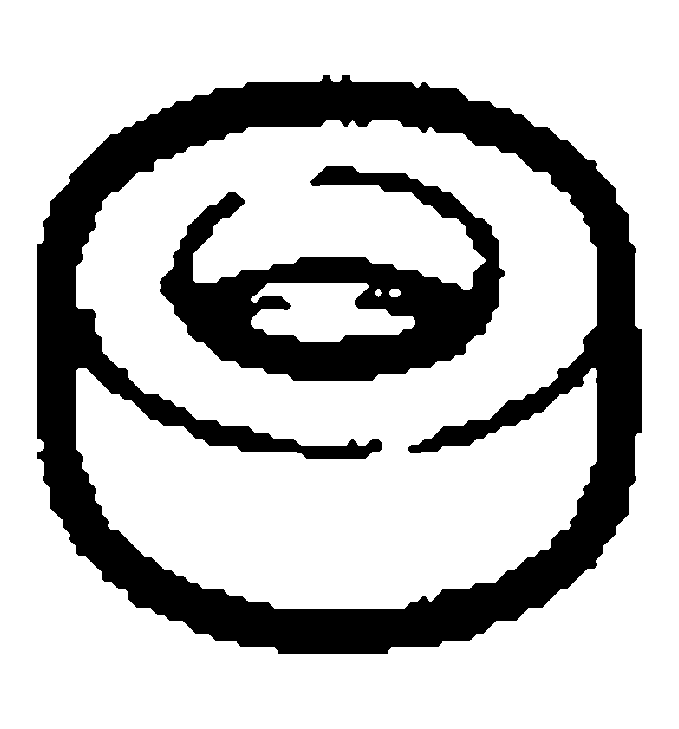

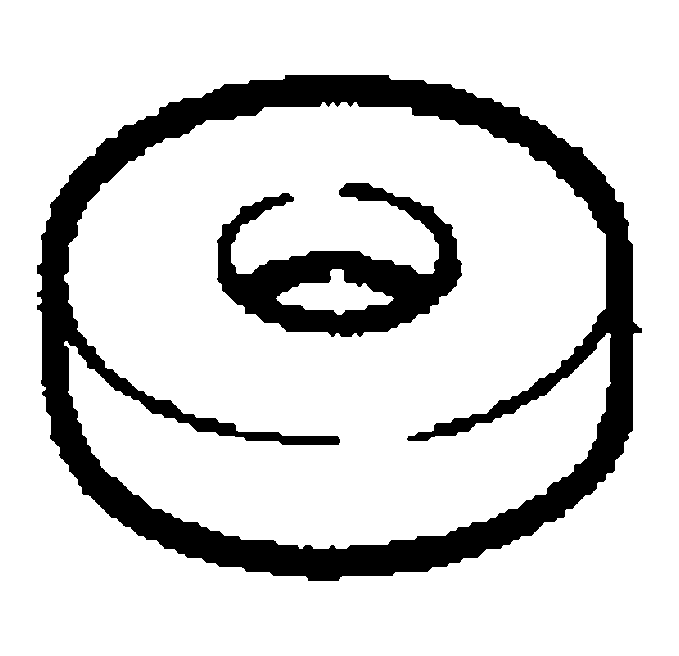

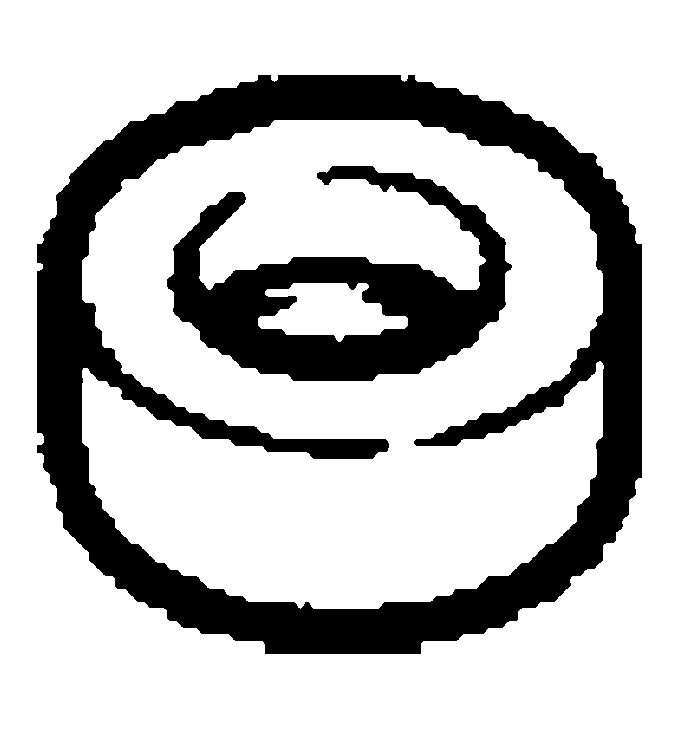

| 09950-60010 | Replacer Set | |

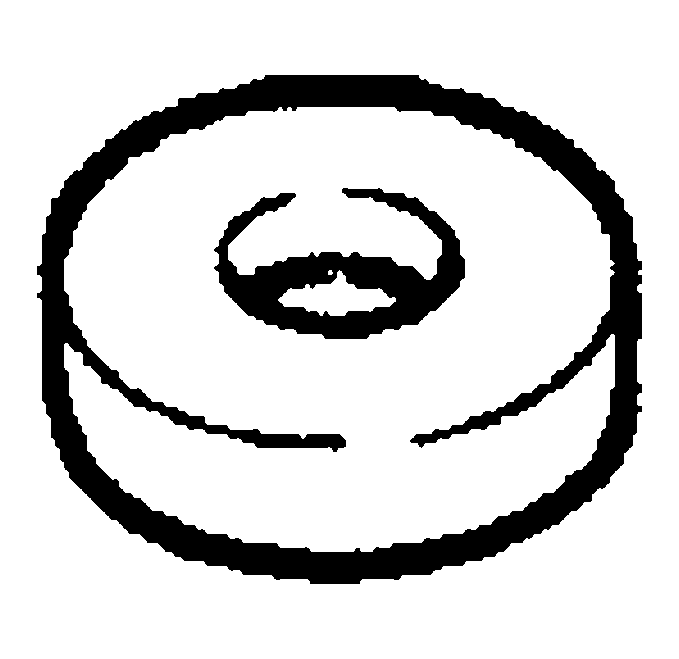

| (09951-00180) | Replacer 18 | |
| (09951-00250) | Replacer 25 | |
| (09951-00280) | Replacer 28 | |
| (09951-00290) | Replacer 29 | |
| (09951-00320) | Replacer 32 | |
| (09951-00340) | Replacer 34 | |
| (09951-00400) | Replacer 40 | |
| (09951-00420) | Replacer 42 | |
| (09952-06010) | Adapter | |

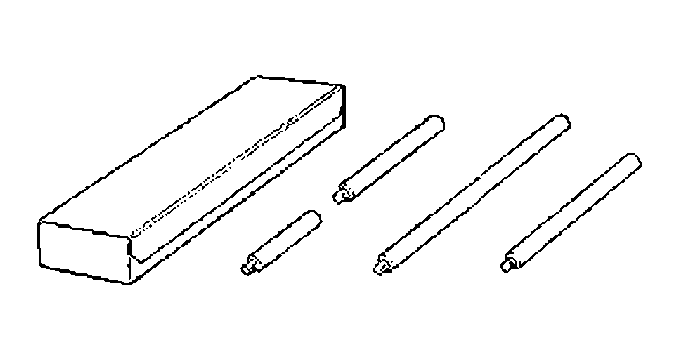

| 09950-70010 | Handle Set | |
| (09951-07100) | Handle 100 | |

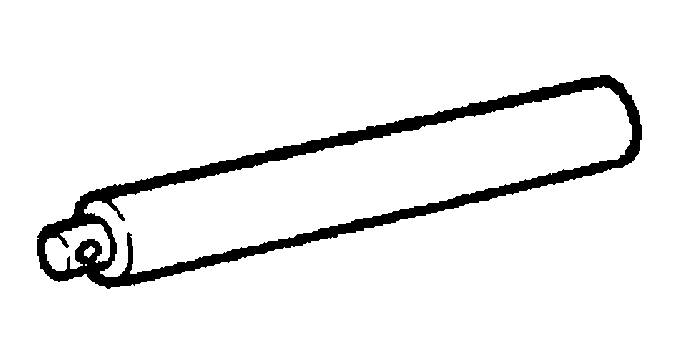

| (09951-07150) | Handle 150 | |

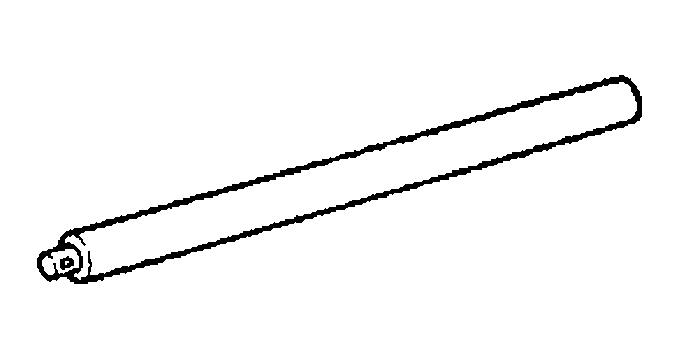

| (09951-07360) | Handle 360 |
