2006 Toyota Avalon XLSFACTORY OEM SERVICE PROCEDURE
Drive Shaft: SST
DRIVE SHAFT SST CHART

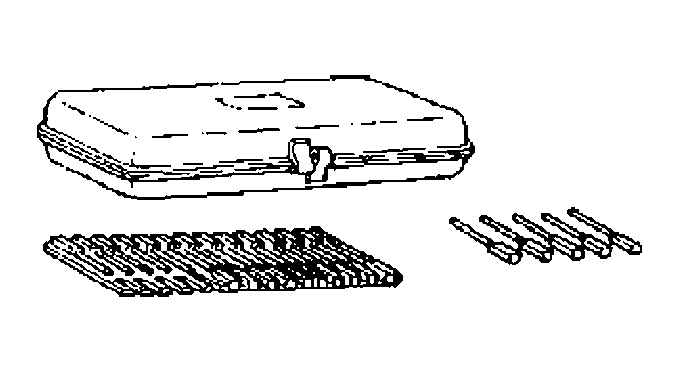

| 09240-00020 | Wire Gauge Set | |

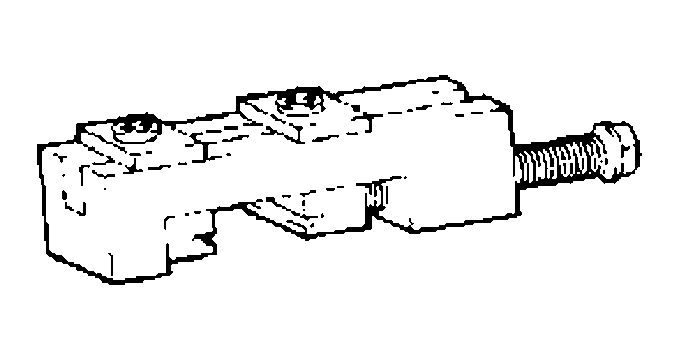

| 09520-01010 | Drive Shaft Remover Attachment | |

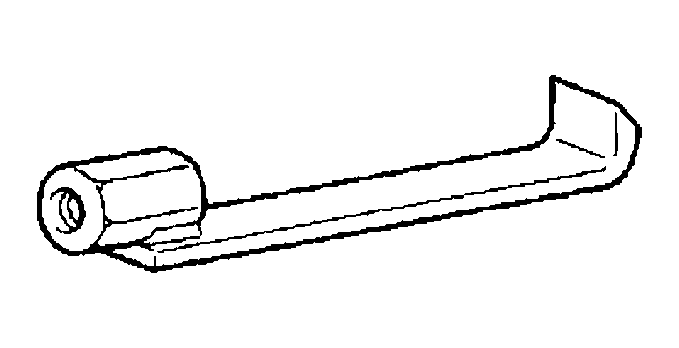

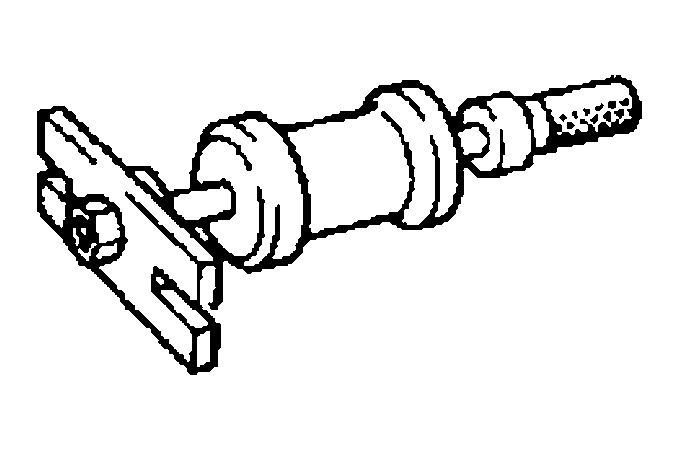

| 09520-24010 | Differential Side Gear Shaft Puller | |

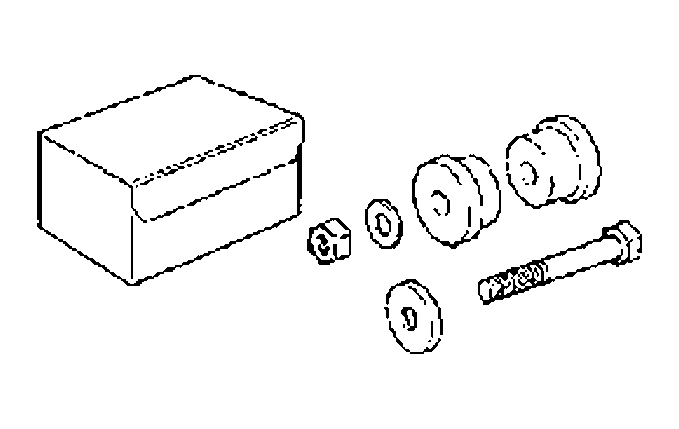

| (09520-32040) | Shocker Set | |
| 09521-24010 | Rear Axle Shaft Puller | |

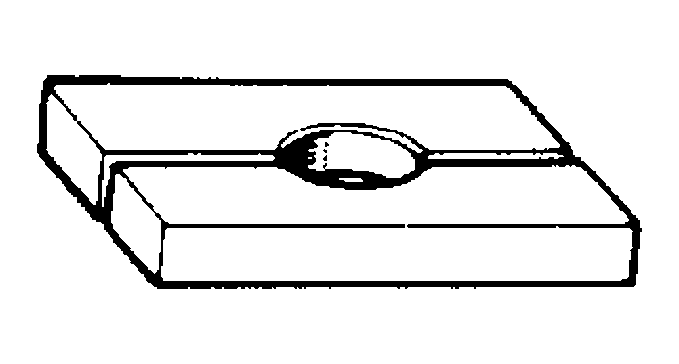

| 09527-10011 | Rear Axle Shaft Bearing Remover | |

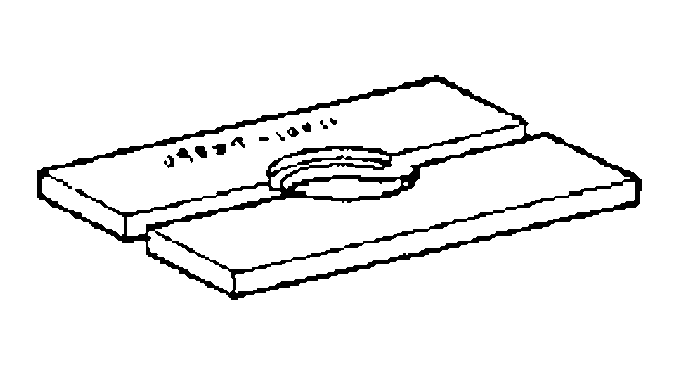

| 09527-30010 | Rear Axle Shaft Bearing Remover | |
| 09608-16042 | Front Hub Bearing Adjusting Tool | |

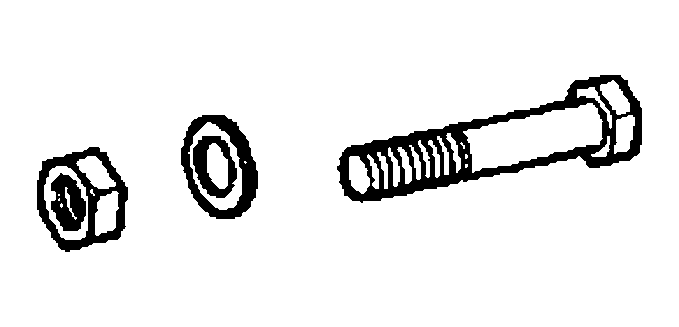

| (09608-02021) | Bolt & Nut | |

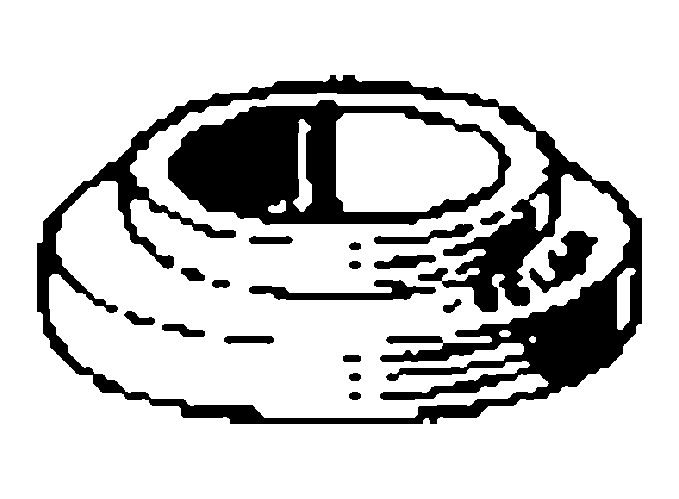

| (09608-02041) | Retainer | |

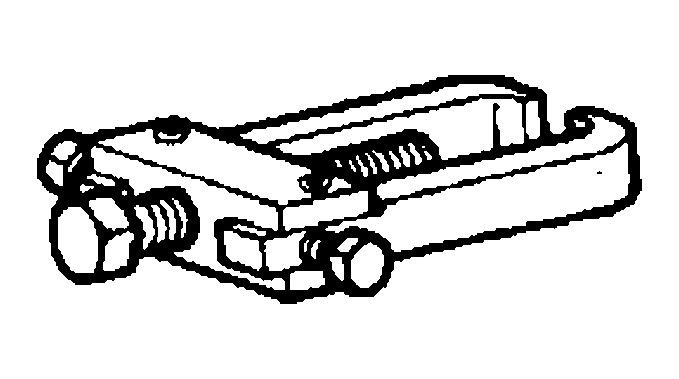

| 09628-62011 | Boll Joint Puller | |
| 09726-40010 | Lower Control Shaft Bearing Replacer | |

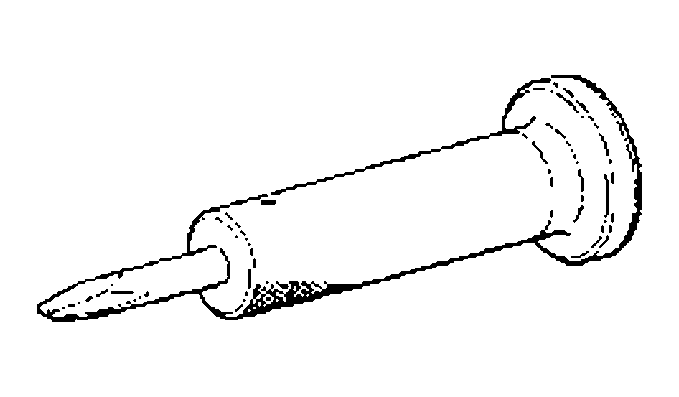

| 09930-00010 | Drive Shaft Nut Chisel | |

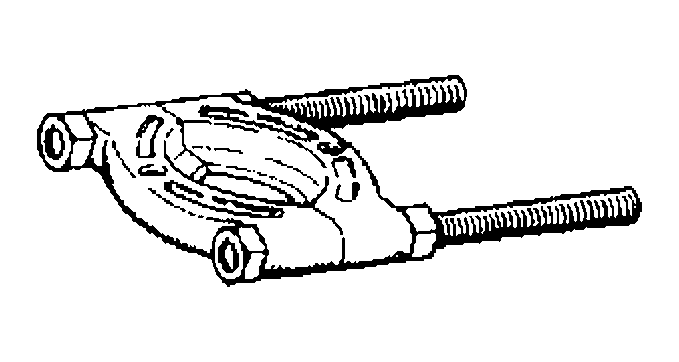

| 09950-00020 | Bearing Remover |
