2006 Toyota Avalon XLSFACTORY OEM SERVICE PROCEDURE
Brake Control: SST
BRAKE CONTROL SST CHART

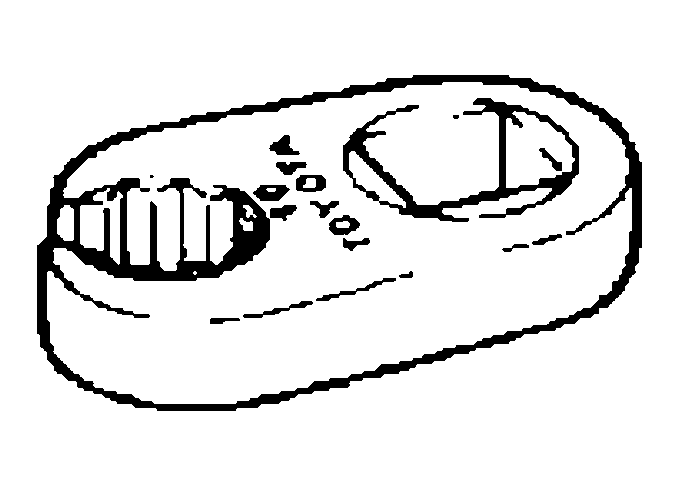

| 09023-00101 | Union Nut Wrench 10 mm | |

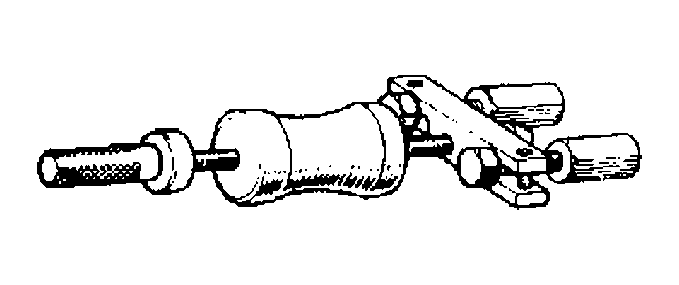

| 09520-00031 | Rear Axle Shaft Puller | |

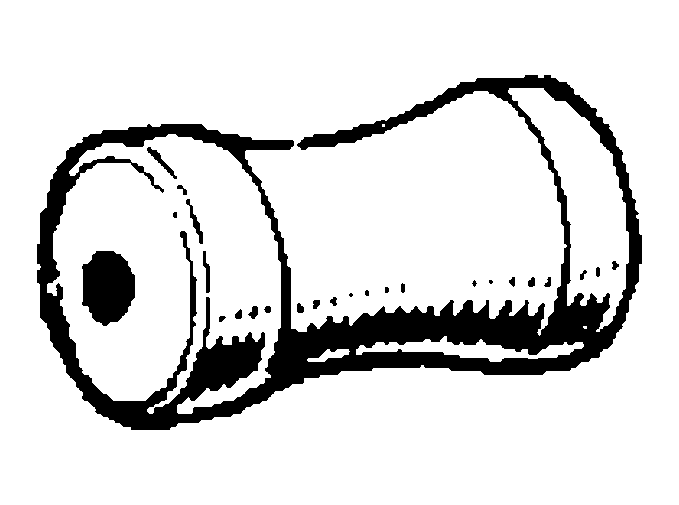

| (09520-00040) | Shocker | |
| 09521-00020 | Drive Shaft Boot Clamping Tool | |

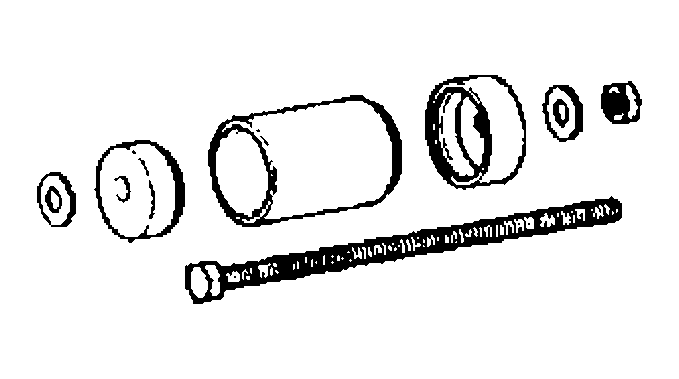

| 09830-36010 | Front Mounting Cushion Remover & Replacer | |

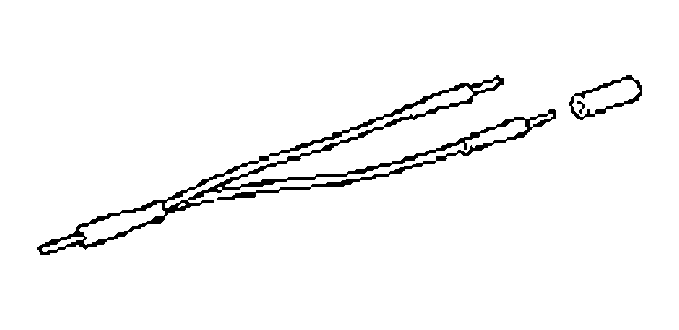

| 09843-18040 | Diagnosis Check Wire No.2 | |

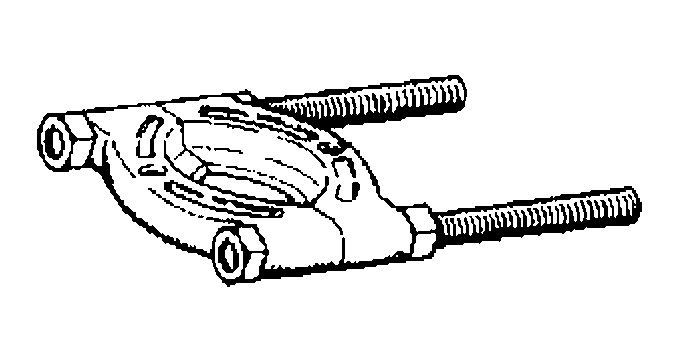

| 09950-00020 | Bearing Remover | |

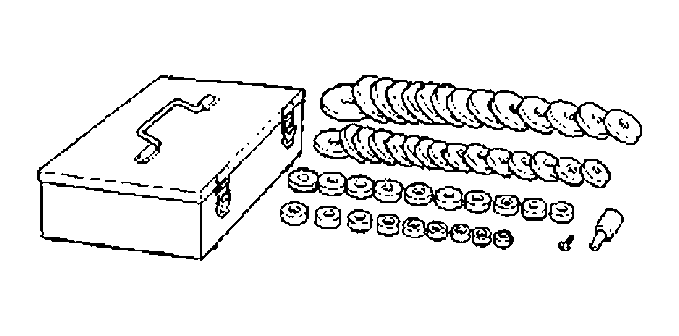

| 09950-60010 | Replacer Set | |

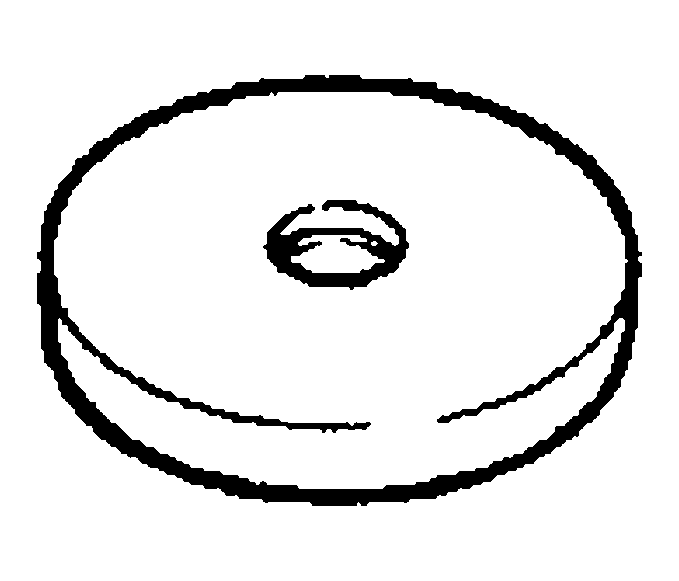

| (09951-00650) | Replacer 65 | |

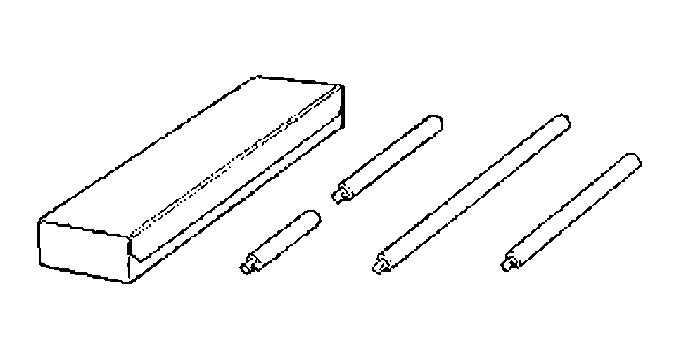

| 09950-70010 | Handle Set | |

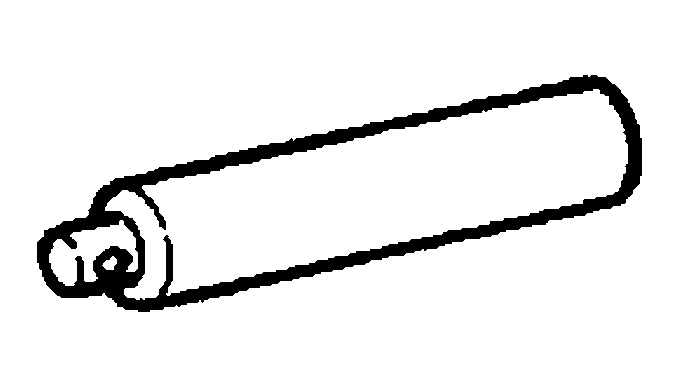

| (09951-07100) | Handle 100 |
