2006 Toyota Avalon XLSFACTORY OEM SERVICE PROCEDURE
Engine Control Systems: Preparation: Axle: SST
AXLE SST CHART

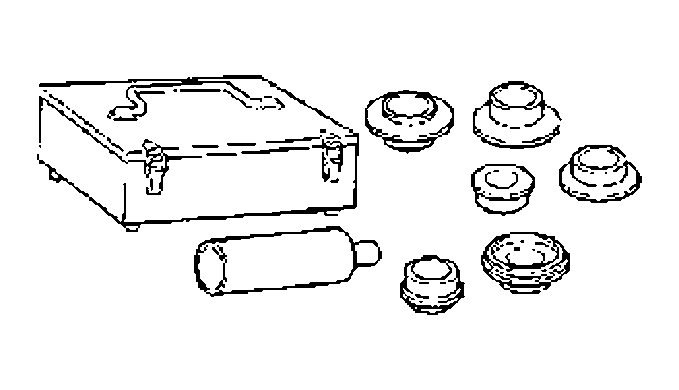

| 09316-60011 | Transmission & Transfer Bearing Replacer | |

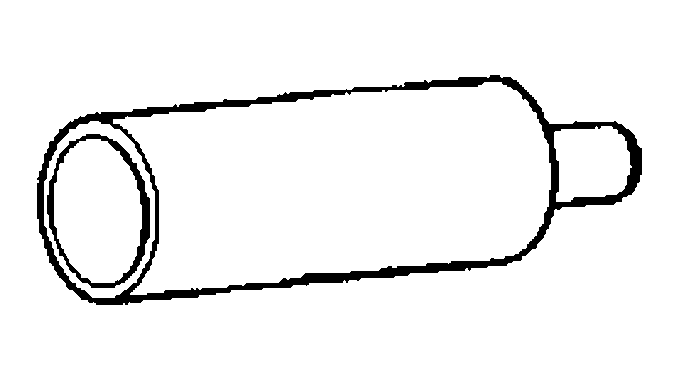

| (09316-00011) | Replacer Pipe | |
| (09316-00031) | Replacer B | |

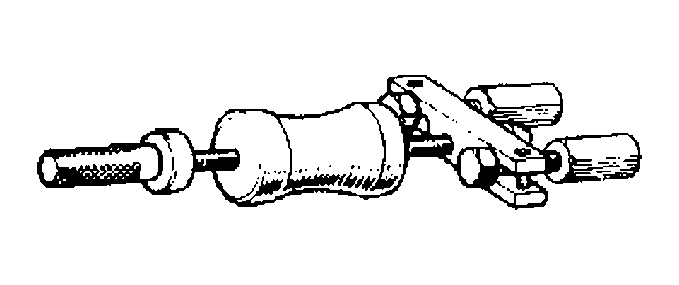

| 09520-00031 | Rear Axle Shaft Puller | |
| 09527-17011 | Rear Axle Shaft Bearing Remover | |
| 09608-32010 | Steering Knuckle Oil Seal Replacer | |

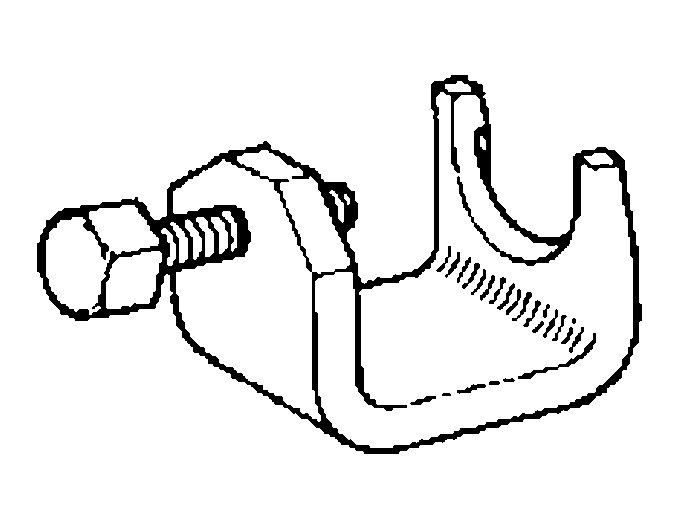

| 09628-10011 | Ball Joint Puller | |

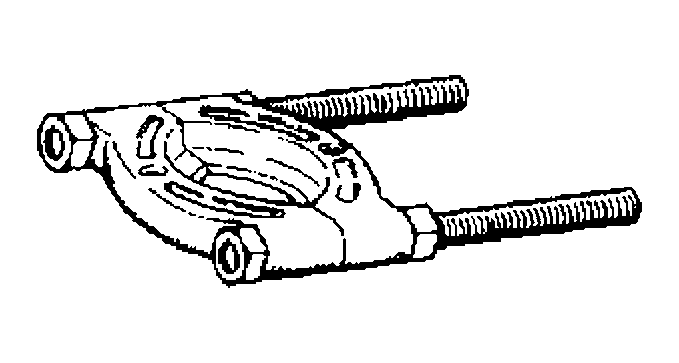

| 09950-00020 | Bearing Remover | |

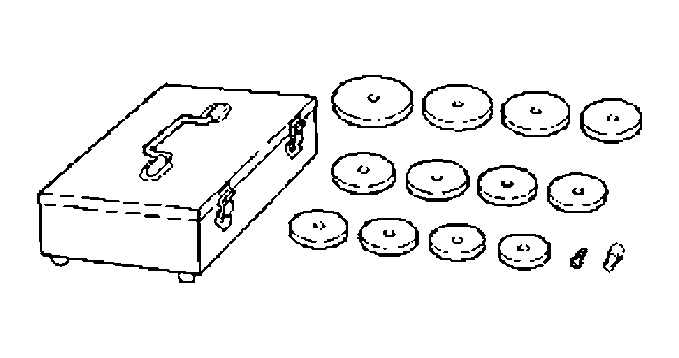

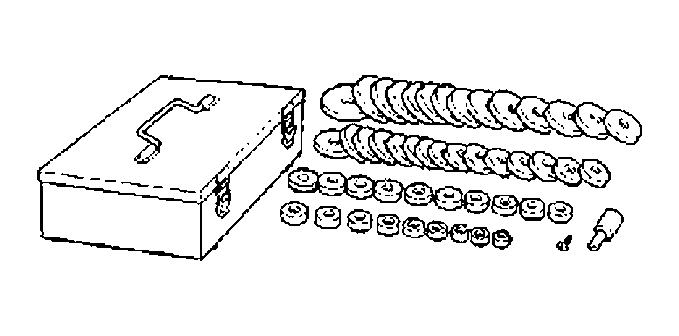

| 09950-60010 | Replacer Set | |
| (09951-00430) | Replacer 43 | |
| (09951-00600) | Replacer 60 | |
| 09950-60020 | Replacer Set No.2 | |
| (09951-00810) | Replacer 81 | |

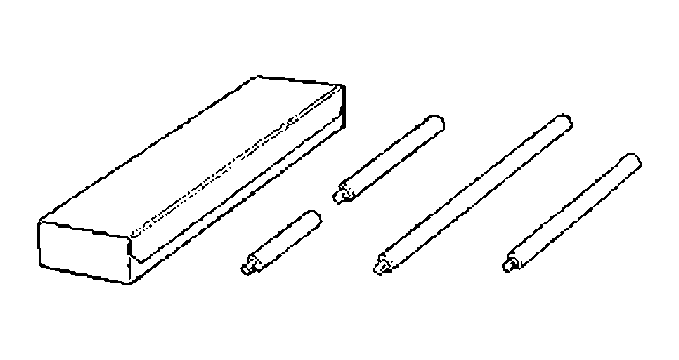

| 09950-70010 | Handle Set | |

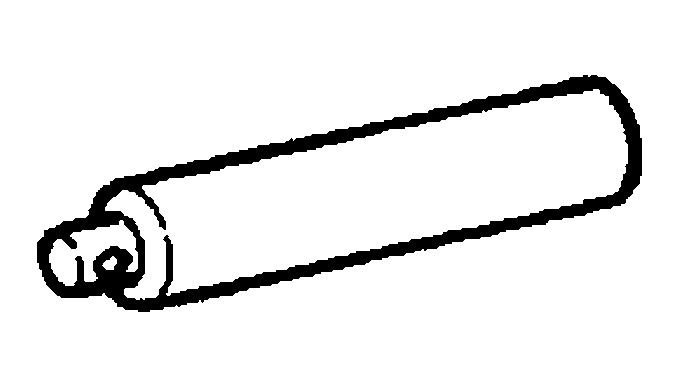

| (09951-07100) | Handle 100 |
