2006 Toyota Avalon XLSFACTORY OEM SERVICE PROCEDURE
2GR-FE Fuel: SST
2GR-FE FUEL SST CHART

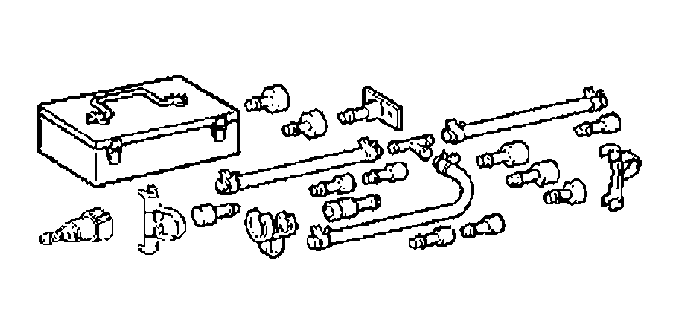

| 09268-41048 | Injection Measuring Tool Set | |

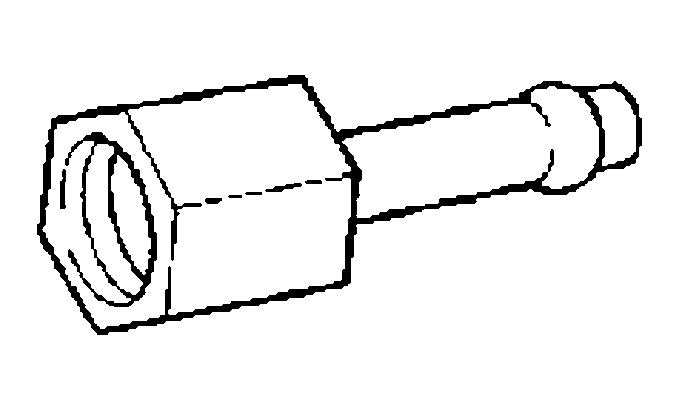

| (09268-41130) | Adapter | |

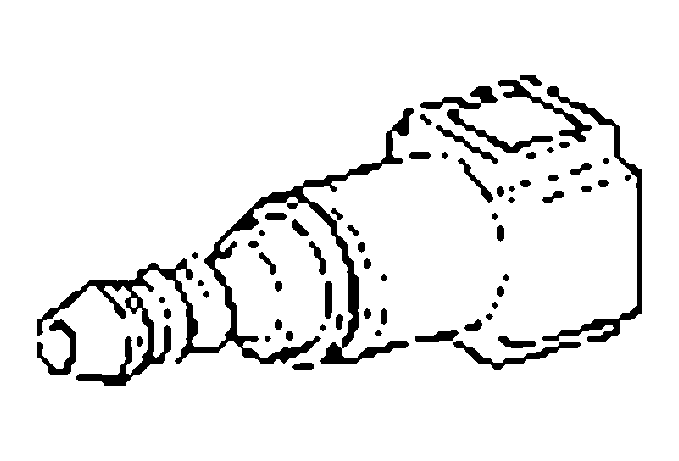

| (09268-41500) | Fuel Tube Connector | |

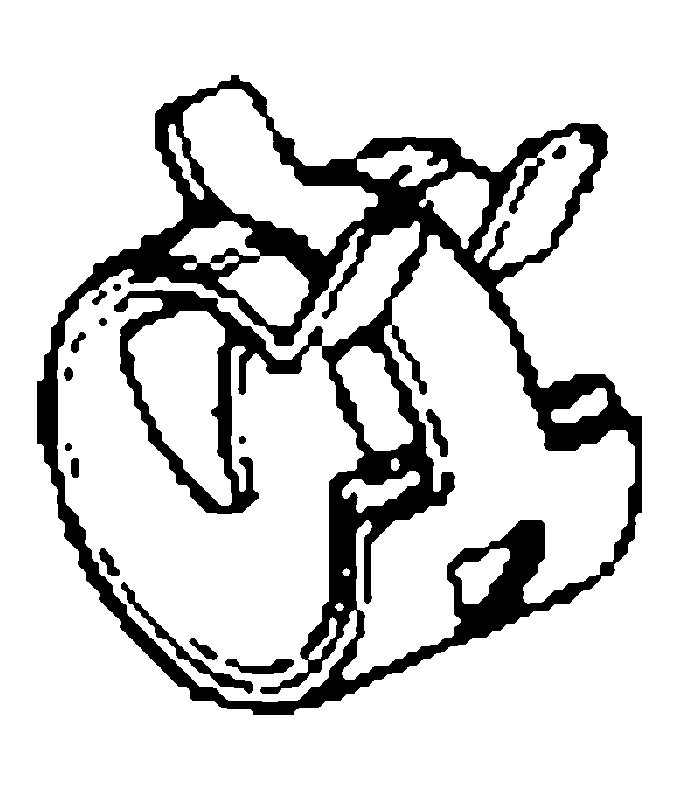

| (90467-13001) | Clip | |

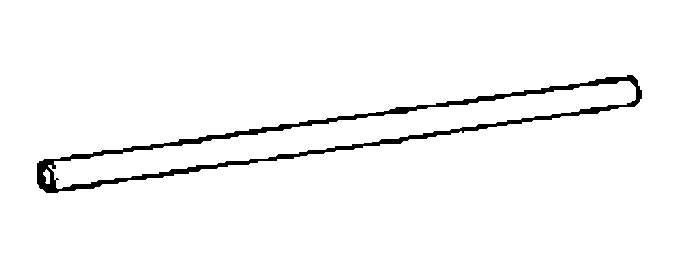

| (95336-08070) | Hose | |

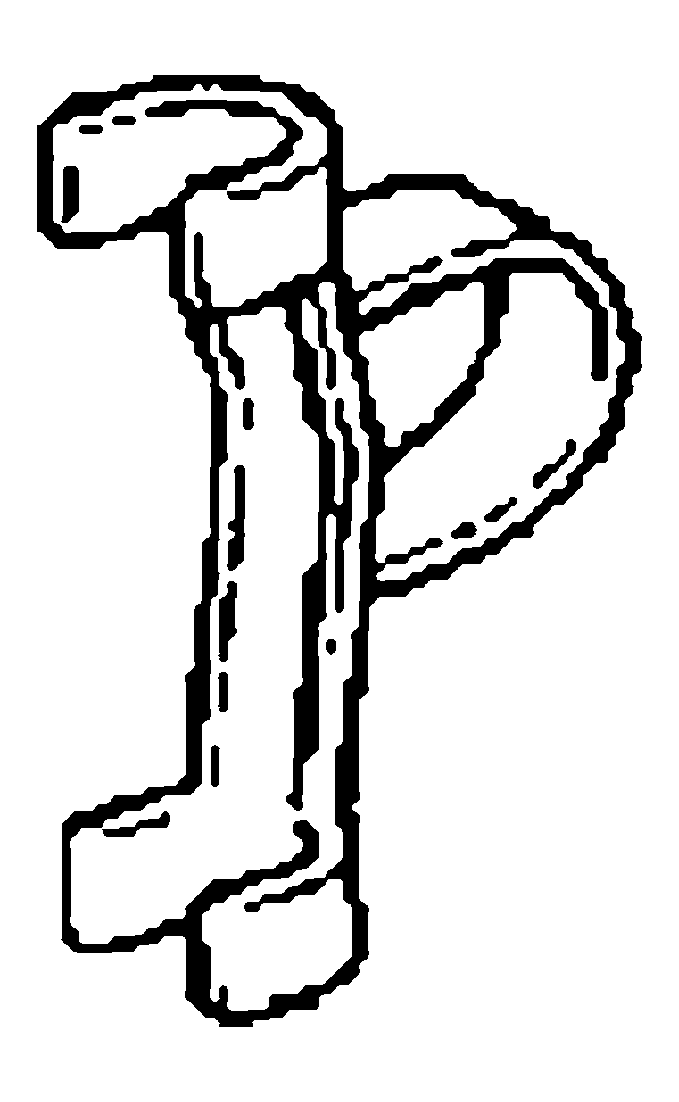

| 09268-41400 | Clamp | |

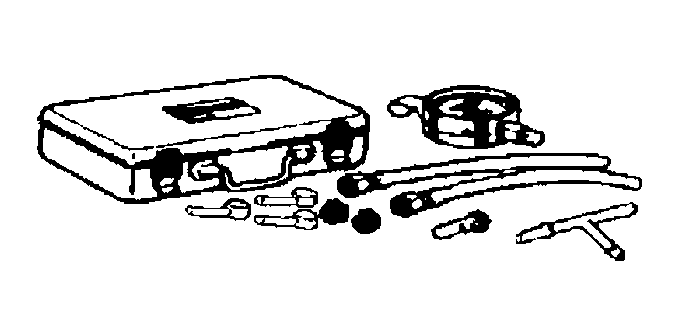

| 09268-45014 | EFI Fuel Pressure Gauge | |

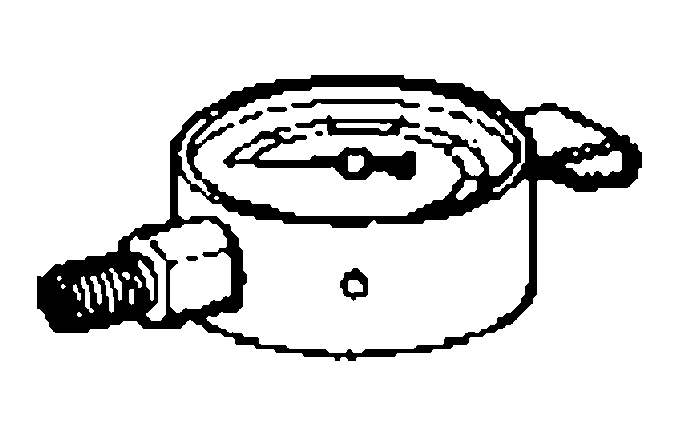

| (09268-41200) | Gauge | |

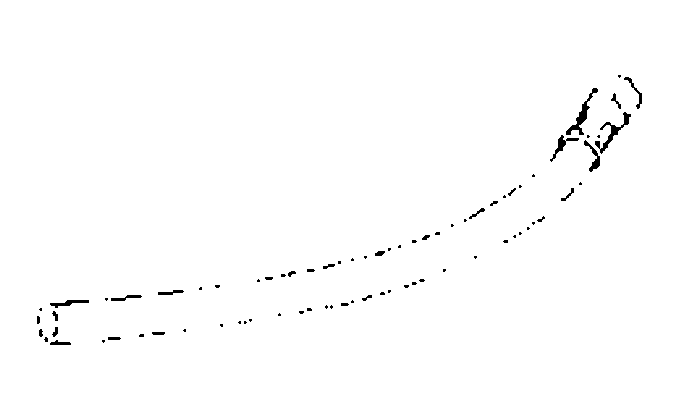

| (09268-41220) | Hose | |

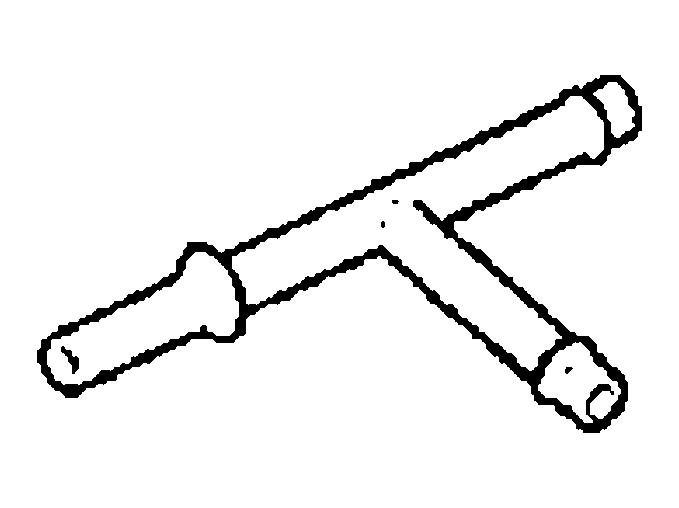

| (09268-41250) | T Joint | |

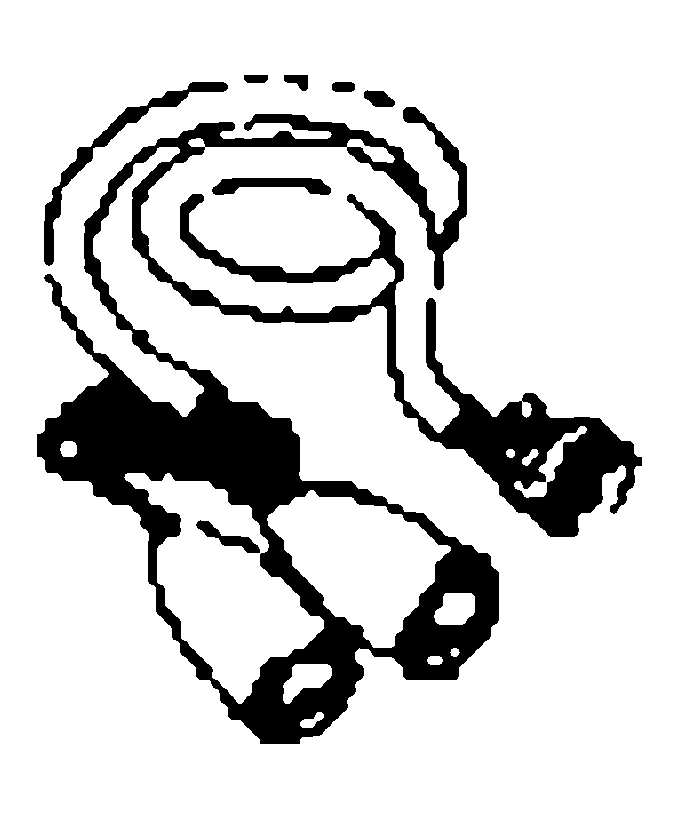

| 09842-30080 | Wire H EFI Inspection |
