2006 Toyota Avalon XLSFACTORY OEM SERVICE PROCEDURE
Recommended Tools
RECOMMENDED TOOLS CHART

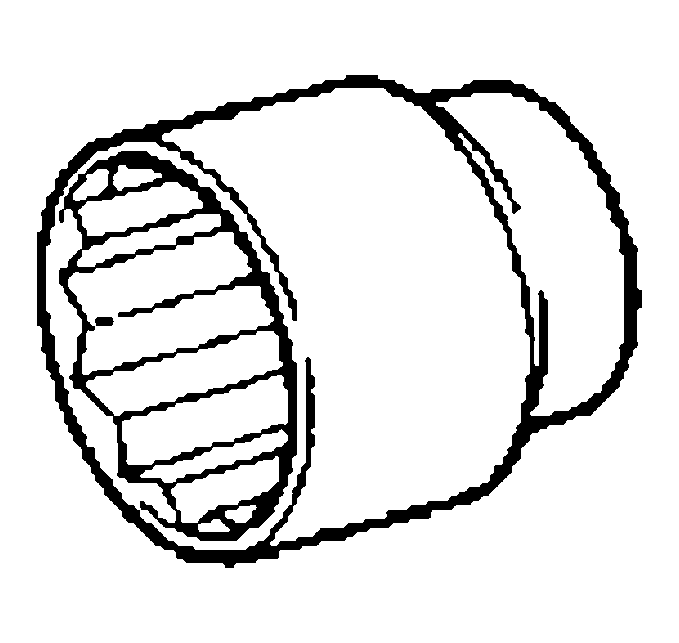

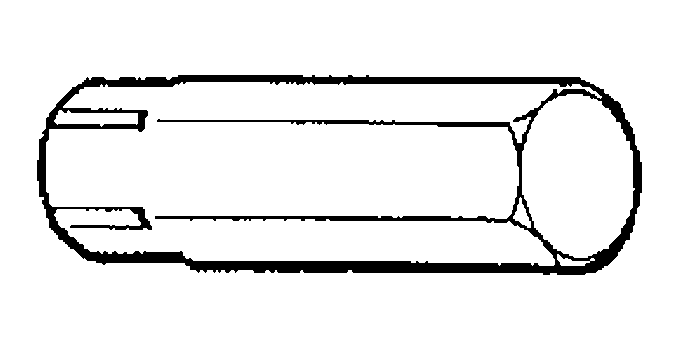

| 09011-12301 | Socket Wrench 30 mm | |

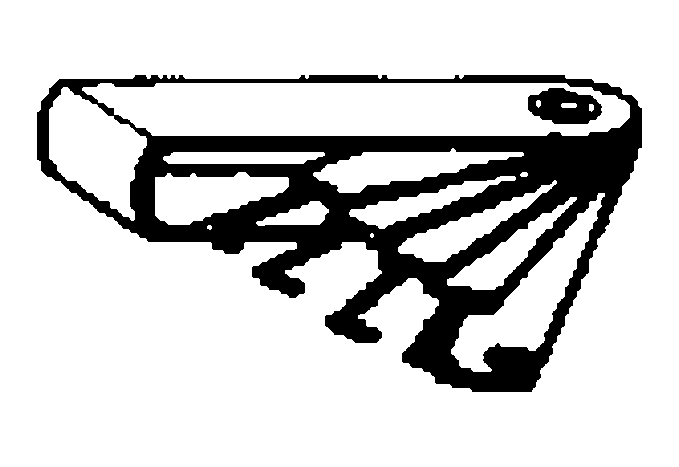

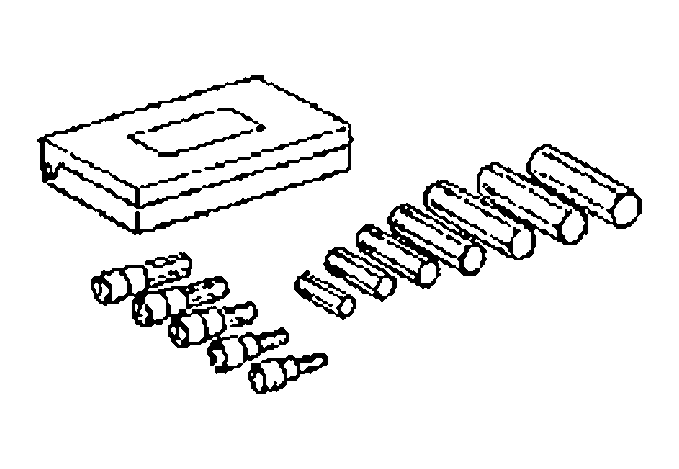

| 09040-00011 | Hexagon Wrench Set | |

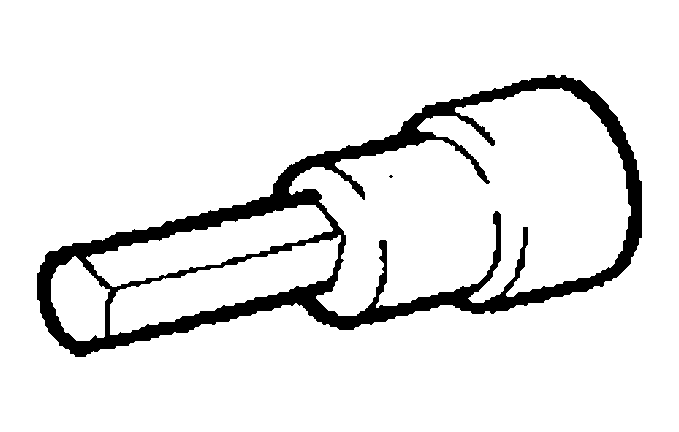

| (09043-20050) | Socket Hexagon Wrench 5 | |

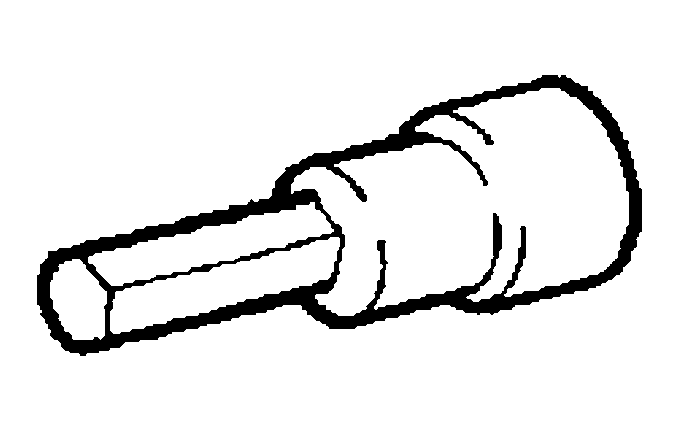

| (09043-20060) | Socket Hexagon Wrench 6 | |

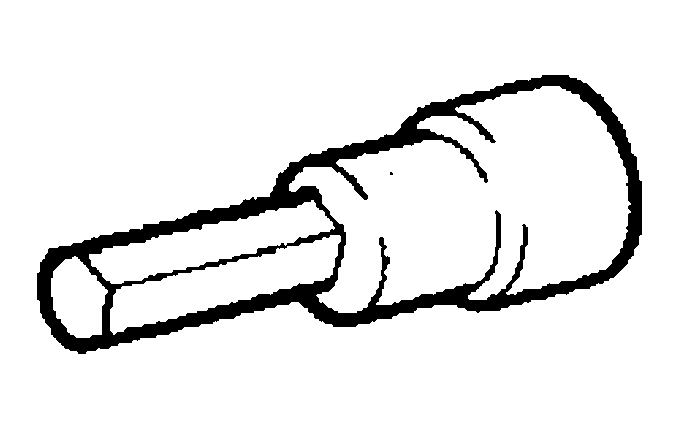

| (09043-20080) | Socket Hexagon Wrench 8 | |
| (09043-20100) | Socket Hexagon Wrench 10 | |
| (09043-30140) | Straight Hexagon Wrench 14 | |

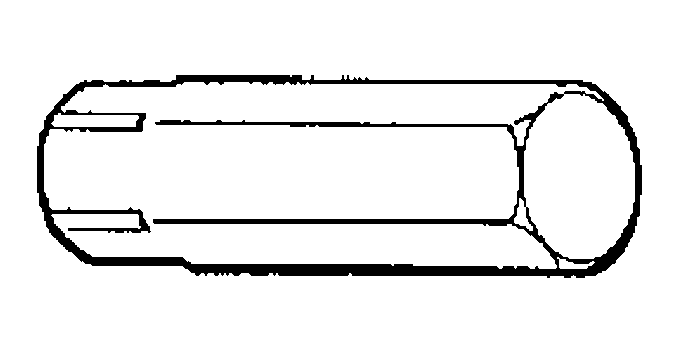

| 09043-30190 | Straight Hexagon Wrench 19 | |

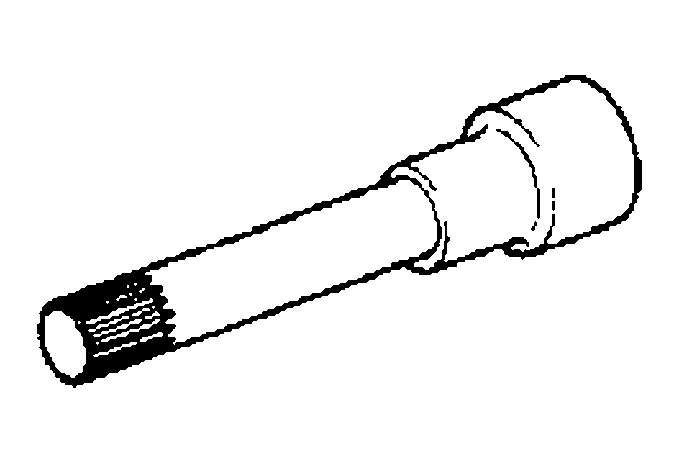

| 09043-50100 | Bi-hexagon Wrench 10 mm | |

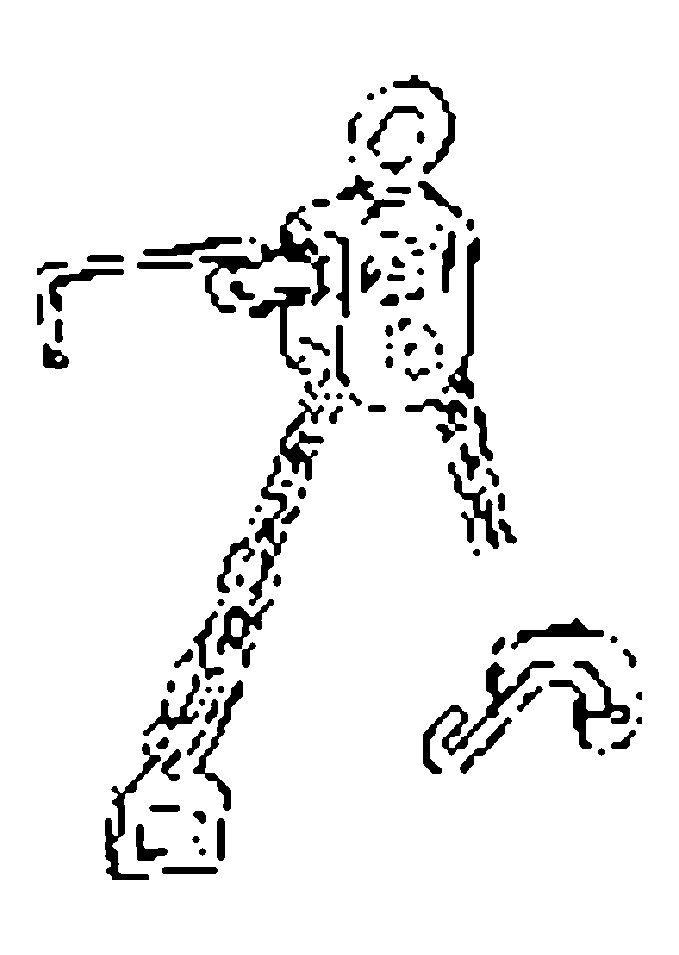

| 09090-04020 | Engine Sling Device | |

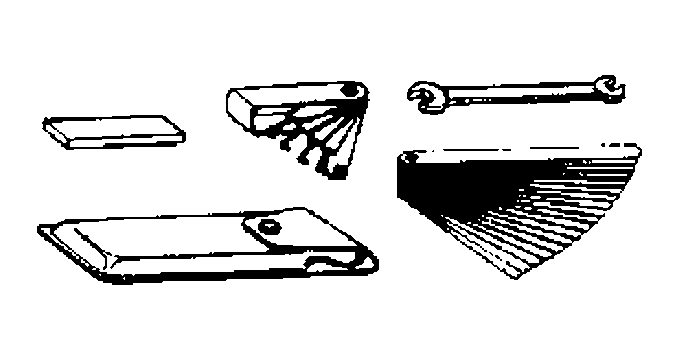

| 09200-00010 | Engine Adjust Kit | |
| (09857-00031) | Spark Plug Gap Gauge |
