2006 Toyota Avalon XLSFACTORY OEM SERVICE PROCEDURE
2GR-FE Cooling: SST
2GR-FE COOLING SSM CHART
| 09213-70011 | Crankshaft Pulley Holding Tool | |
| (09213-70020) | Bolt | |

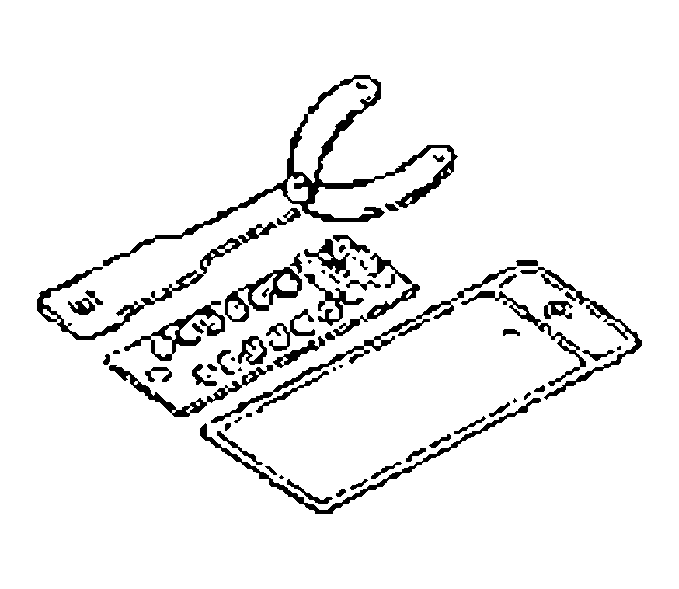

| 09230-01010 | Radiator Service Tool Set | |
| (09231-01010) | Overhaul Handle | |
| (09231-01030) | Claw | |
| 09231-14010 | Punch | |
| 09330-00021 | Companion Flange Holding Tool | |

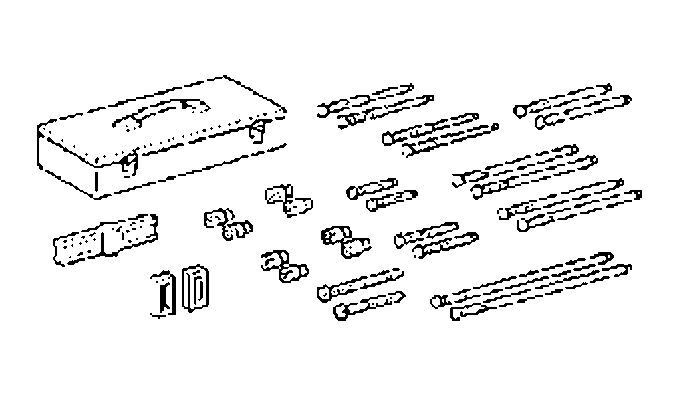

| 09950-50013 | Puller C Set | |
| (09951-05010) | Hanger 150 | |
| (09952-05010) | Slide Arm | |
| (09953-05020) | Center Bolt 150 | |
| (09954-05021) | Claw No.2 | |
| 09960-10010 | Variable Pin Wrench Set | |
| (09962-01000) | Variable Pin Wrench Arm Assembly | |
| (09963-00700) | Pin 7 |
