2006 Toyota Avalon XLSFACTORY OEM SERVICE PROCEDURE
Throttle Body: Removal
- DRAIN ENGINE COOLANT (See COOLANT )
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
- REMOVE V-BANK COVER SUB-ASSEMBLY (See REMOVAL )
- REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE (See REMOVAL )
- SEPARATE WATER BY-PASS HOSE

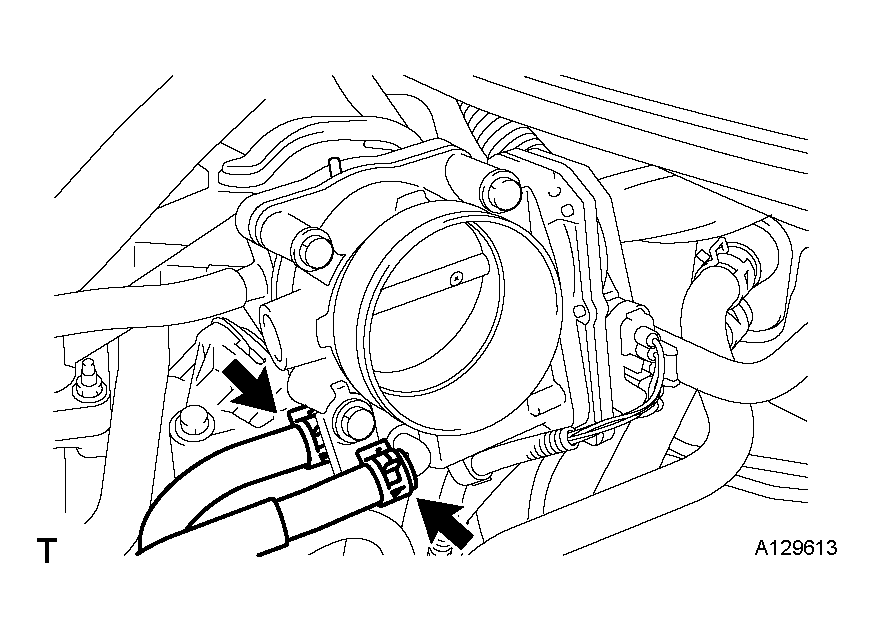

- Disconnect the 2 water by-pass hoses from the throttle w/ motor body assembly.
- REMOVE THROTTLE WITH MOTOR BODY ASSEMBLY

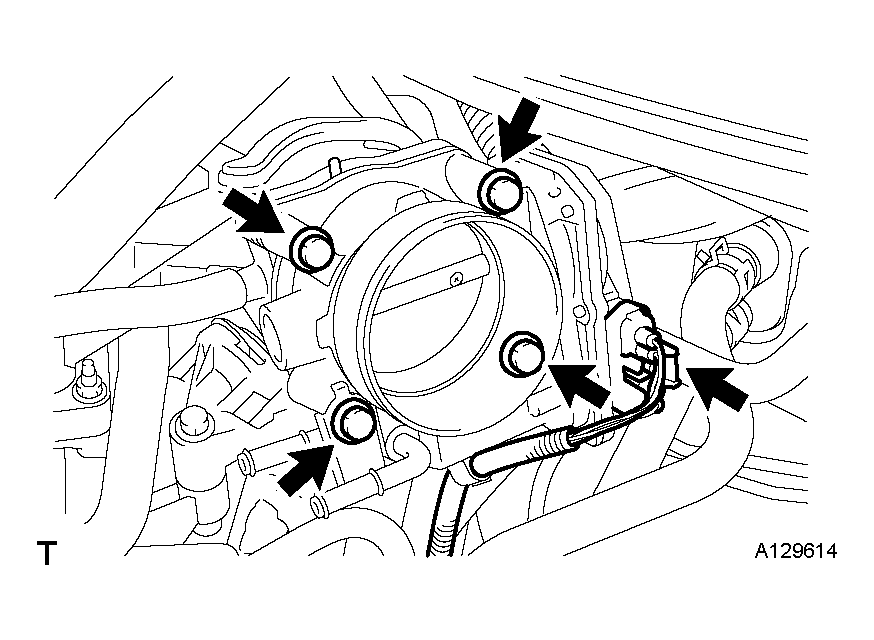

- Disconnect the throttle w/ motor body assembly connector.
- Remove the 4 bolts and throttle w/ motor body assembly from the intake air surge tank.
- Remove the throttle body gasket from the intake air surge tank.
