2006 Toyota Avalon XLSFACTORY OEM SERVICE PROCEDURE

Inspection Procedure

  1. PERFORM ACTIVE TEST BY INTELLIGENT TESTER (VSV FOR AICV)
    1. Turn the ignition switch on (IG) and turn the intelligent tester ON.
    2. Select the following menu items: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST / INTAKE CTL VSV1 and operate the VSV for AICV.
    3. Check the operation of the VSV when the VSV is operated by the intelligent tester.

      Standard

      TESTER CONNECTIONS AND SPECIFIED CONDITIONS

      Tester Operation Specified Condition
      VSV is ON Air from port E flows out through port F
      VSV is OFF Air from port E flows out through the air filter

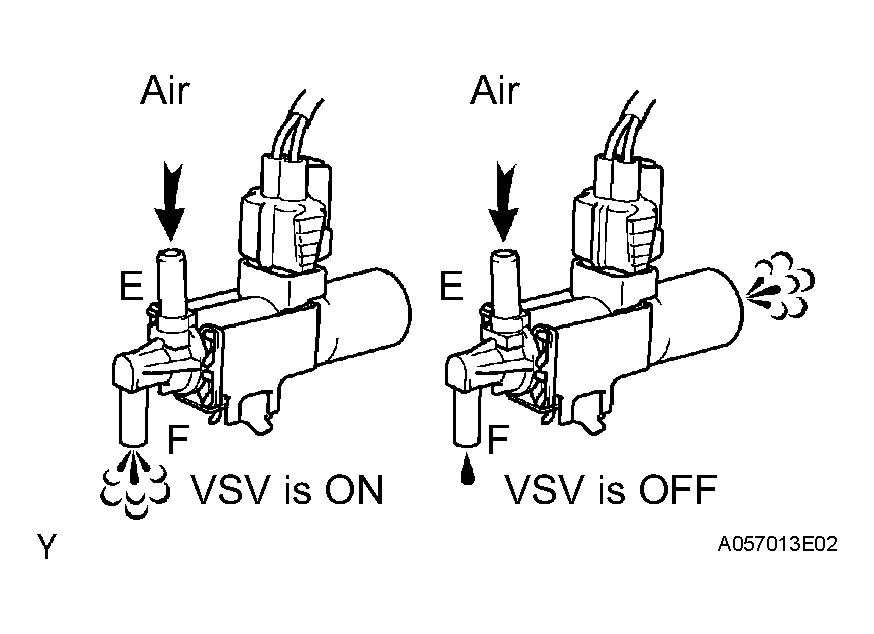

      Fig 1: Testing VSV By Intelligent Tester
      G04375230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to step   4

    NG: Go to next step.

  2. CHECK VSV (FOR AICV)
    1. Inspect the intake air control valve assembly (See ON-VEHICLE INSPECTION ).

    NG: REPLACE INTAKE AIR CONTROL VALVE ASSEMBLY

    OK: Go to next step.

  3. CHECK HARNESS AND CONNECTOR (VSV FOR AICV - ECM, VSV FOR AICV - EFI RELAY)
    1. Check the wire harness between the VSV for AICV connector and the ECM connector.
      1. Disconnect the A13 VSV for AICV connector.
      2. Disconnect the B45 ECM connector.
      3. Measure the resistance between the wire harness side connectors.

        Standard resistance (Check for open)

        TESTER CONNECTIONS AND SPECIFIED CONDITIONS

        Tester Connection Specified Condition
        VSV for AICV (A13-2) - AICV (B45-27) Below 1

        Standard resistance (Check for short)

        TESTER CONNECTIONS AND SPECIFIED CONDITIONS

        Tester Connection Specified Condition
        VSV for AICV (A13-2) or AICV (B45-27) - Body ground 10 k or higher
      4. Reconnect the ECM connector.
    2. Check the wire harness between the VSV for AICV and the EFI relay.
      1. Remove the engine room junction block.
      2. Measure the resistance between the wire harness side connectors.

        Standard resistance (Check for open)

        TESTER CONNECTIONS AND SPECIFIED CONDITIONS

        Tester Connection Specified Condition
        VSV for AICV (A13-1) - engine room junction block (EFI relay) (1D-5) Below 1
      3. Reconnect the VSV for AICV connector.
      4. Reinstall the engine room junction block.

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

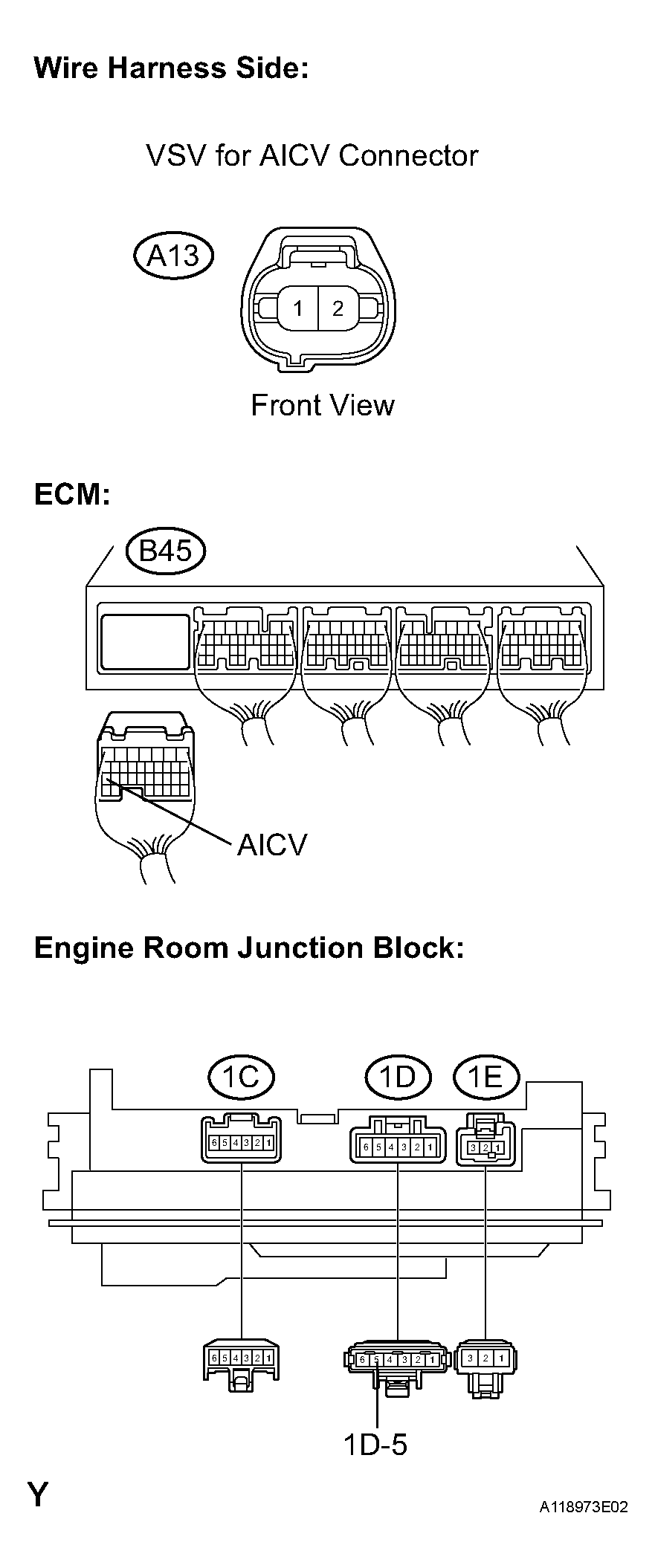

    Fig 2: Disconnecting B45 ECM Connector
    G04375231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to next step.

  4. INSPECT VACUUM TANK
    1. Inspect the vacuum tank (See SYSTEM DIAGRAM ).

    NG: REPAIR OR REPLACE AIR CLEANER CAP

    OK: REPLACE ECM
