2006 Toyota Avalon XLSFACTORY OEM SERVICE PROCEDURE
Knock Sensor: Removal
- PREVENT GASOLINE FROM SPILLING OUT
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
- DRAIN ENGINE COOLANT (See COOLANT )
- REMOVE WINDSHIELD WIPER MOTOR & LINK ASSEMBLY (See REMOVAL )
- REMOVE COWL TOP PANEL OUTER (See ON-VEHICLE INSPECTION )
- REMOVE V-BANK COVER SUB-ASSEMBLY (See REMOVAL )
- REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE (See REMOVAL )
- REMOVE INTAKE AIR SURGE TANK (See REMOVAL )
- REMOVE INTAKE MANIFOLD

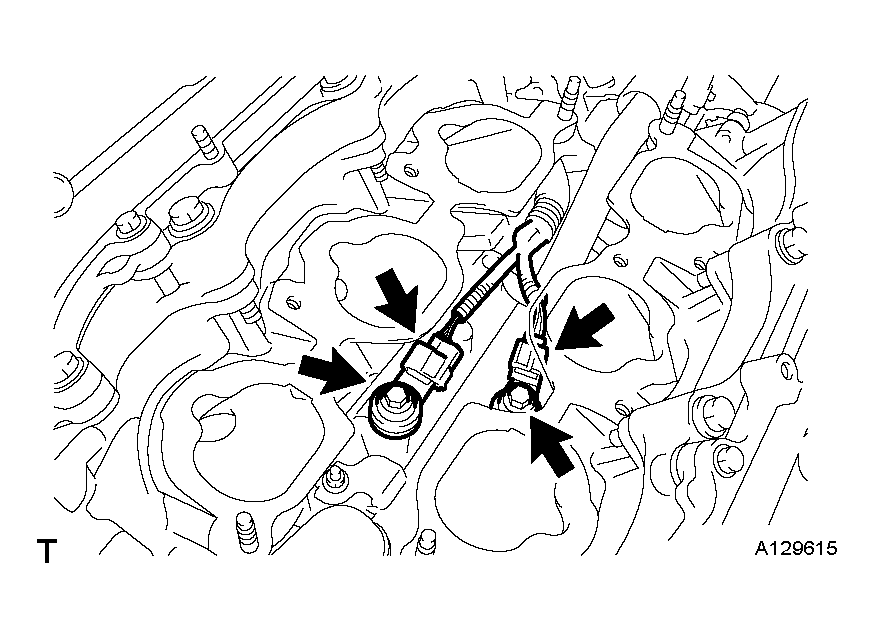

- REMOVE KNOCK CONTROL SENSOR
- Disconnect the 2 knock control sensor connectors.
- Remove the 2 bolts and 2 knock control sensors.
