2006 Toyota Avalon XLSFACTORY OEM SERVICE PROCEDURE
Engine Control System: ECM: Removal
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
- REMOVE FRONT DOOR SCUFF PLATE RH (See REMOVAL )
- REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH (See REMOVAL )
- REMOVE INSTRUMENT PANEL UNDER COVER SUBASSEMBLY NO.2 (See REMOVAL )
- REMOVE INSTRUMENT PANEL FINISH LOWER PANEL RH (See REMOVAL )
- REMOVE ECM
- Disconnect the 5 connectors from the ECM.

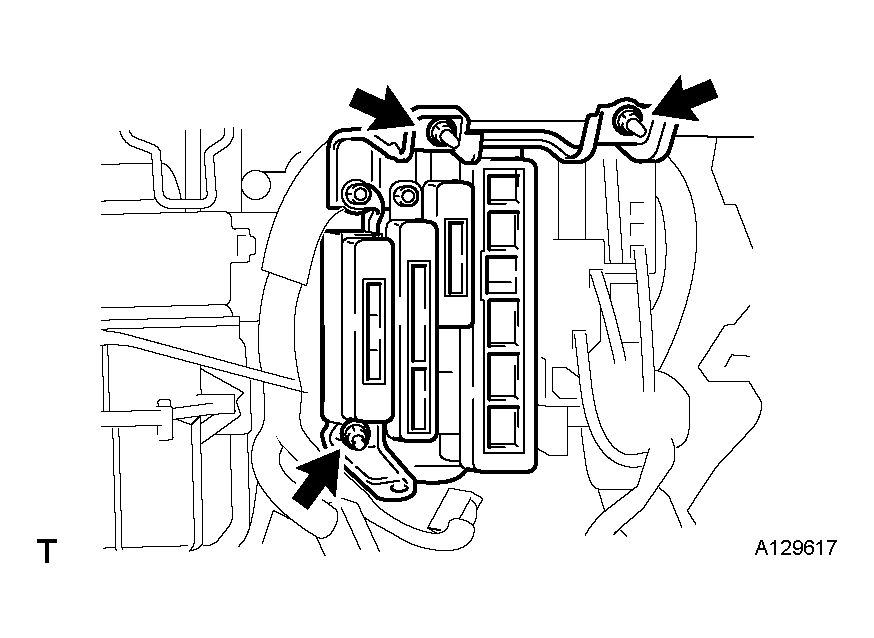

- Remove the 2 nuts, bolt and ECM.
- Remove the 2 screws to separate the ECM bracket from the ECM.
- Remove the 2 screws to separate the ECM bracket No. 2 from the ECM.
