Air Fuel Ratio Sensor Relay: Inspection
- INSPECT AIR FUEL RATIO SENSOR RELAY
- Inspect A/F relay
- Using an ohmmeter, measure the resistance between the terminals.
Resistance

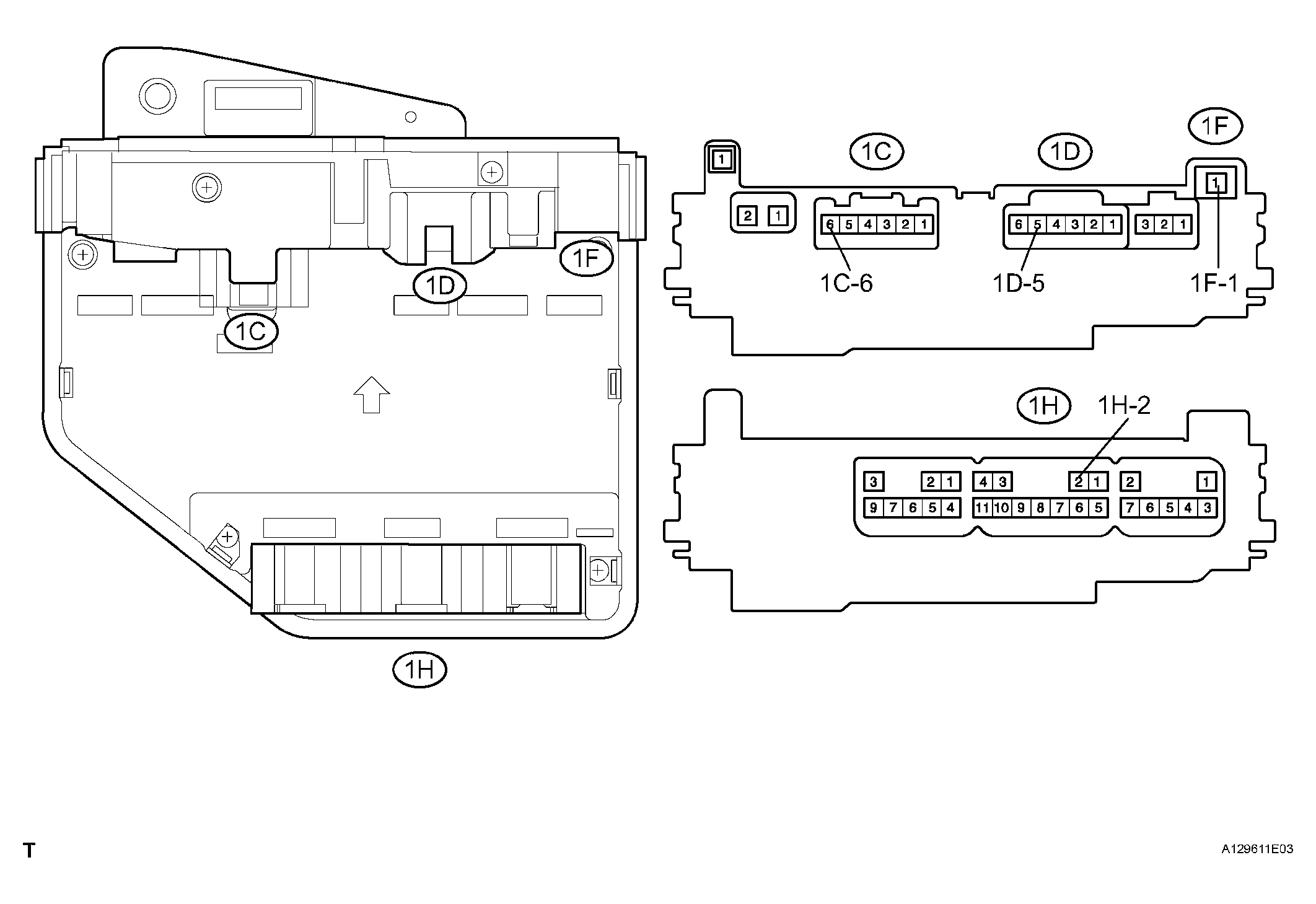

TESTER CONNECTIONS AND SPECIFIED CONDITIONSTester Connection Specified Condition 1F-1 - 1C-6 10 k or higher 1F-1 - 1C-6 Below 1
(Apply battery voltage to terminals 1D-5 and 1H-2)If the result is not as specified, replace the engine room junction block assembly.
