2005 Toyota Sienna CEFACTORY OEM SERVICE PROCEDURE

Fuel System: Inspection

INSPECT FUEL INJECTOR ASSY
1. Inspect injector resistance
  1. Using an ohmmeter, measure the resistance between the terminals.
  Resistance: 13.4 to 14.2 Ω at 20°C (68°F)

  If the resistance is not as specified, replace the injector.
2. Inspect injector operation.
  CAUTION: This test involves high-pressure fuel and electricity. Take every precaution regarding safe handling of both the fuel and the electricity. Preform this test in a safe area, and avoid any sparks or flame. Do not smoke.
  1. Obtain new No. 1 fuel pipe (part No. 23801-20171) and remove the fuel tube connector from the pipe.

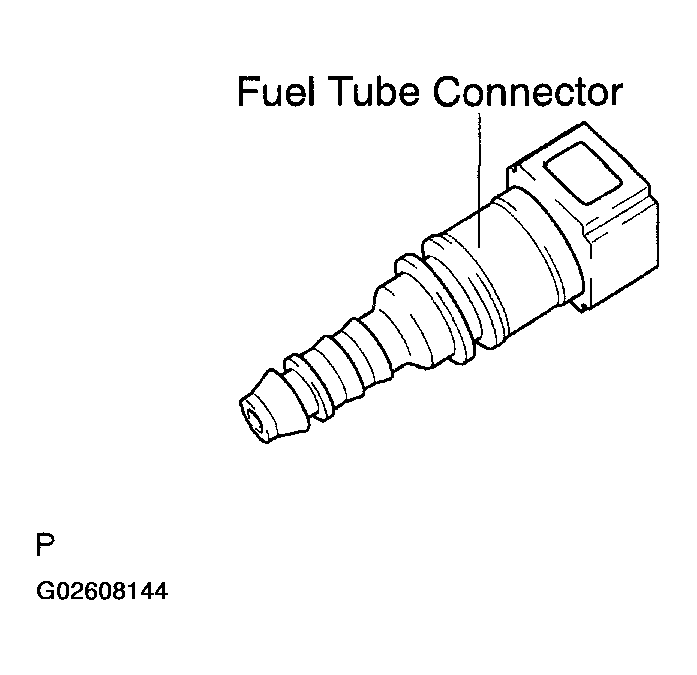

    Fig 1: Removing Fuel Tube Connector From Pipe
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Install the fuel tube connector to SST (hose), then connect the tube connector and the fuel pipe.
    SST 09268-41047 (95336-08070)

    CAUTION: Connect the fuel tube connector (quick type) after observing the precautions.
