Knock Sensor: Inspection
- REMOVE ENGINE FROM VEHICLE (See REMOVAL )
- REMOVE INTAKE MANIFOLD AND THROTTLE BODY ASSEMBLY (See REMOVAL )
- REMOVE KNOCK SENSOR
- Disconnect the knock sensor connector.
- Remove the nut and knock sensor.
- INSPECT KNOCK SENSOR

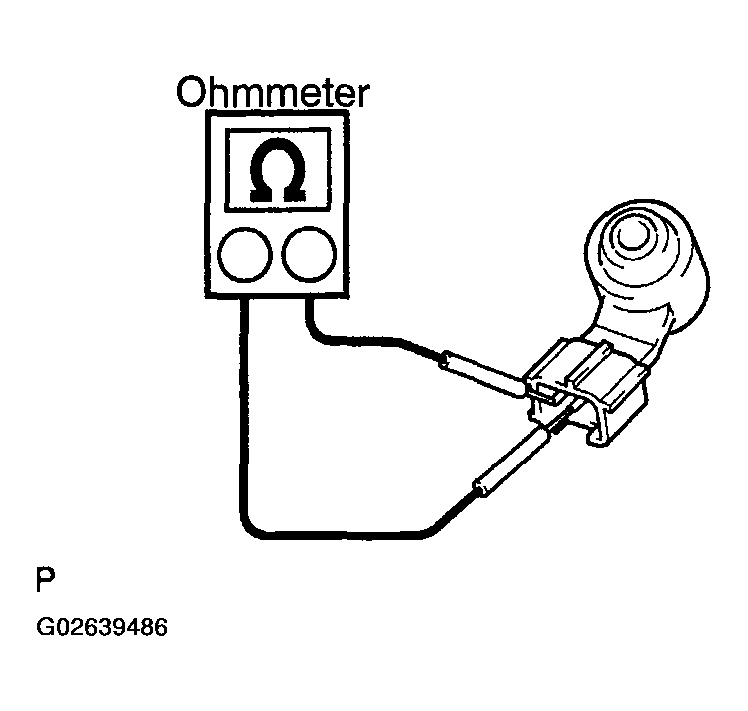

Using an ohmmeter, make sure there is continuity between the terminals.
If there is no continuity, replace the sensor.
- REINSTALL KNOCK SENSOR

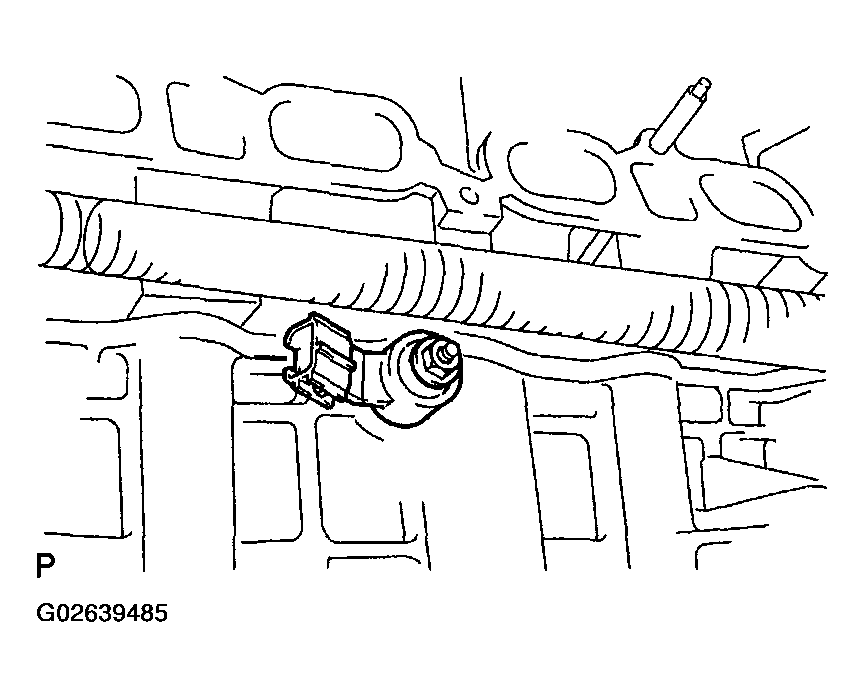

- Install the knock sensor with the nut.
Torque: 20 N.m (204 kgf.cm, 15 ft.lbf)
HINT:

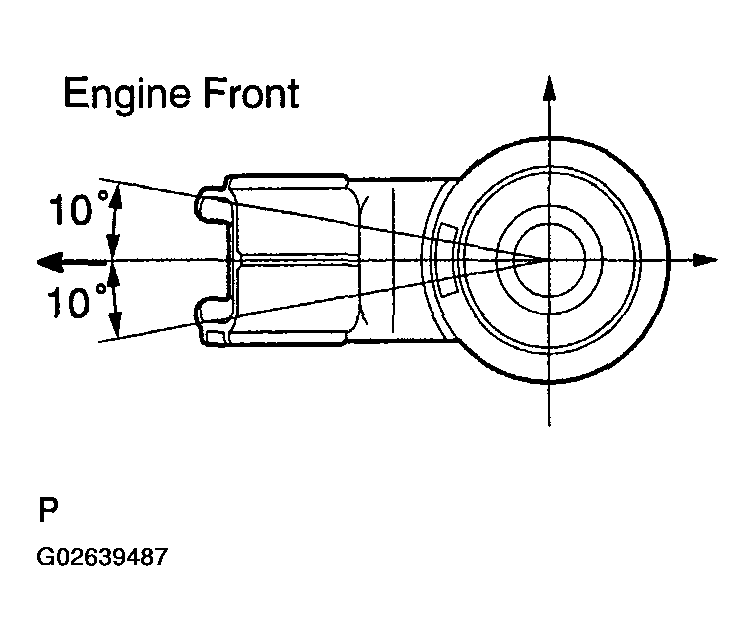

Angling the knock sensor below the horizontal (below 0°) is recommended.
- Connect the knock sensor connector.
- Install the knock sensor with the nut.
- REINSTALL INTAKE MANIFOLD AND THROTTLE BODY ASSEMBLY (See INSTALLATION )
- INSTALL ENGINE TO VEHICLE (See INSTALLATION )
