2005 Toyota RAV4 SportFACTORY OEM SERVICE PROCEDURE

SFI System: Injector: Removal

  1. DISCONNECT PCV HOSE
  2. REMOVE AIR CLEANER INLET AND AIR CLEANER ASSEMBLY WITH MAF METER
    1. Disconnect the MAF meter connector.
    2. Disconnect the VSV hose for CCV.
    3. Remove the 3 bolts and air cleaner assembly, air cleaner inlet, MAF meter together in one piece.
  3. REMOVE INJECTORS
    1. Disconnect the 4 injector connectors.
    2. Remove the 2 bolts holding the delivery pipe to the cylinder head.

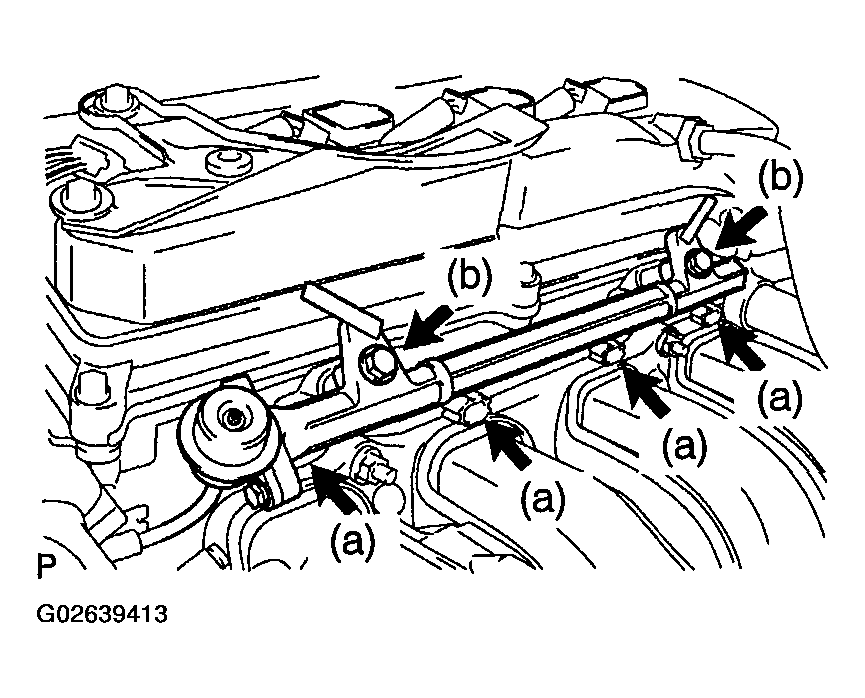

      3. Fig 1: Removing Injectors & Delivery Pipe From Cylinder Head
      G02639413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the delivery pipe together with the 4 injectors from the cylinder head.
      NOTE: Be careful not to drop the injectors when disconnecting the delivery pipe.
    4. Remove the 2 spacers and 4 grommets.
    5. Pull out the 4 injectors from the delivery pipe.
    6. Remove the O-ring from each injector.
