Fuel Pump: Replacement
- REMOVE LH REAR SEAT
- REMOVE FLOOR SERVICE HOLE COVER
- DISCONNECT FUEL PUMP & SENDER GAUGE CONNECTOR
- DISCONNECT VAPOR PRESSURE SENSOR CONNECTOR
- DISCONNECT FUEL TANK MAIN TUBE CAUTION:
- Disconnect the fuel tube connector (quick type) observing the precaution (see SFI SYSTEM ).
- As there is retained pressure in the fuel line, prevent it from splashing inside the luggage compartment.

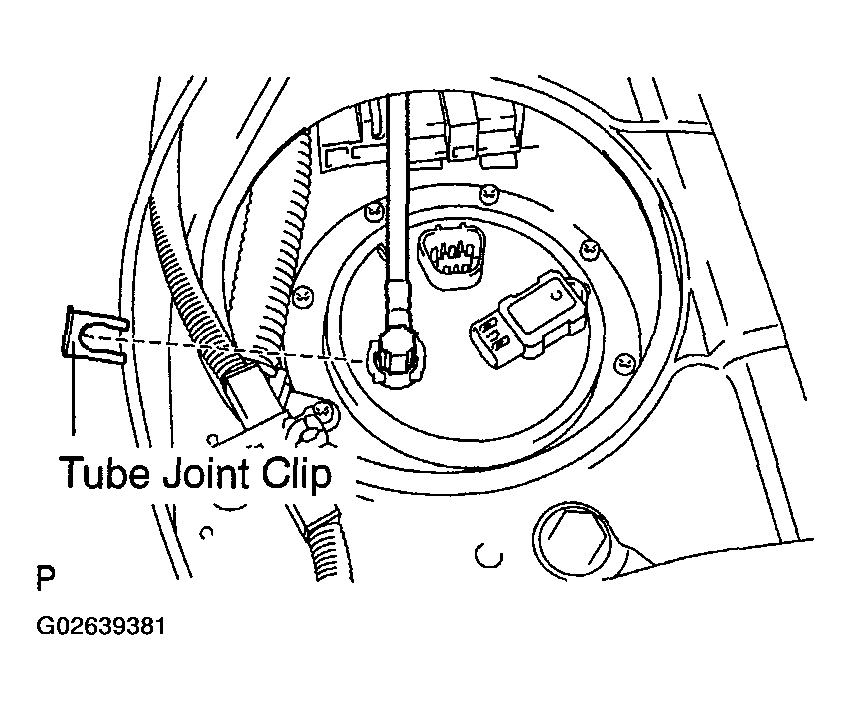

Remove the tube joint clip and disconnect the main tube.
- REMOVE FUEL PUMP AND SENDER GAUGE ASSEMBLY FROM FUEL TANK

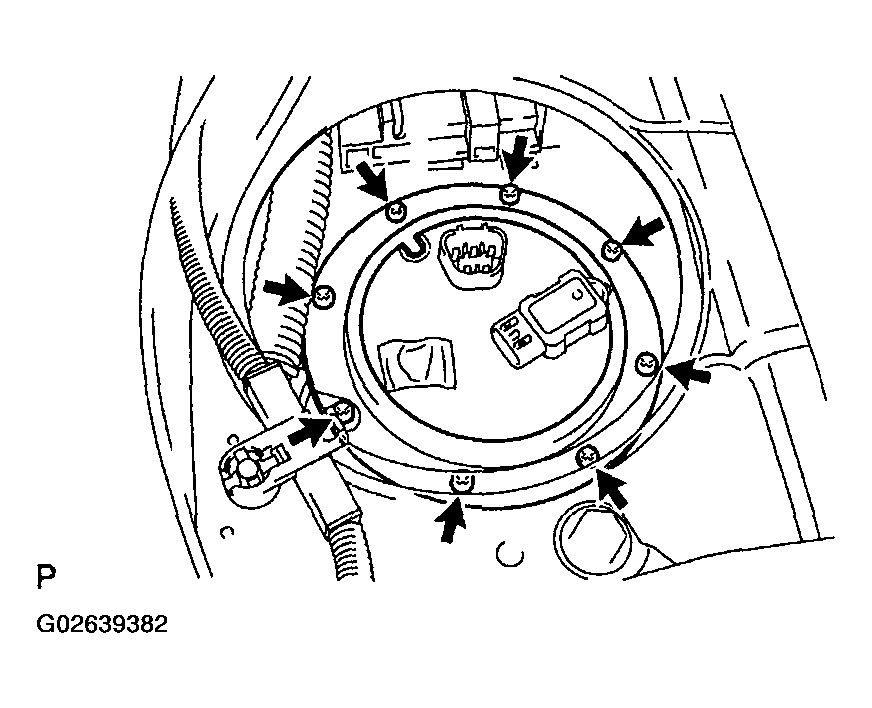

- Remove the 8 bolts and fuel tank vent tube set plate.

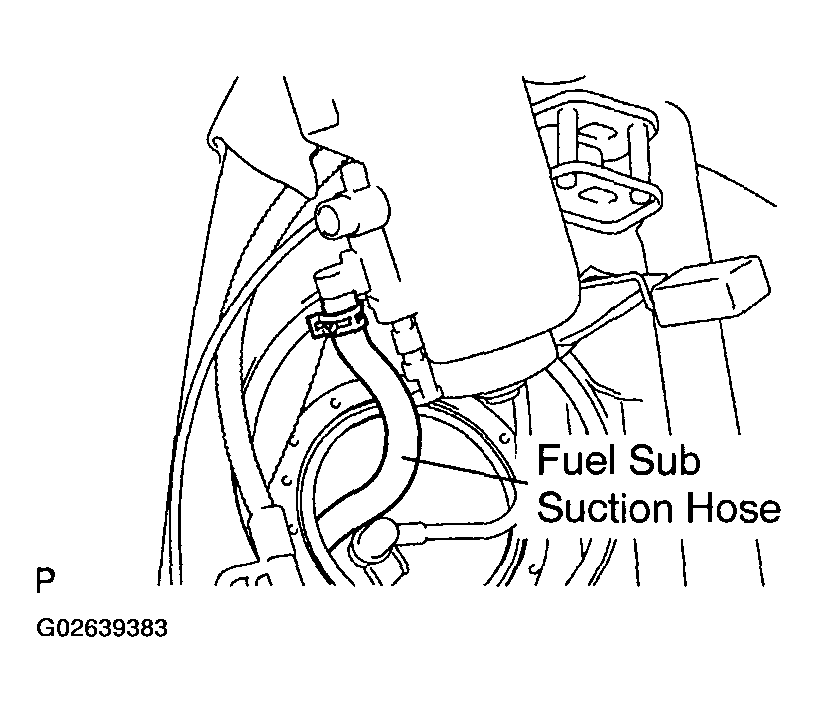

- Lift up the fuel pump and sender gauge assembly, and disconnect the fuel sub suction hose from the fuel return jet tube. Remove the fuel pump, sender gauge assembly and gasket.
