2005 Toyota PriusFACTORY OEM SERVICE PROCEDURE

Ignition System (1NZ-FXE): Inspection

  1. INSPECT SPARK PLUG
    NOTE:
    • Do not clean the spark plug with a wire brush.
    • Do not adjust the gap of the used spark plug.
    1. Clean the spark plug.
      1. Using a spark plug cleaner, clean the spark plug.
        AIR PRESSURE REFERENCE

        Air Pressure Duration
        588 kPa (6.0 kgf/cm2,85 psi ) 20 second or shorter

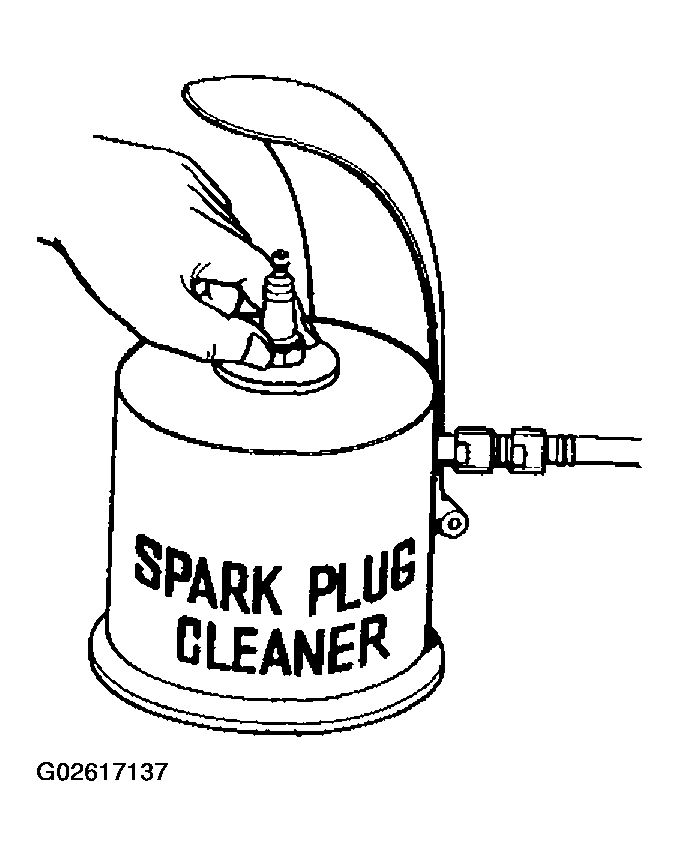

        Fig 1: Cleaning Spark Plug
        G02617137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        • If the electrode is wet, dry it first, then clean it with a spark plug cleaner.
        • If the spark plug is wet with oil, remove the oil with gasoline before using a spark plug cleaner.
    2. Check the appearance.
      1. Check that the threads or insulator of the spark plug are not damaged.

        Recommends spark plug:

        SPARK PLUG SPECIFICATION

        Supplier Type
        DENSO SK16R11
        NGK IFR5A11

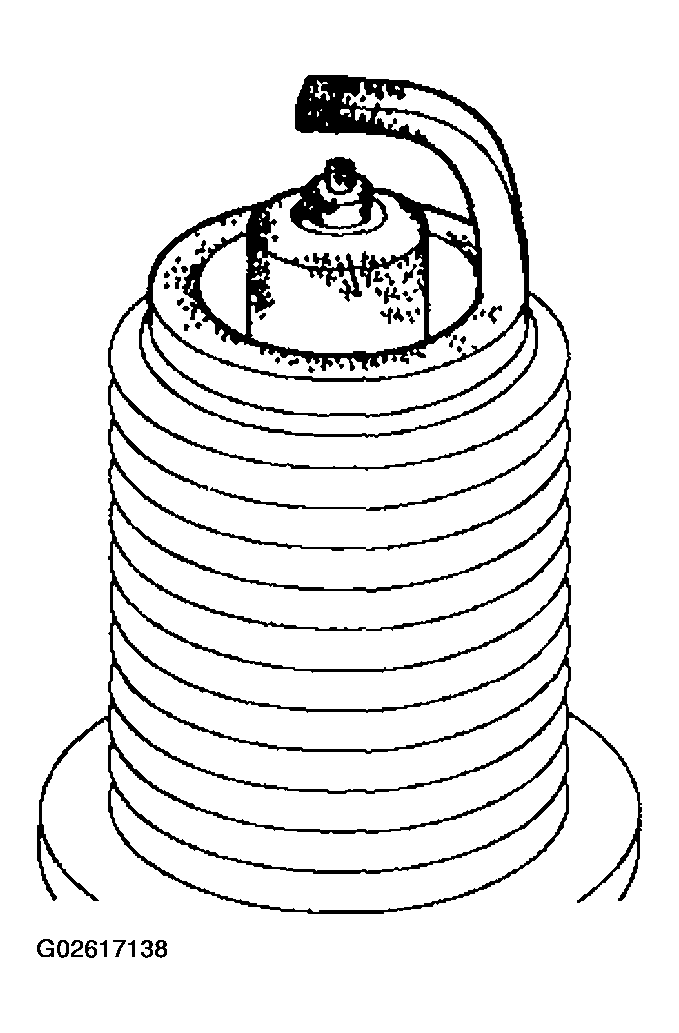

        Fig 2: Checking Appearance
        G02617138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Inspect the gap.
      1. Using a spark plug gap gauge, measure the gap of the spark plug.

        Standard: 1.0 to 1.1 mm (0.039 to 0.043 in.)

        Maximum: 1.2 mm (0.047 in.)

        If the gap is greater than maximum, replace the spark plug.

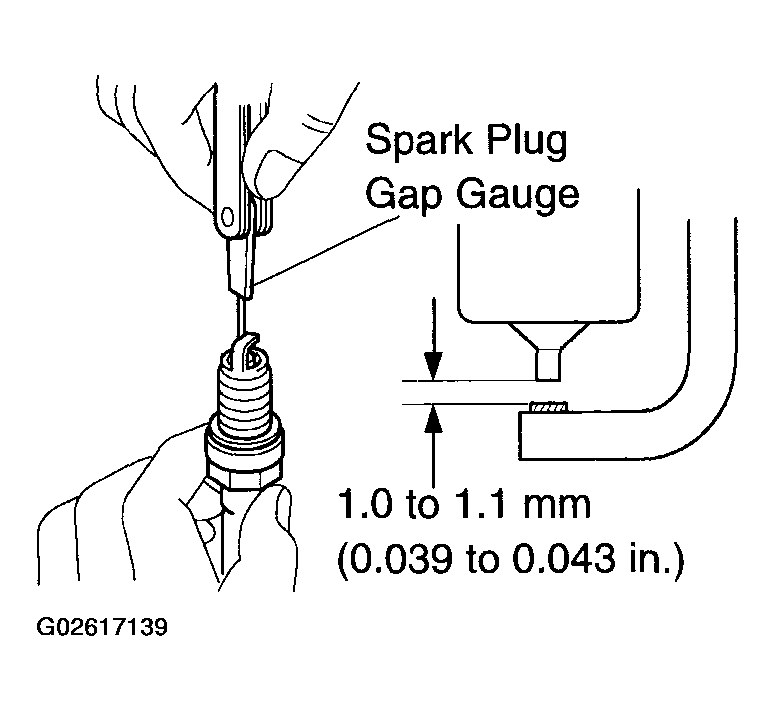

        Fig 3: Inspecting Gap
        G02617139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT CAMSHAFT POSITION SENSOR
    1. Inspect the resistance.
      1. Using an ohmmeter, measure the resistance between the terminals.

        Standard:

        RESISTANCE CHECK SPECIFIED CONDITION

        Tester Connection Specified Condition
        1 (G+) - 2 (G-) 1,630 to 2,740 Ω (Hot)
        1 (G+) - 2 (G-) 2,065 to 3,225 Ω (Cold)

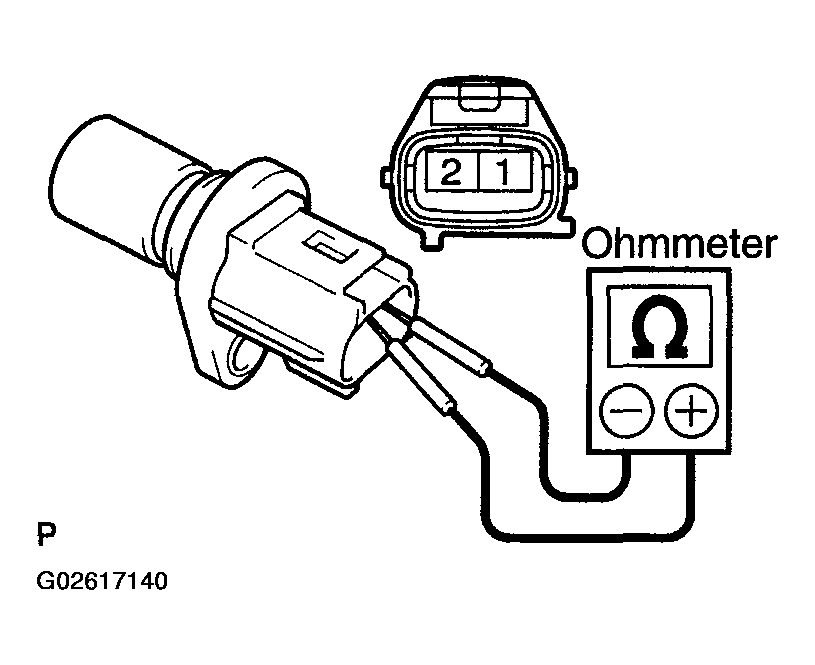

        Fig 4: Inspecting Camshaft Position Sensor
        G02617140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
