2005 Toyota PriusFACTORY OEM SERVICE PROCEDURE

Inspection Procedure

  1. CHECK SMART BACK DOOR UNLOCK FUNCTION OPERATES
    1. Check that the smart back door unlock function operates normally.

      OK: Smart back door unlock function operates normally.

    1. NG: OTHER PROBLEM (See  PROBLEM SYMPTOMS TABLE   )
    2. OK: GO TO NEXT STEP
  2. CHECK WIRE HARNESS (LUGGAGE ELECTRICAL KEY OSCILLATOR (INNER) - BATTERY AND BODY GROUND)
    1. Disconnect the L6 connector.
    2. Measure the resistance and voltage of the wire harness side connector.

      Standard:

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      L6-1 (+B) - Body ground 10 to 14V
      L6-5 (GND) - Body ground Below 1 Ω

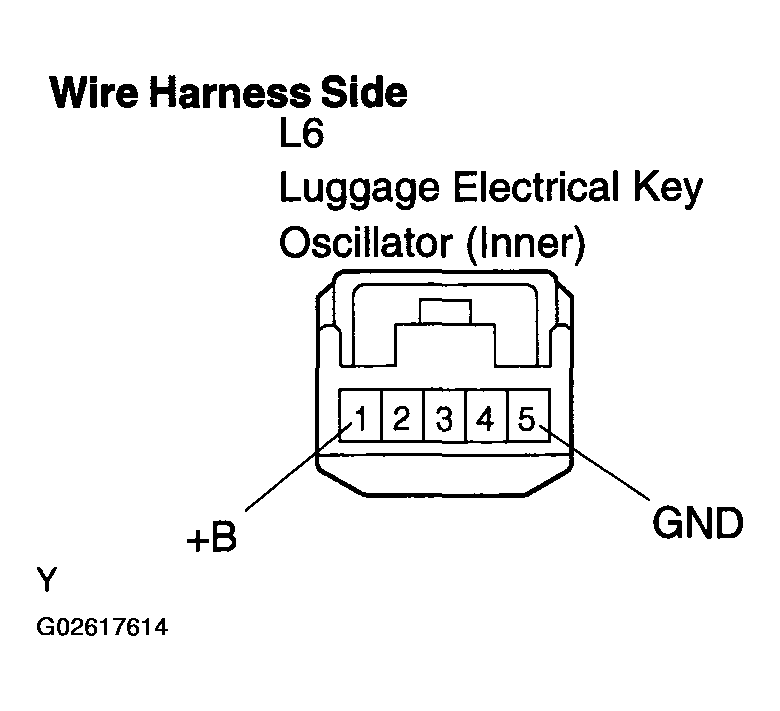

      Fig 1: Identifying Wire Harness (Luggage Electrical Key Oscillator (Inner) - Battery And Body Ground)
      G02617614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK: GO TO NEXT STEP
  3. PERFORM ACTIVE TEST (LUGGAGE ELECTRICAL KEY OSCILLATOR (INNER))
    1. Connect the hand-held tester (with CAN VIM) to the DLC3.
    2. Turn the power switch from OFF to ON (IG) and press the hand-held tester main switch ON.
    3. Select the item below in the ACTIVE TEST, and then check that the oscillator (inner) operates.

      Smart key ECU:

      ACTIVE TEST (SMART KEY ECU)

      Item Test Details Diagnostic Note
      IN BDR TRNSMTTR Back door inner transmitter ON/OFF

      OK: ON (transmitter is in luggage room) appears on the screen.

    1. NG: CHECK WIRE HARNESS
    2. OK: GO TO NEXT STEP

      REPLACE LUGGAGE ELECTRICAL KEY OSCILLATOR (INNER)

  4. CHECK WIRE HARNESS (SMART KEY ECU ASSY - LUGGAGE ELECTRICAL KEY OSCILLATOR (INNER))
    1. Disconnect the S11 ECU connector.
    2. Disconnect the L6 oscillator connector.
    3. Measure the resistance of the wire harness side connectors.

      Standard:

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      S11-38 (CLG7) - L6-3 (CLG) Below 1 Ω
      S11-38 (CLG7) or L6-3 (CLG)-Body ground 10 kΩ or higher

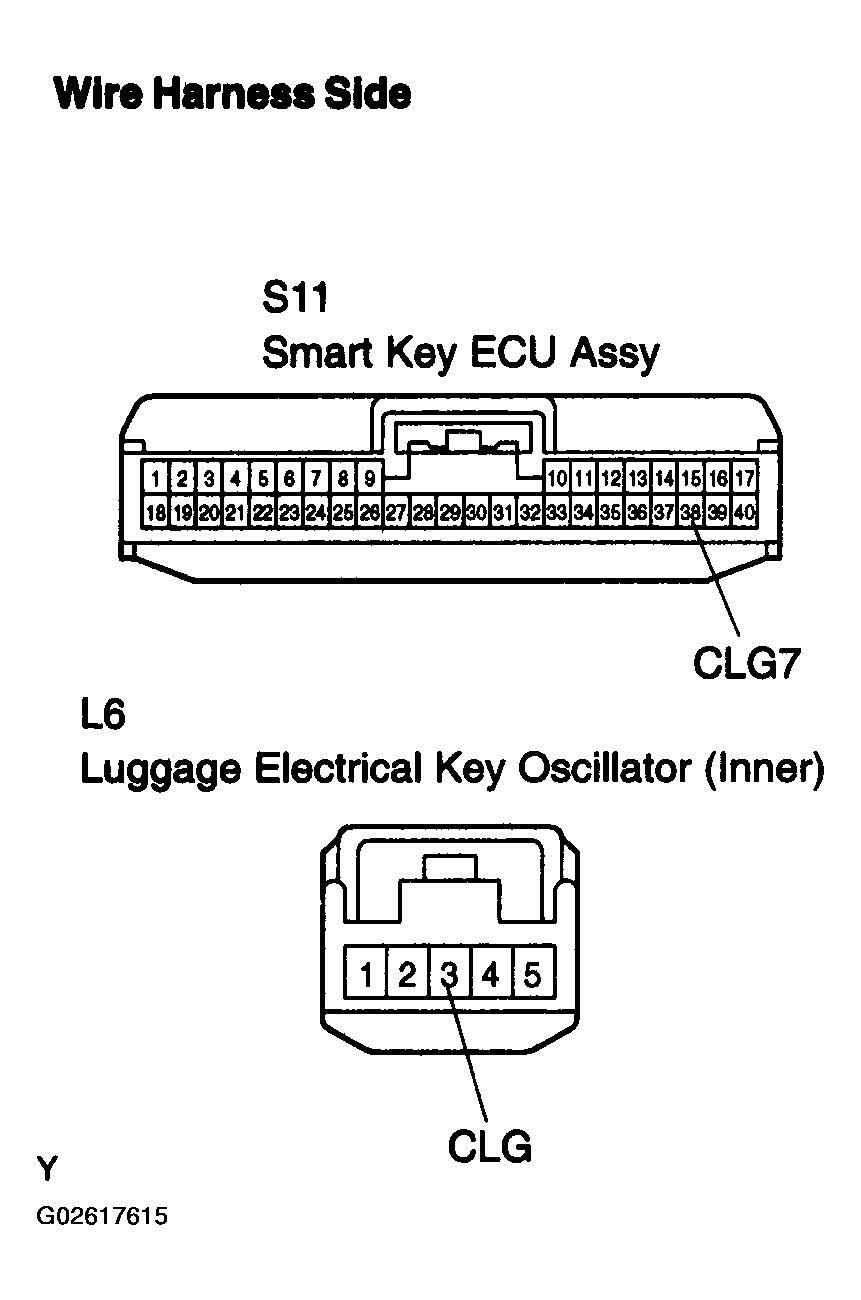

      Fig 2: Identifying Wire Harness (Smart Key ECU Assembly - Luggage Electrical Key Oscillator (Inner))
      G02617615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK: GO TO NEXT STEP

      REPLACE SMART KEY ECU ASSY
