Electronic Circuit Inspection Procedure
- BASIC INSPECTIONÂ
- RESISTANCE MEASURING CONDITION OF ELECTRONIC PARTS
- Unless stated, all resistance measurements should be made at an ambient temperature of 20°C (68°F). Resistance measurements may be outside the specifications if measured at high temperatures, i.e. immediately after the vehicle has been running. Measurements should be made after the engine has cooled down.
- HANDLING CONNECTORS

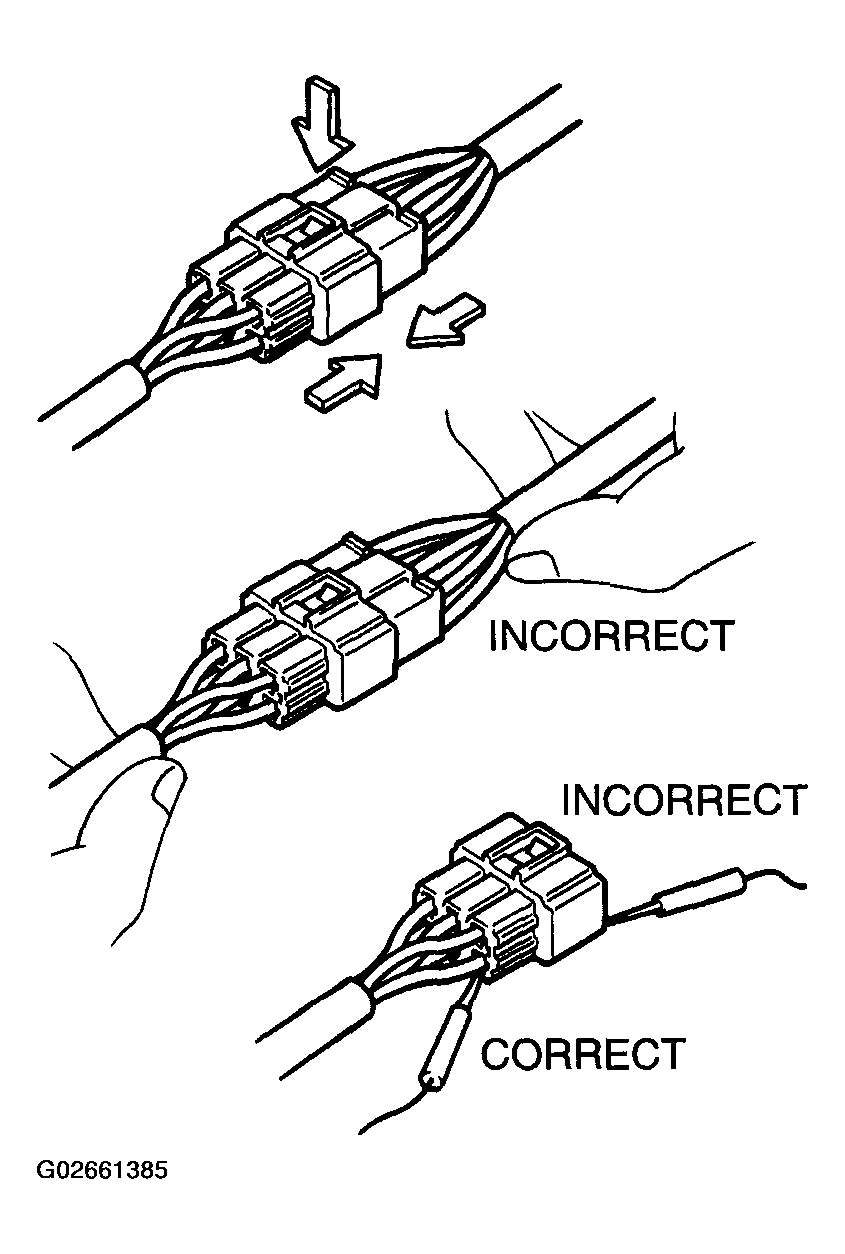

- When disconnecting a connector, first squeeze the mating halves tightly together to release the lock, then press the lock claw and separate the connector.
- When disconnecting a connector, do not pull on the harnesses. Grasp the connector directly and separate it.
- Before connecting the connector, check that there are no deformed, damaged, loose or missing terminals.
- When connecting a connector, press firmly until you hear the lock close with a "click" sound.
- If checking the connector with a TOYOTA electrical tester, check the connector from the backside (harness side) using a mini test lead.
NOTE:- As a waterproof connector cannot be checked from the backside, check by connecting a sub-harness.
- Do not damage the terminals by moving the inserted tester needle.
- CHECKING CONNECTORS
- Checking when a connector is connected: Squeeze the connector together to confirm that it is fully connected and locked.
- Checking when a connector is disconnected: Check by pulling the wire harness lightly from the backside of the connector. Look for unlatched terminals, missing terminals, loose crimps or broken conductor wires.
Check visually for corrosion, metallic or foreign objects and water; and bent, rusted, overheated, contaminated, and deformed terminals.
- RESISTANCE MEASURING CONDITION OF ELECTRONIC PARTS
