2005 Toyota Matrix XR, FWD, StandardFACTORY OEM SERVICE PROCEDURE

Terminals Of Ecu

  1. INSPECT TVIP ECU

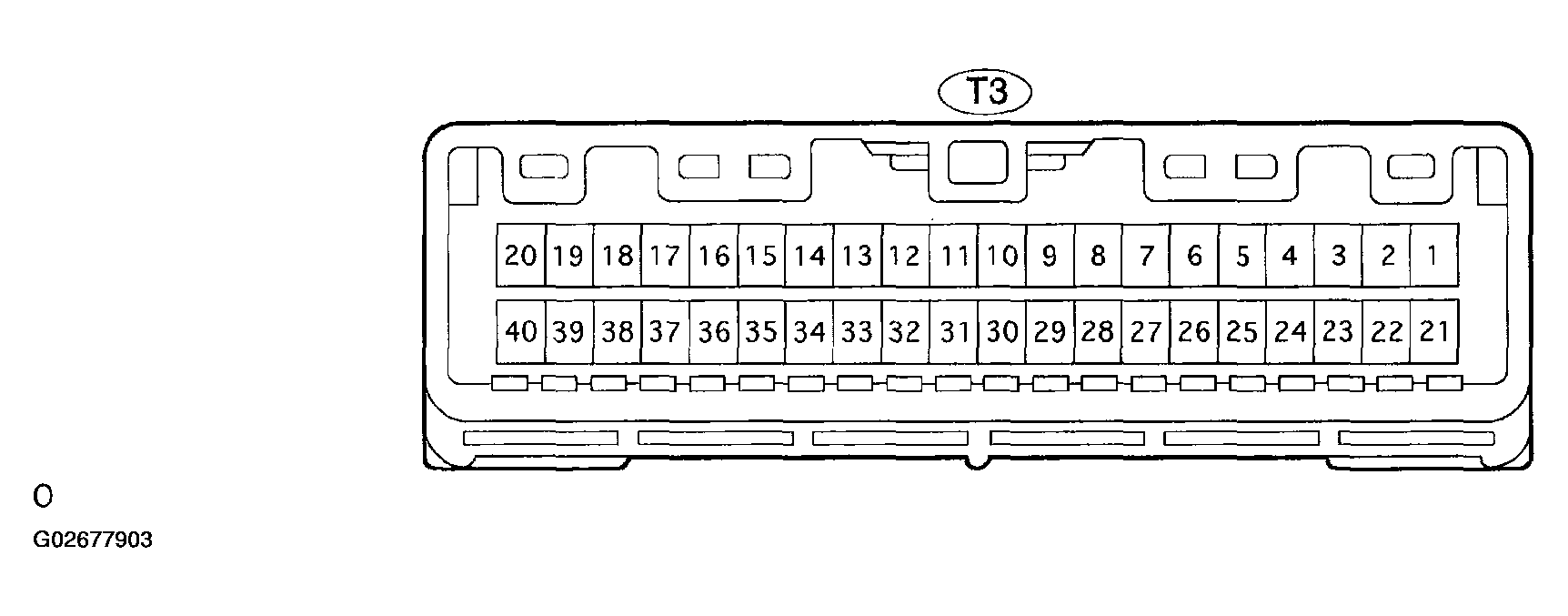

    Fig 1: Identifying TVIP ECU Terminal Connector
    G02677903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the T3 ECU connector.
    2. Measure the resistance and voltage of the connector.

      Standard:

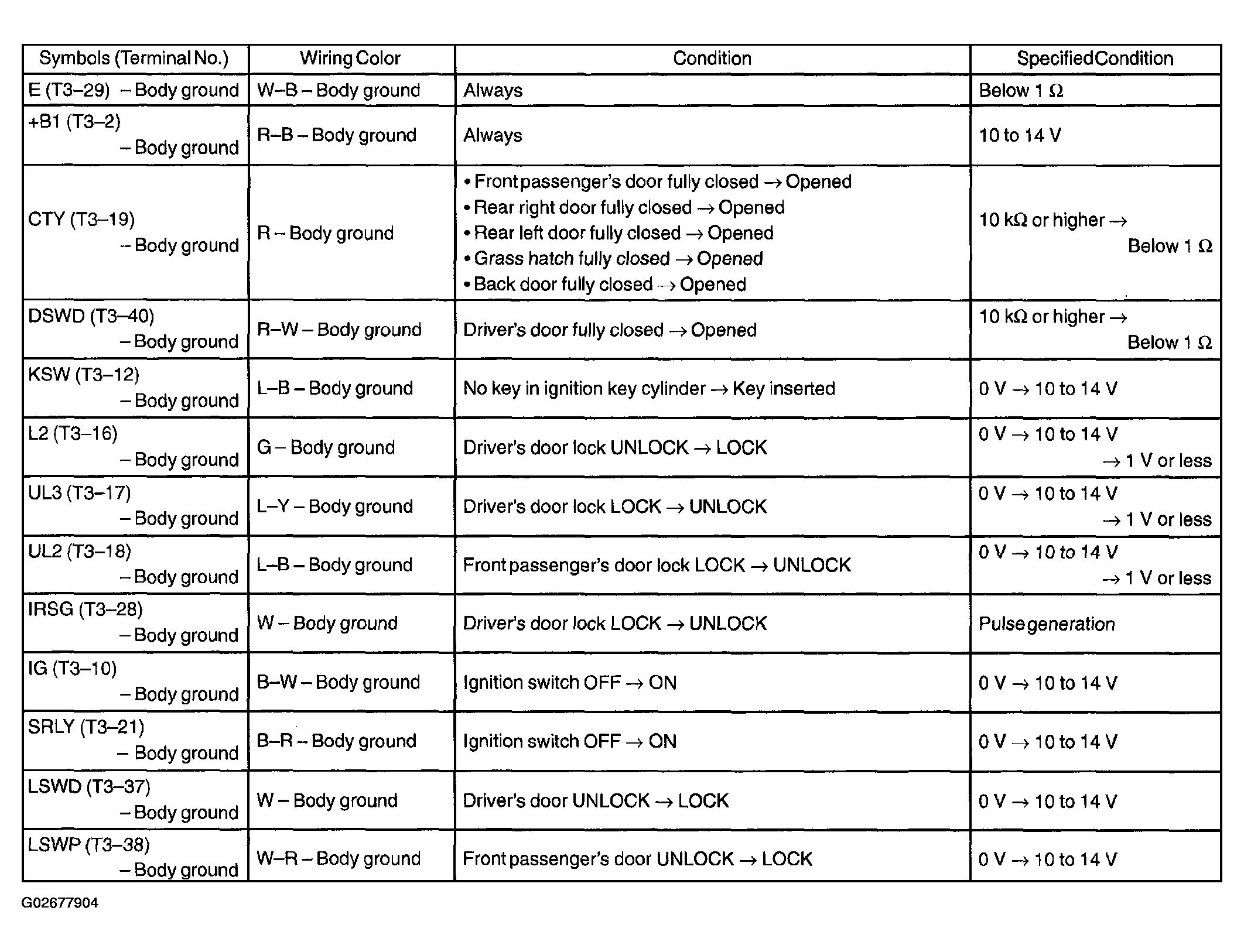

      Fig 2: Identifying Wiring Color Condition Chart (1 Of 2)
      G02677904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If the result is not as specified, there may be a malfunction on the wire harness side.

      1. Reconnect the T3 ECU connector. Measure the resistance of the terminals.
      2. Measure the resistance and voltage of connectors.

    Standard:

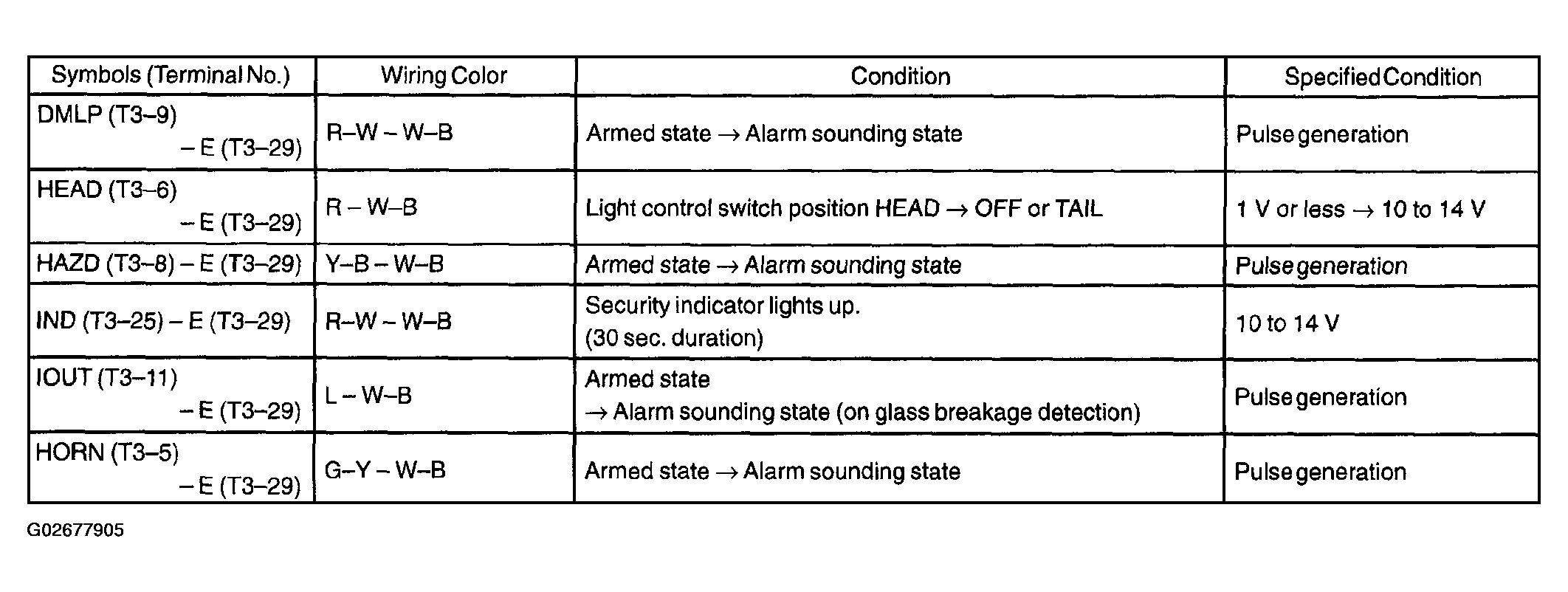

    Fig 3: Identifying Wiring Color Condition Chart (2 Of 2)
    G02677905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the result is not as specified, the TVIP ECU may have a malfunction.

  2. INSPECT INTEGRATION RELAY

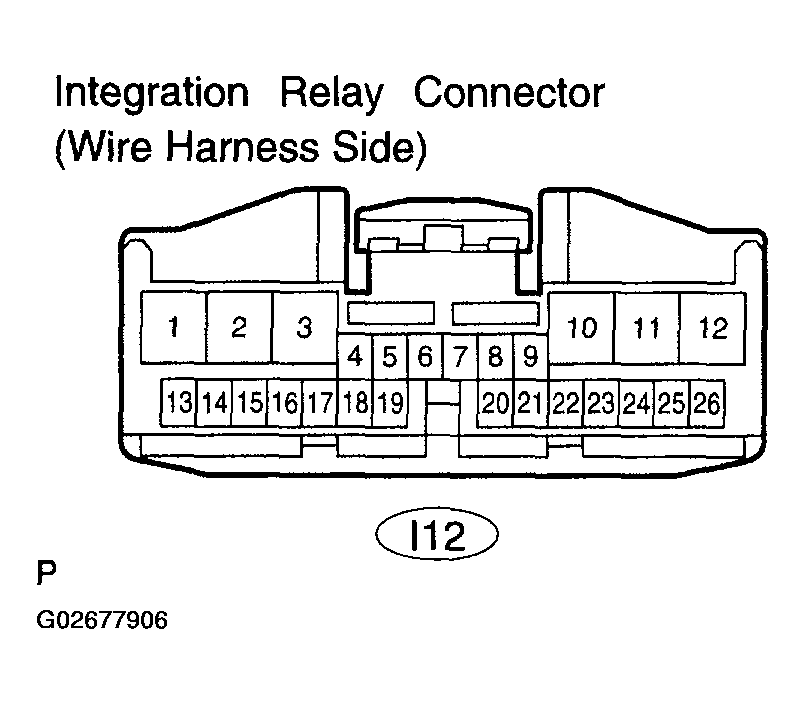

    Fig 4: Identifying Integration Relay Connector
    G02677906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the 112 relay connector.
    2. Measure the resistance of the connector.

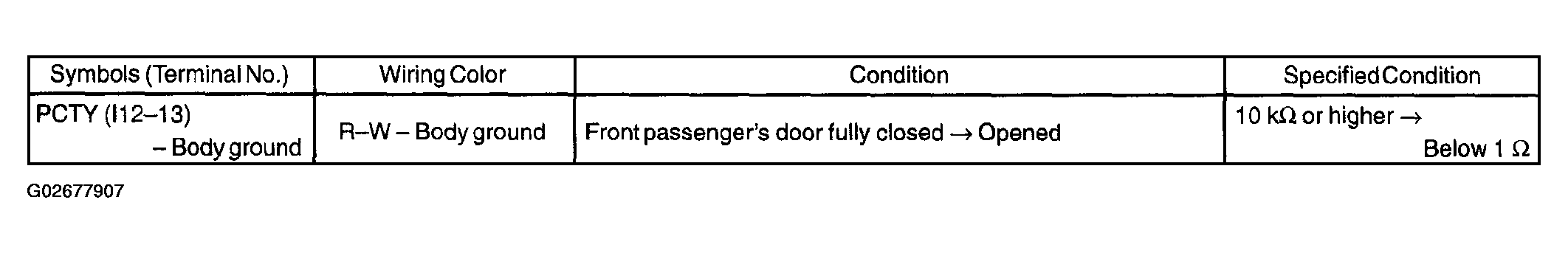

    Fig 5: Identifying Wiring Color Condition Chart
    G02677907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the result is not as specified, there may be a malfunction on the wire harness side.

  3. INSPECT INSTRUMENT PANEL J/B (INTEGRATION RELAY)

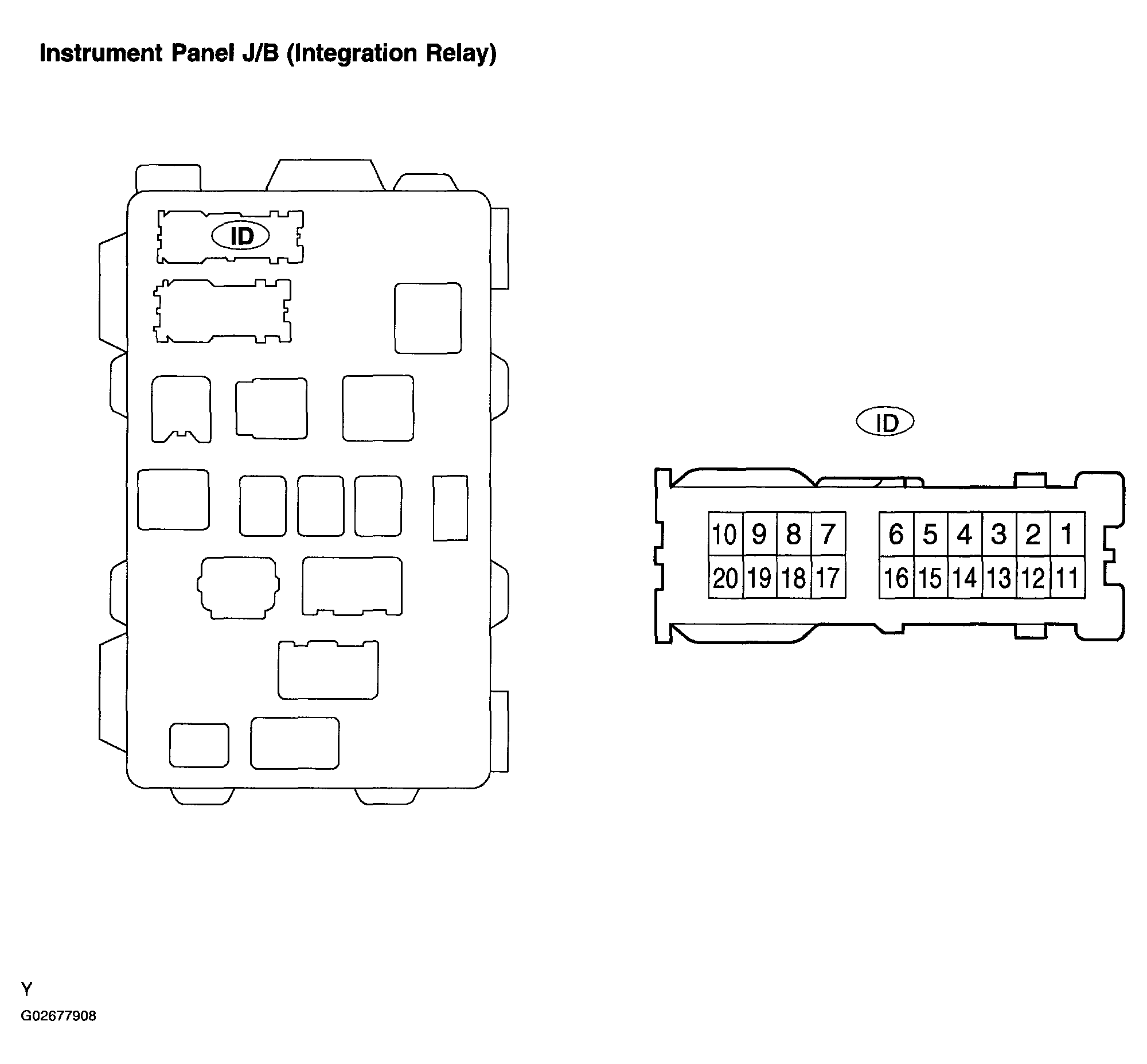

    Fig 6: Identifying Instrument Panel J/B Terminal Connector
    G02677908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the ID J/B connector of the instrument panel J/B.
    2. Measure the resistance of the wire harness side connector.

    Standard:

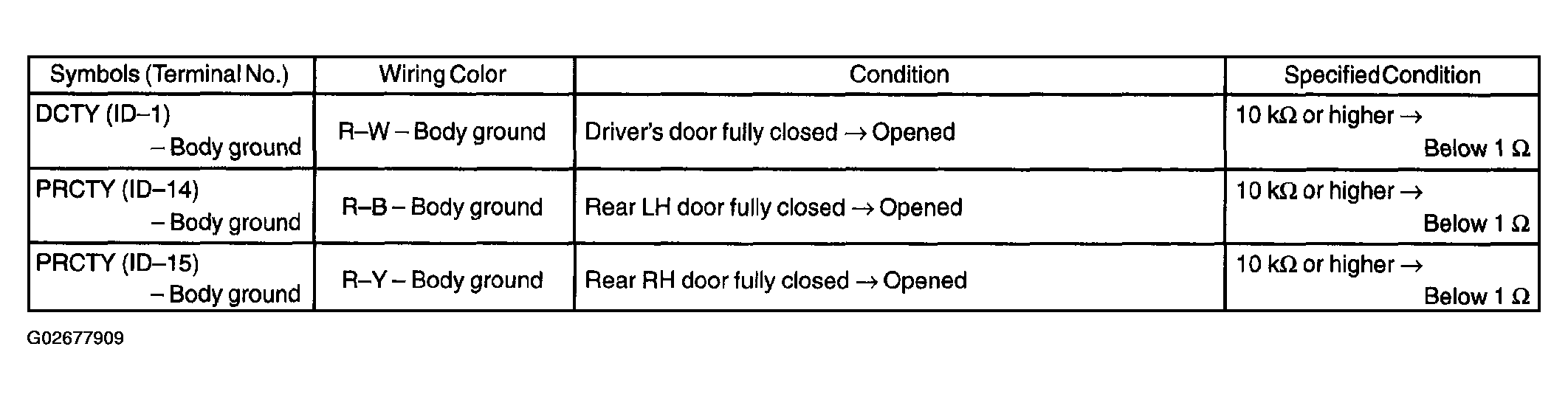

    Fig 7: Identifying Wiring Color Condition Chart
    G02677909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the result is not as specified, there may be a malfunction on the wire harness side.
