Throttle Body (SMT): Installation
- INSTALL THROTTLE BODY

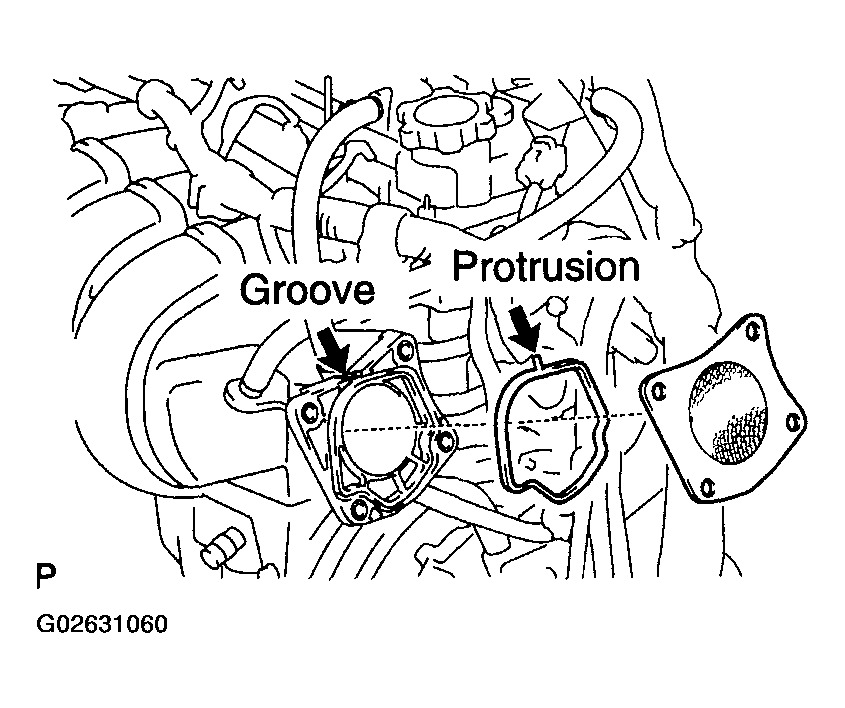

- Install 2 new gaskets to the intake manifold as shown in the illustration.

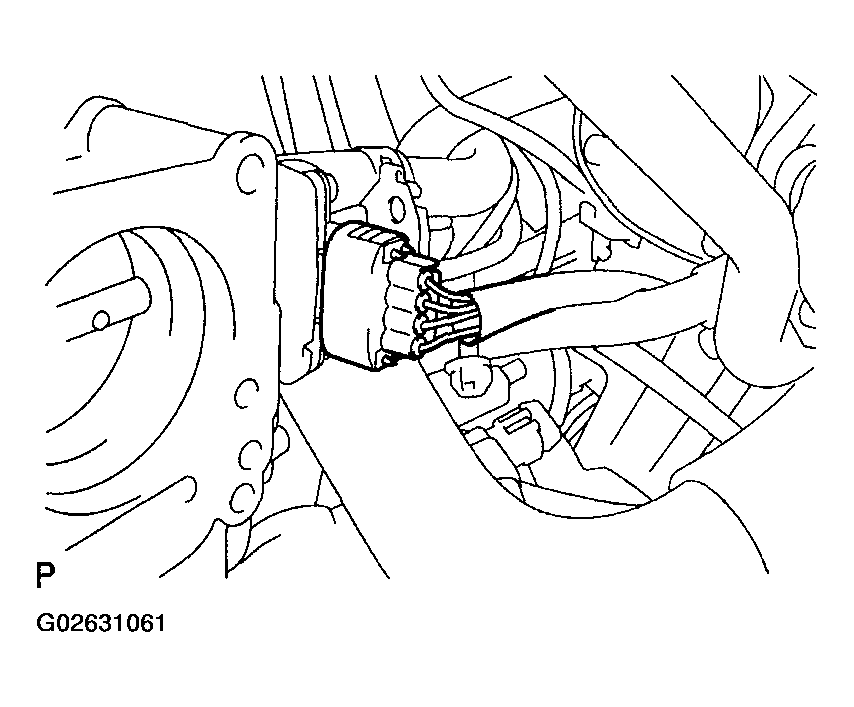

- Connect the accelerator position sensor connector.

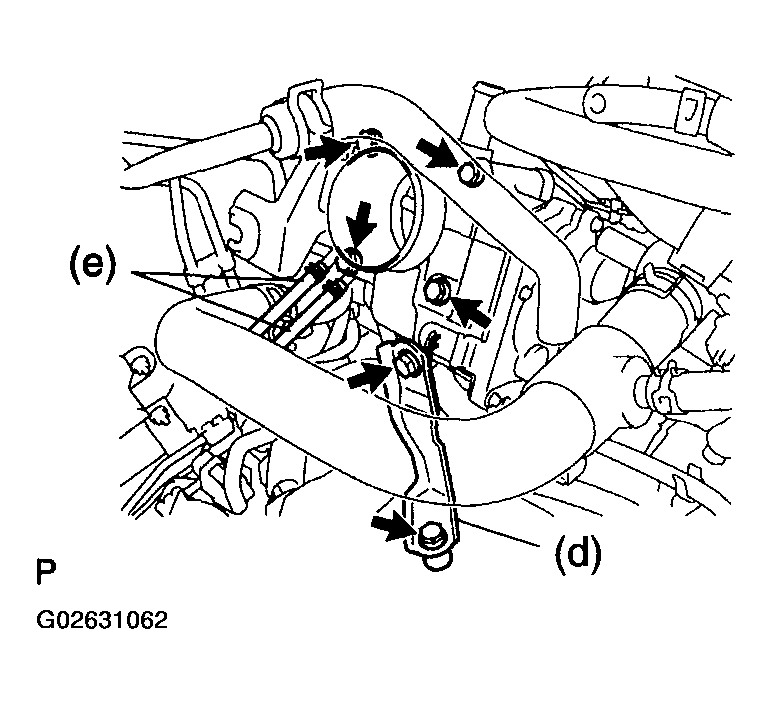

- Install the throttle body with the 2 bolts and 2 nuts.
Torque: 30 N.m (305 kgf.cm, 22 ft.lbf)
- Install the throttle body bracket with the 2 bolts.
Torque: 49 N.m (500 kgf.cm, 36 ft.lbf)

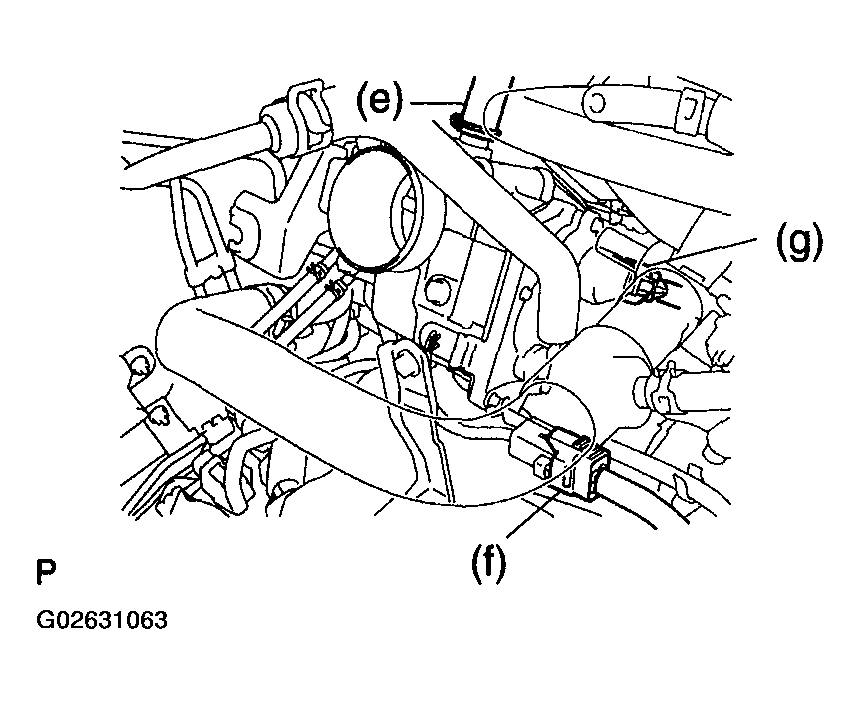

- Connect the 2 water bypass hoses to the throttle body.
- Connect the PCV hose to the throttle body.
- Connect the control motor connector.
- Connect the throttle position sensor connector.
- CONNECT ACCELERATOR CABLE
- INSTALL VSV FOR EVAP WITH AIR CLEANER HOSE
- INSTALL VSV FOR EVAP HOSE
- INSTALL SUSPENSION UPPER BRACE
- FILL RADIATOR WITH ENGINE COOLANT
