Throttle Body (SMT): Inspection
- INSPECT THROTTLE CONTROL MOTOR
- Using an ohmmeter, measure the motor resistance between terminal 1 (M+) and 2 (M-).
Motor resistance: 0.3 - 100 Ω at 20°C (68°F)
If the resistance is not as specified, replace the throttle body assembly.
- Using an ohmmeter, measure the clutch resistance between terminal 3 (CL-) and 4 (CL+).
Clutch resistance: 4.2 - 5.2 Ω at 20°C (68°F)
If the resistance is not as specified, replace the throttle body assembly.
- Using an ohmmeter, measure the motor resistance between terminal 1 (M+) and 2 (M-).
- INSPECT THROTTLE POSITION SENSOR

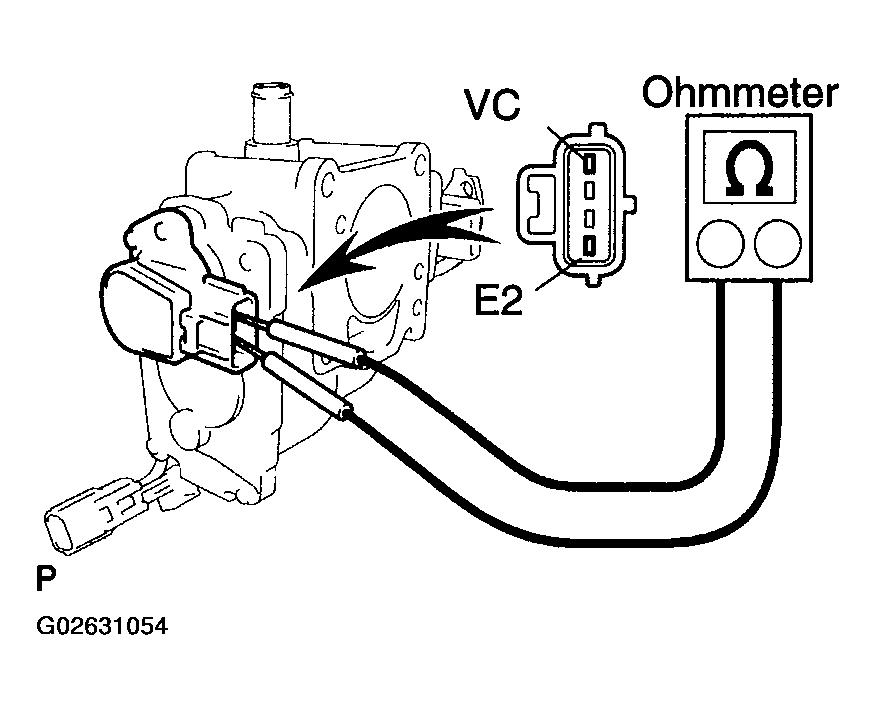

Using an ohmmeter, measure the resistance between terminals VC and E2.
Resistance: 1.2 - 3.2 kΩ at 20°C (68°F)
If the resistance is not as specified, replace the sensor (See REPLACEMENT ).
- INSPECT ACCELERATOR POSITION SENSOR

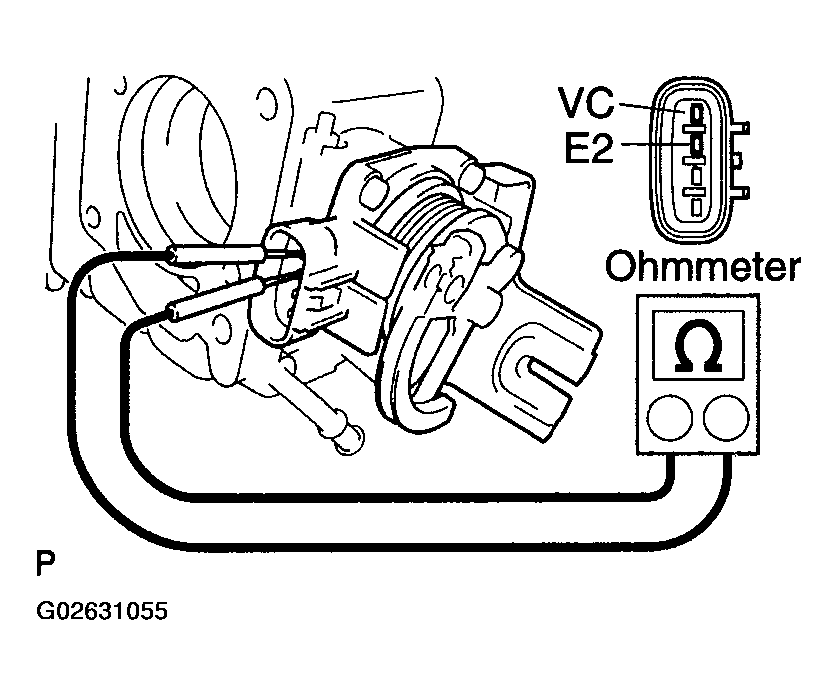

Using an ohmmeter, measure the resistance between terminals VC and E2.
Resistance: 1.2 - 3.2 kΩ at 20°C (68°F)
If the resistance is not as specified, replace the sensor (See REPLACEMENT ).
