Throttle Body (M/T): Installation
- INSTALL THROTTLE BODY

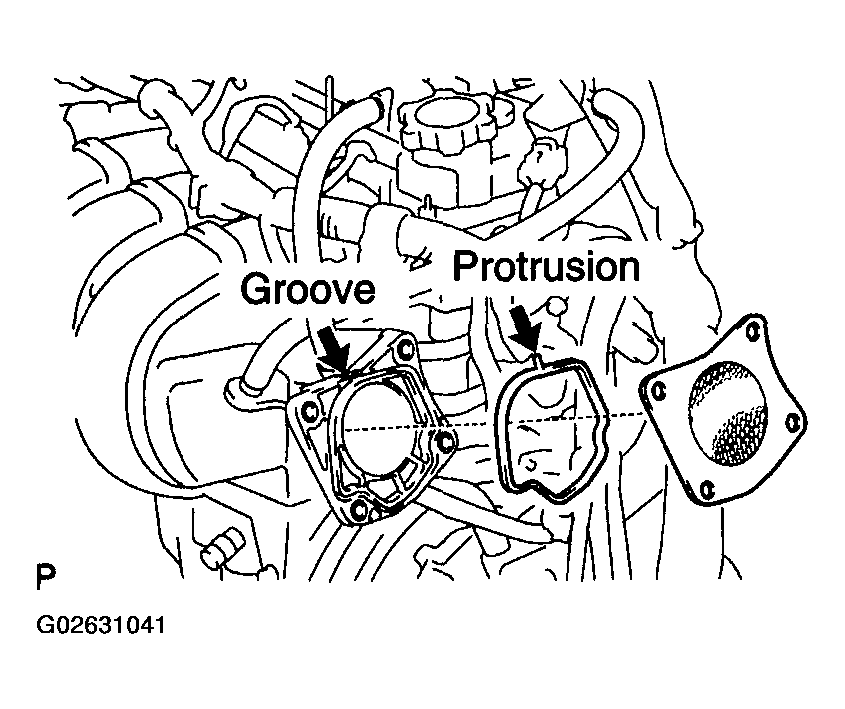

- Install 2 new gaskets to the intake manifold as shown in the illustration.
- Install the accelerator cable bracket to the throttle body with the 2 bolts.

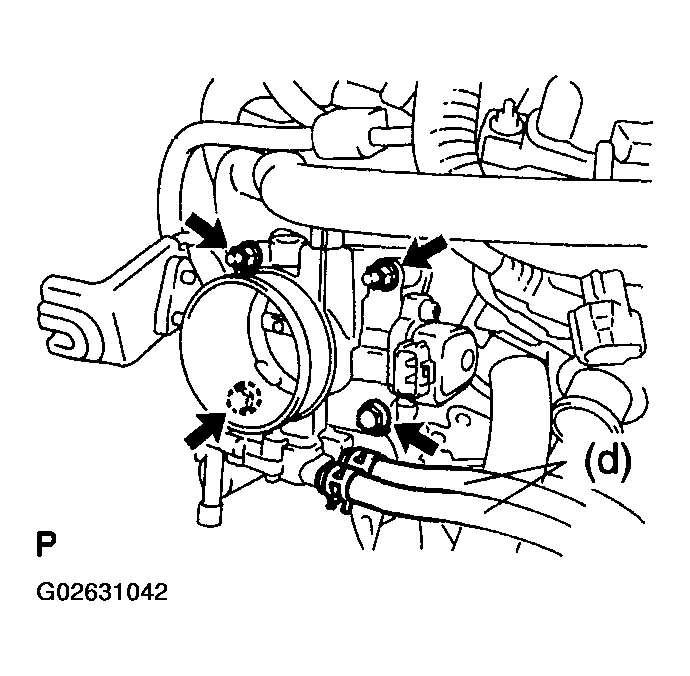

- Install the throttle body with the 2 bolts and 2 nuts.
Torque: 30 N.m (306 kgf.cm, 22 ft.lbf)
- Connect the 2 water bypass hoses to the throttle body.

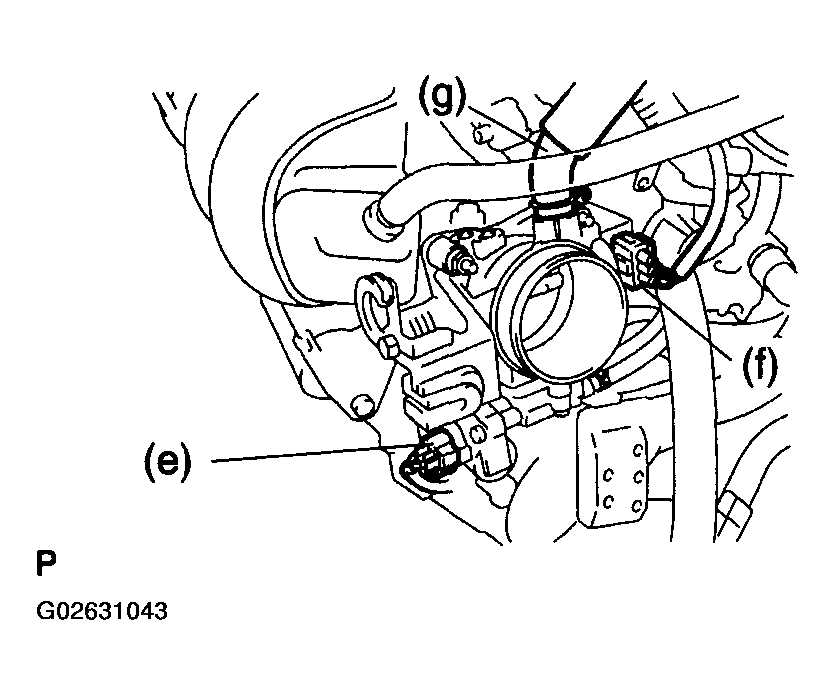

- Connect the IAC valve connector.
- Connect the throttle position sensor connector.
- Connect the PCV hose to the throttle body.
- CONNECT ACCELERATOR CABLE
- INSTALL AIR CLEANER HOSE
- INSTALL VSV FOR EVAP
- INSTALL SUSPENSION UPPER BRACE
- FILL RADIATOR WITH ENGINE COOLANT
