Knock Sensor: Inspection
- REMOVE ENGINE FROM VEHICLE (See REMOVAL )
- REMOVE INTAKE MANIFOLD AND THROTTLE BODY ASSEMBLY (See REMOVAL )
- REMOVE KNOCK SENSOR
- Disconnect the knock sensor connector.

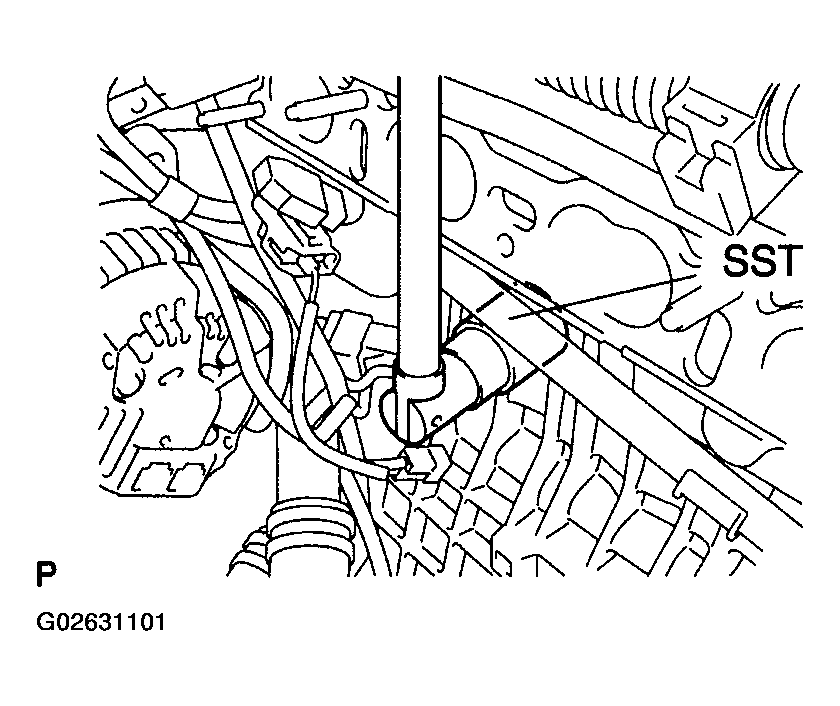

- Using SST, remove the sensor.
SST 09817-16011
- INSPECT KNOCK SENSOR

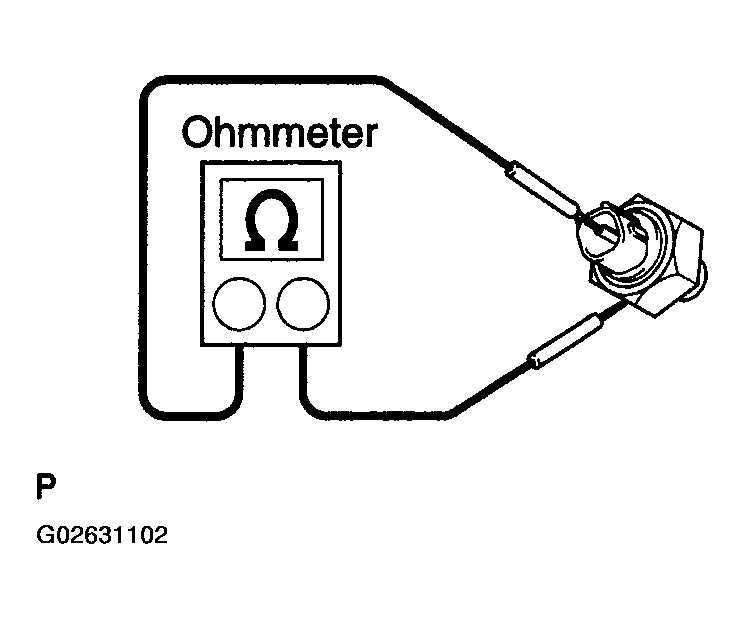

Using an ohmmeter, check that there is no continuity between the terminal and body.
If there is continuity, replace the sensor.
- REINSTALL KNOCK SENSOR
- Using SST, install the sensor.
SST 09817-16011
Torque: 39 N.m (398 kgf.cm, 29 ft.Ibf)
- Connect the sensor connector.
- Using SST, install the sensor.
- REINSTALL INTAKE MANIFOLD AND THROTTLE BODY ASSEMBLY (See INSTALLATION )
- INSTALL ENGINE TO VEHICLE (See INSTALLATION )
