Engine Control System (SFI): Injector: Removal
- REMOVE SUSPENSION UPPER BRACE
- REMOVE NO. 2 CYLINDER HEAD COVER
- DISCONNECT PCV HOSE
- DISCONNECT WIRE HARNESS CLAMPS

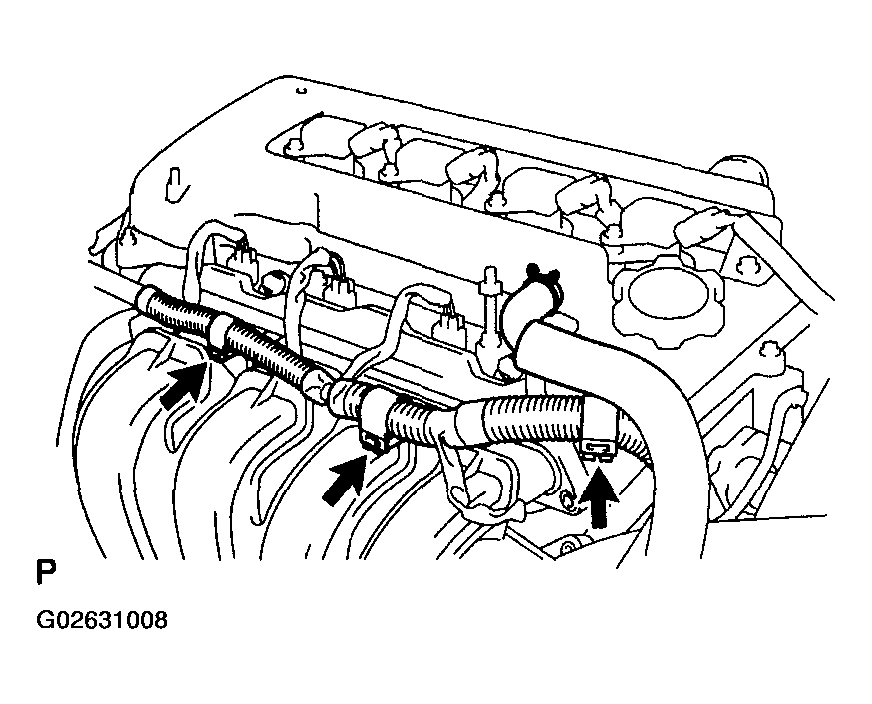

Disconnect the 3 wire harness clamps from the clamp brackets.
- REMOVE INJECTORS
- Disconnect the 4 injector connectors.

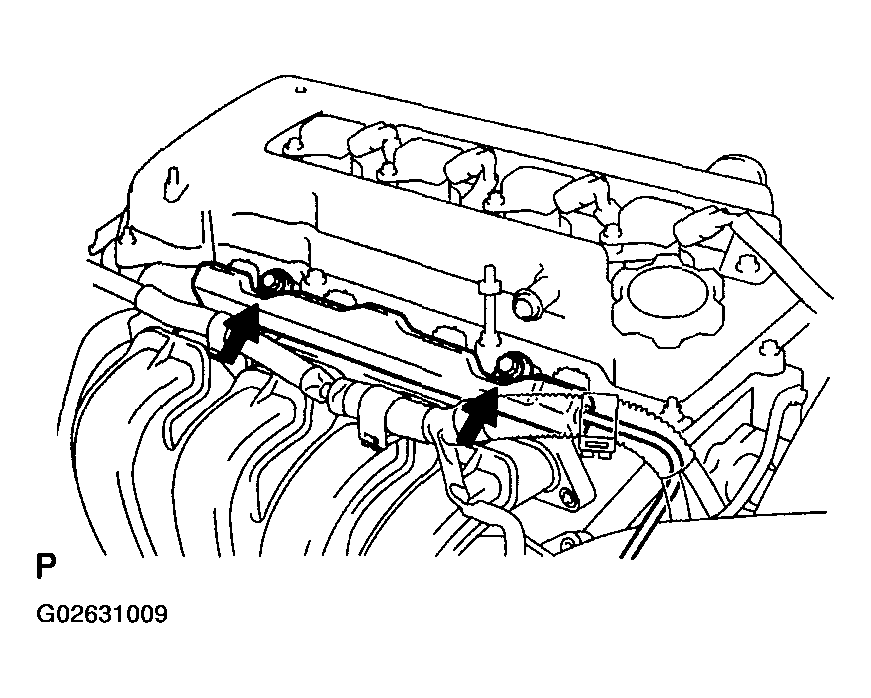

- Remove the 2 bolts holding the delivery pipe to the cylinder head.
- Disconnect the delivery pipe together with the 4 injectors from the cylinder head.NOTE: Be careful not to drop the injectors when disconnecting the delivery pipe.
- Remove the 2 spacers and 4 grommets.
- Pull out the 4 injectors from the delivery pipe.
- Remove the O-ring from each injector.
