Fuel Tank And Line: Inspection

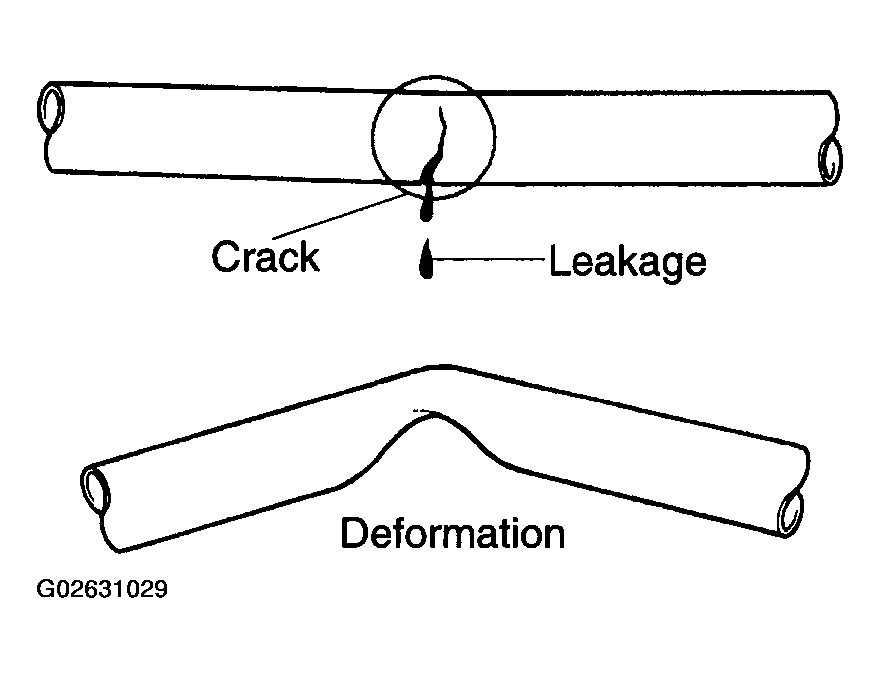

- Check the fuel lines for cracks or leak, and all the connections for deformation.
- Check the fuel tank for deformation, cracks fuel, leak or looseness of the tank band.
- Check the filter neck for damage or fuel leak.

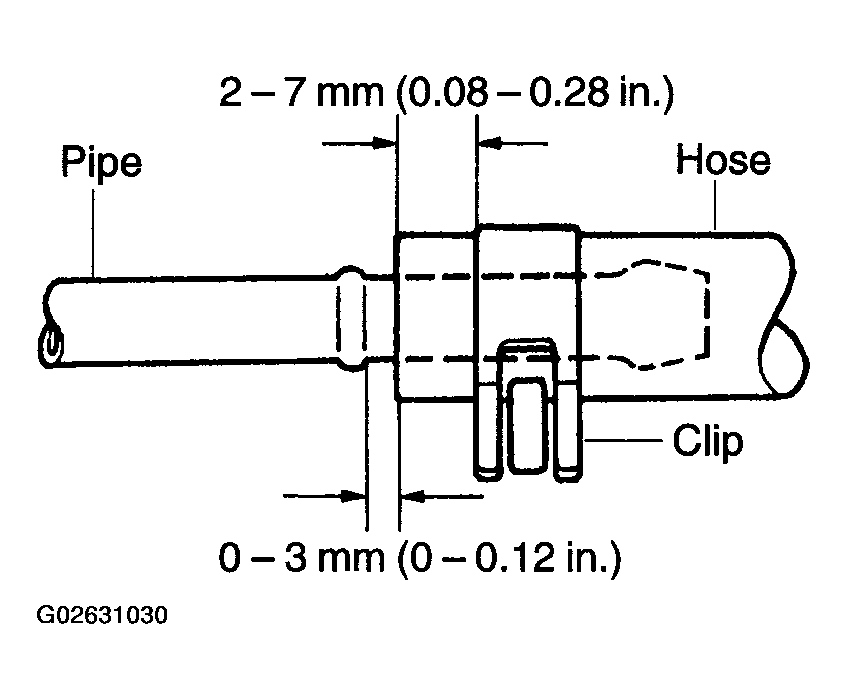

- Hose and tube connections are as shown in the illustration.
If a problem is found, repair or replace the part as necessary.
