Engine Coolant Temperature (ECT) Sensor: Inspection
- DRAIN ENGINE COOLANT

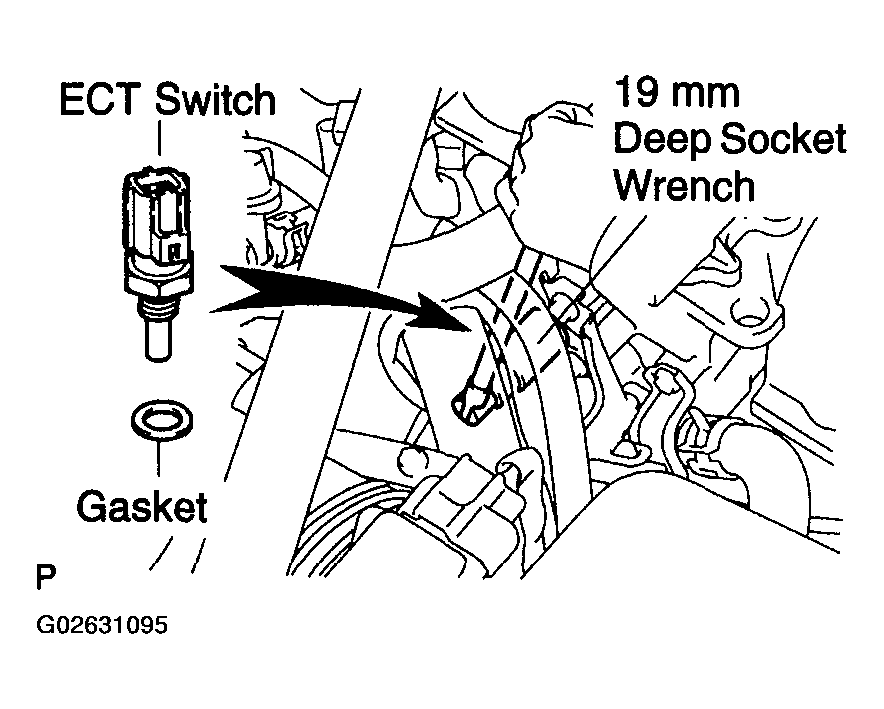

- REMOVE ECT SENSOR
- Disconnect the sensor connector.
- Using a 19 mm deep socket wrench, remove the sensor and gasket.

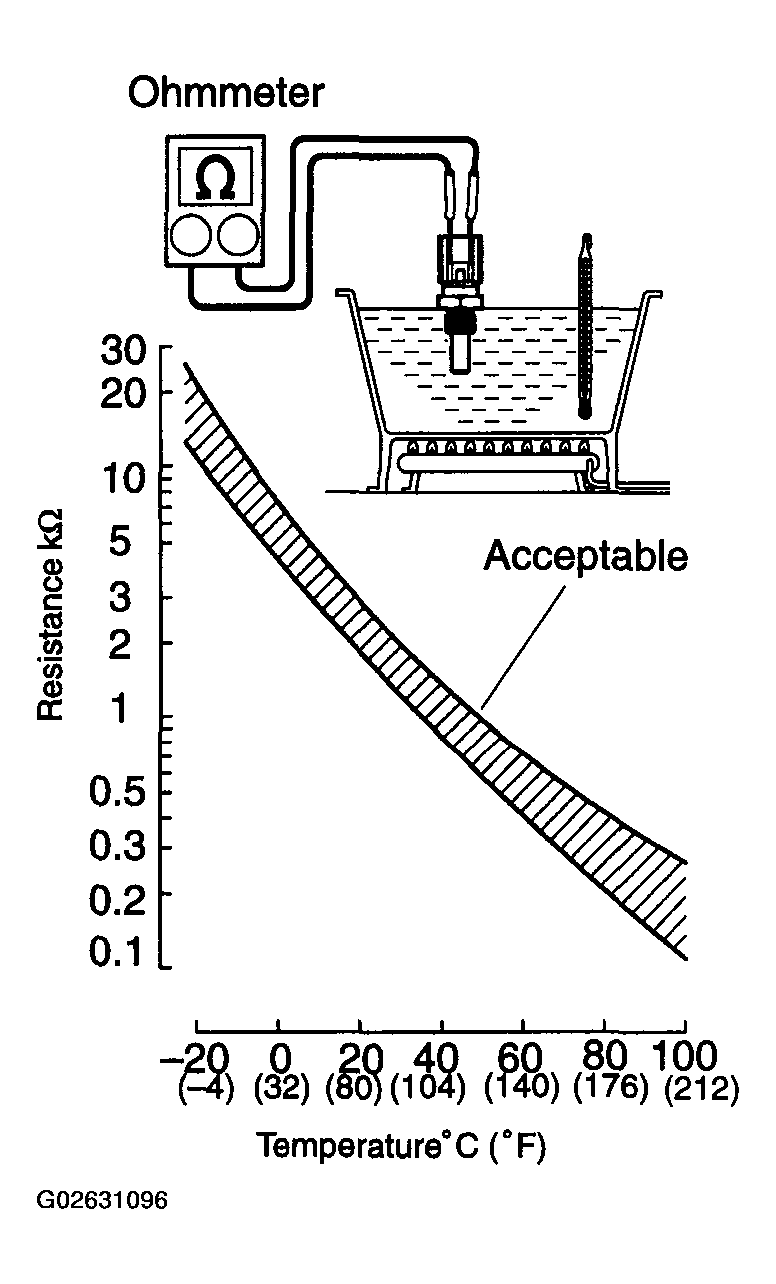

- INSPECT ECT SENSOR
Using an ohmmeter, measure the resistance between the terminals.
Resistance: Refer to the graph
If the resistance is not as specified, replace the sensor.
- REINSTALL ECT SENSOR
- Install a new gasket to the sensor.
- Using a 19 mm deep socket wrench, install the sensor.
Torque: 20.4 N.m (208 kgf.cm, 15 ft.Ibf)
- Connect the sensor connector.
- REFILL WITH ENGINE COOLANT
