Terminals Of ECM

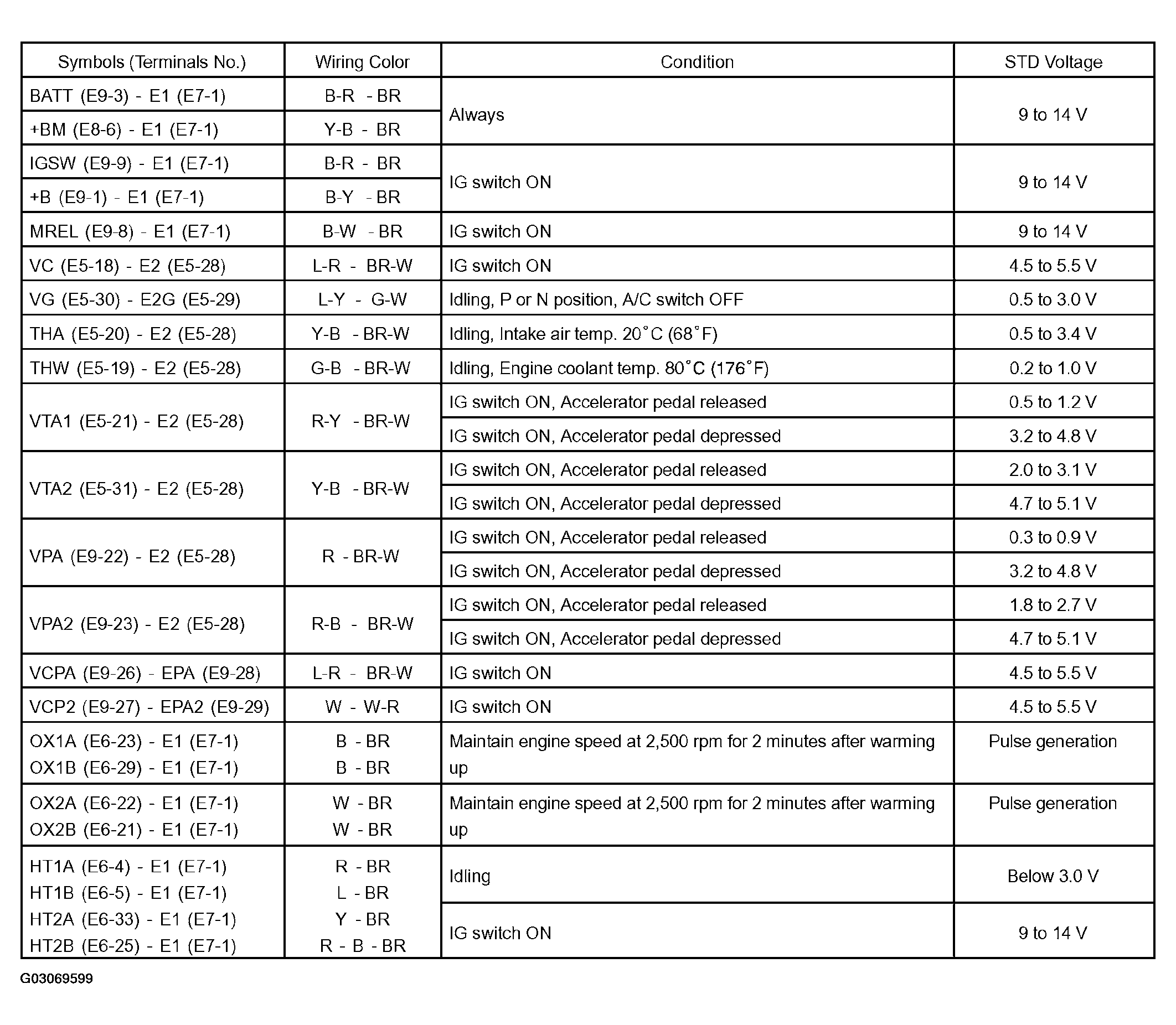

Each ECM terminals standard normal voltage is shown in Fig 2 . In the table, first follow the information under "Condition".
Look under "Symbols (Terminals No.)" for the terminals to be inspected.
The standard normal voltage between the terminals is shown under "STD Voltage".

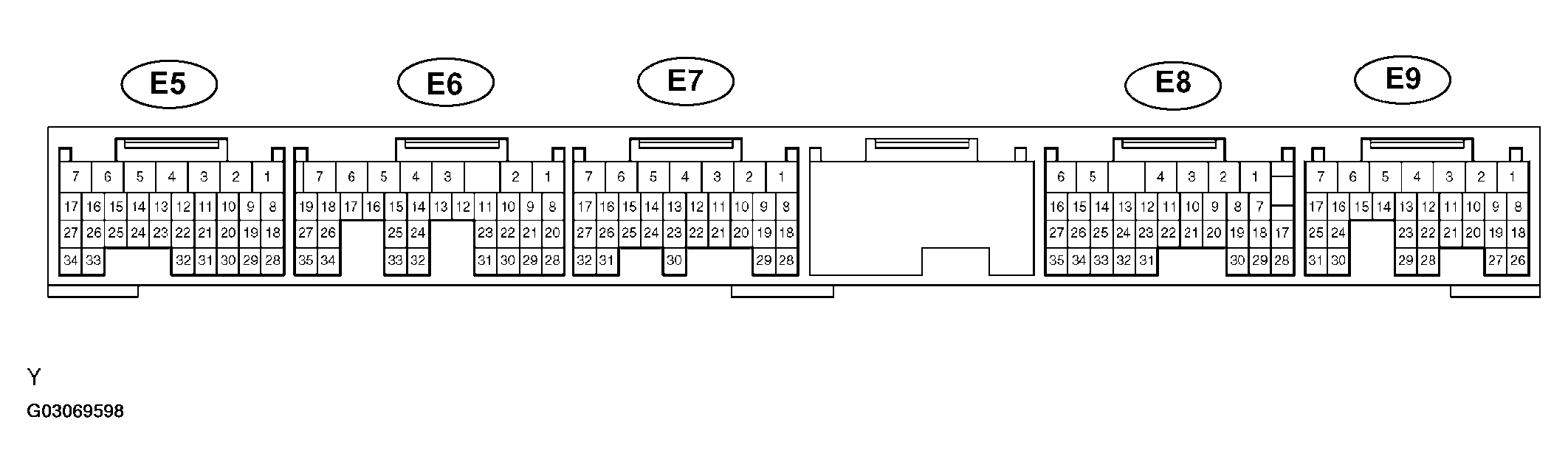

Use Fig 1 as a reference for the ECM terminals.
