2005 Toyota Land CruiserFACTORY OEM SERVICE PROCEDURE

Fuel Pressure Regulator: Removal

REMOVE V-BANK COVER
REMOVE FUEL PRESSURE REGULATOR
1. Disconnect the vacuum sensing hose from the fuel pressure regulator.

  Fig 1: Disconnecting Fuel Return Hose From Fuel Pressure Regulator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the fuel return hose from the fuel pressure regulator.
  CAUTION: Put a shop rag under the fuel pressure regulator.

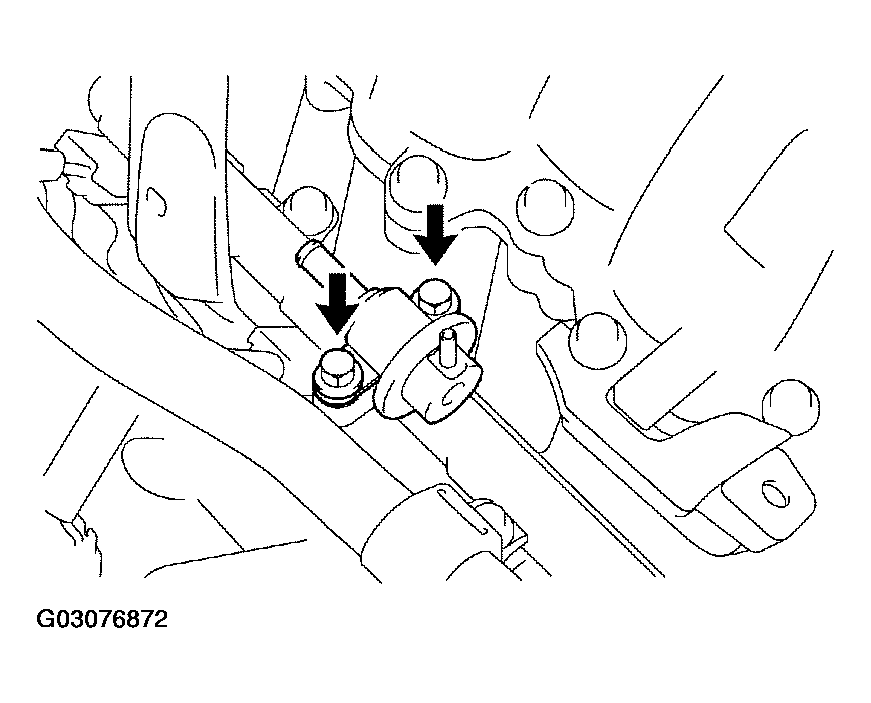

3. Remove the 2 bolts, and pull out the pressure regulator.

  Fig 2: Pulling Out Pressure Regulator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the O-ring from the fuel pressure regulator.
