Repair Procedures
- INSPECT STEERING WHEEL OFF CENTER

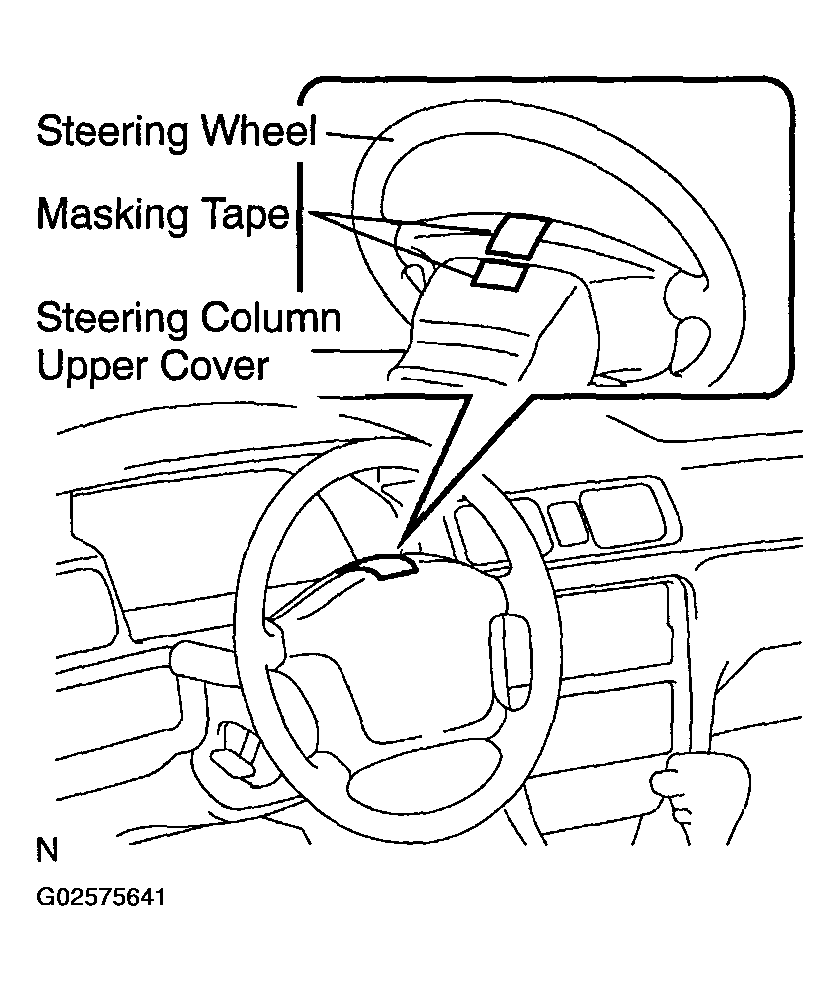

- Apply masking tape on the top center of the steering wheel and steering column upper cover.
- Drive the vehicle in a straight line for 100 meters at a constant speed of 35 mph (56 km/h), and hold the steering wheel to maintain the course.

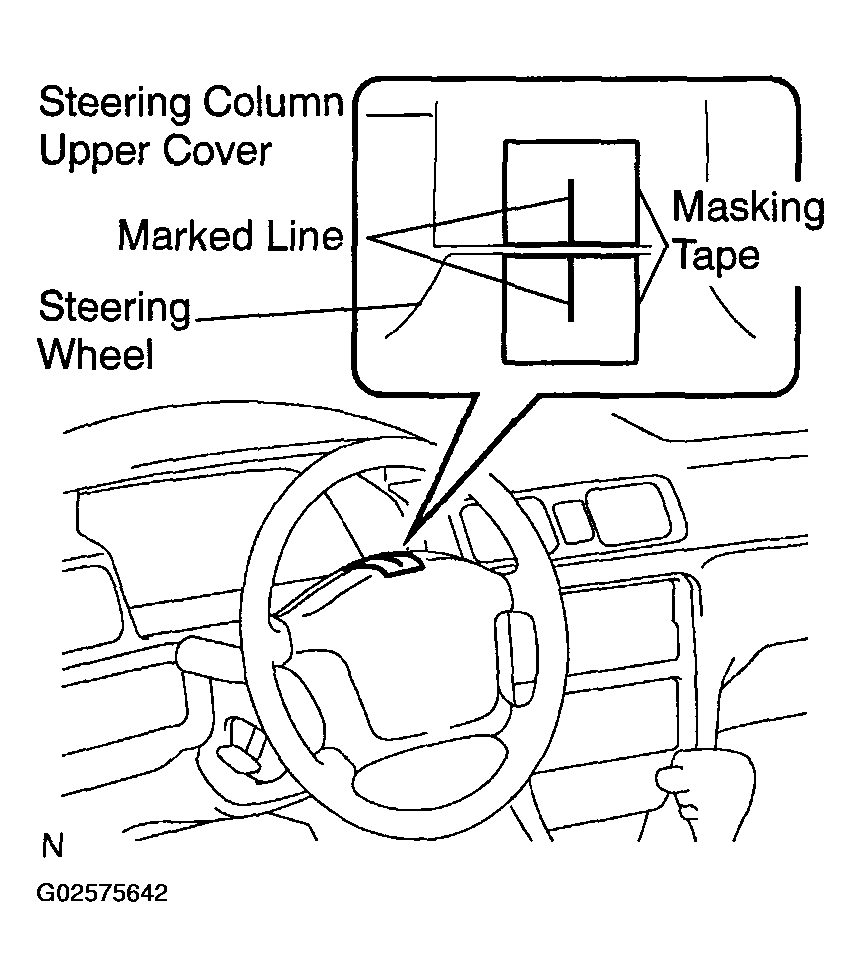

- Draw a line on the masking tape as shown in the illustration.
- Turn the steering wheel to its straight position.NOTE: Refer to the upper surface of the steering wheel, steering spoke and SRS airbag line for the straight position.
- Draw a new line on the masking tape of the steering wheel as shown in the illustration.
- Measure the distance between the 2 lines on the masking tape of the steering wheel.
- Convert the measured distance to steering angle.
Measured distance 1 mm (0.04 in.) = Steering angle approximately 1 deg.
NOTE: Make a note of the steering angle.
