Heater Control Assembly On-Vehicle Inspection: Installation
- INSTALL HEATER CONTROL ASSEMBLY

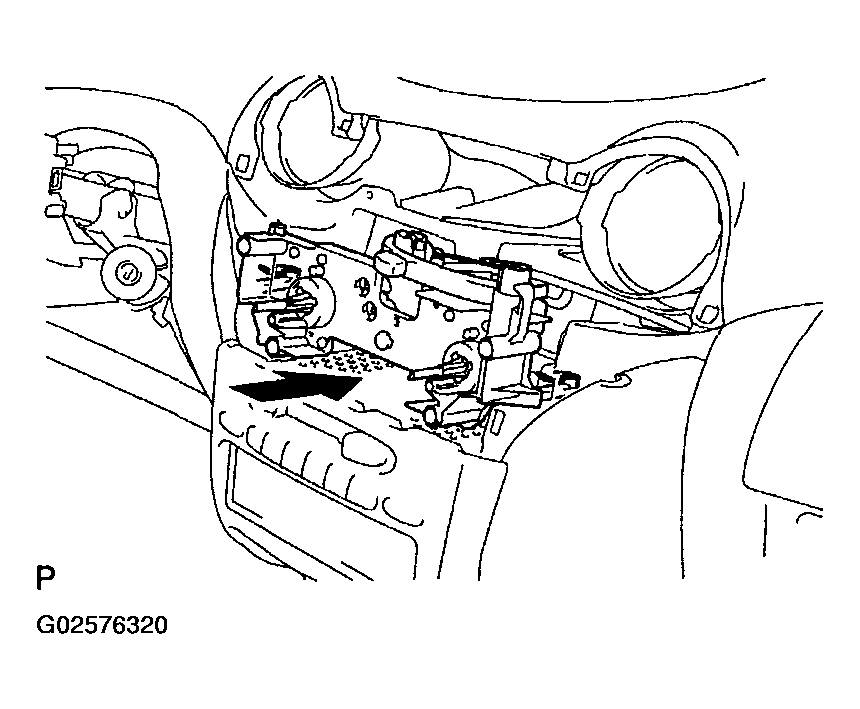

- Install the heater control assembly temporarily.

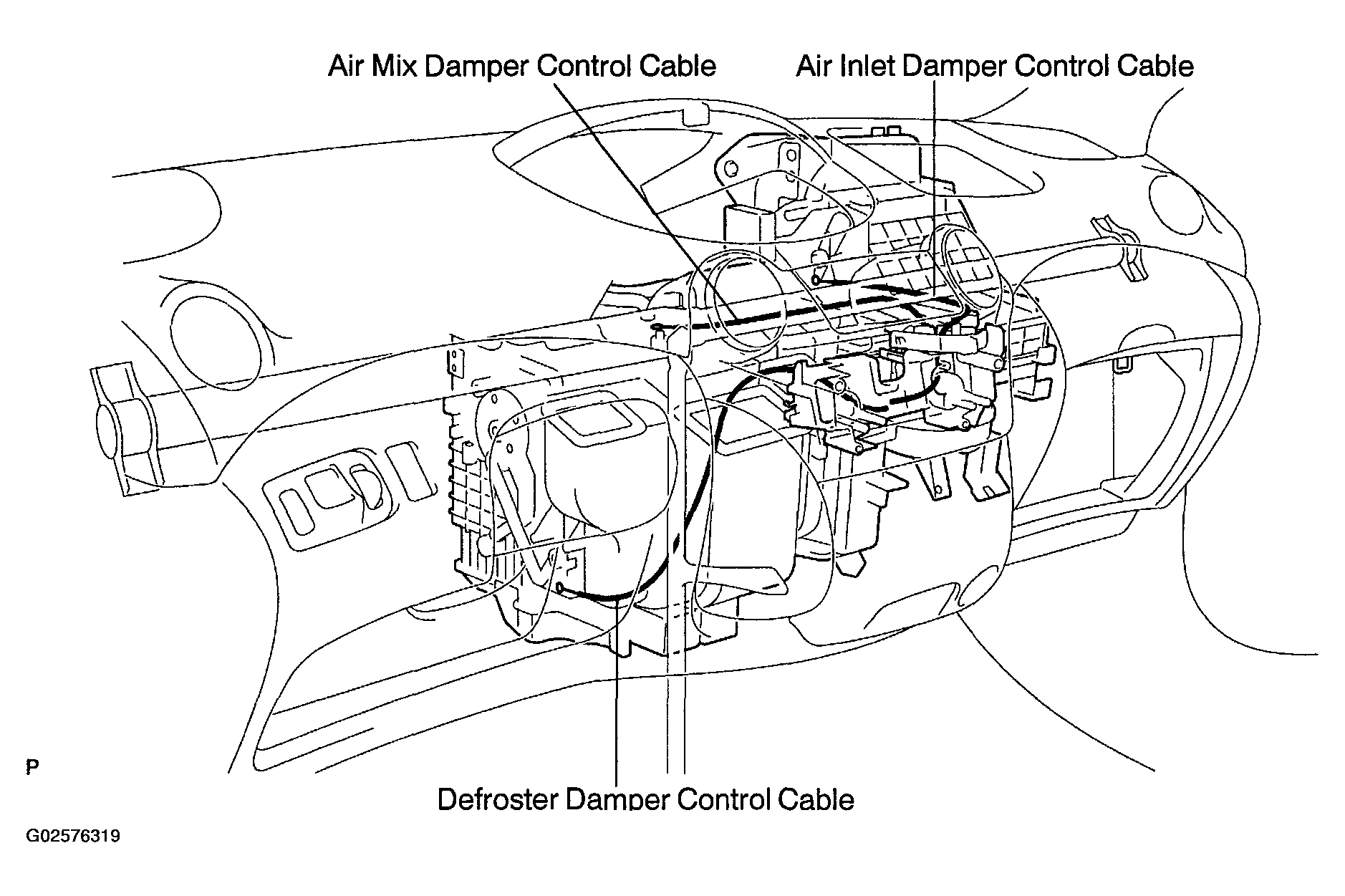

- Pass the heater control cables as shown in the illustration.
- Fit the 2 claws of heater control assembly in the instrument panel hole.
- CONNECT HEATER CONTROL CABLES
- Set air inlet selector to "RECIRC" position.
- Set temperature control selector to "MAX. COOL" position.
- Set mode selector to "FACE" position.
- Standard heater models only:
Adjust air inlet control cable.
Set air inlet damper control lever to "RECIRC" position and connect the inner cable to lever pin and clamp the outer cable.
NOTE: Lock the clamp while lightly pulling the outer cable to the direction shown by arrow in the illustration.
