Monitor Description
The idling speed is determined depending on the volume of air that passes through the intake air control (IAC) valve. When the volume is large, the idling speed becomes higher. When the volume is small, the idling speed becomes lower. The IAC valve controls the air volume that bypasses the throttle valve. The ECM sends duty signals to the IAC valve and drives the IAC valve motor to regulate the air volume that bypasses the throttle valve.
Although the ECM regulates the engine idling RPM with feedback control in several vehicle stopped, actual idling RPM does not reach the targeted RPM and a learned valve opening duty ratio of the IAC remains at the maximum or remains at the minimum, the ECM determines to detect a malfunction in the IAC system.

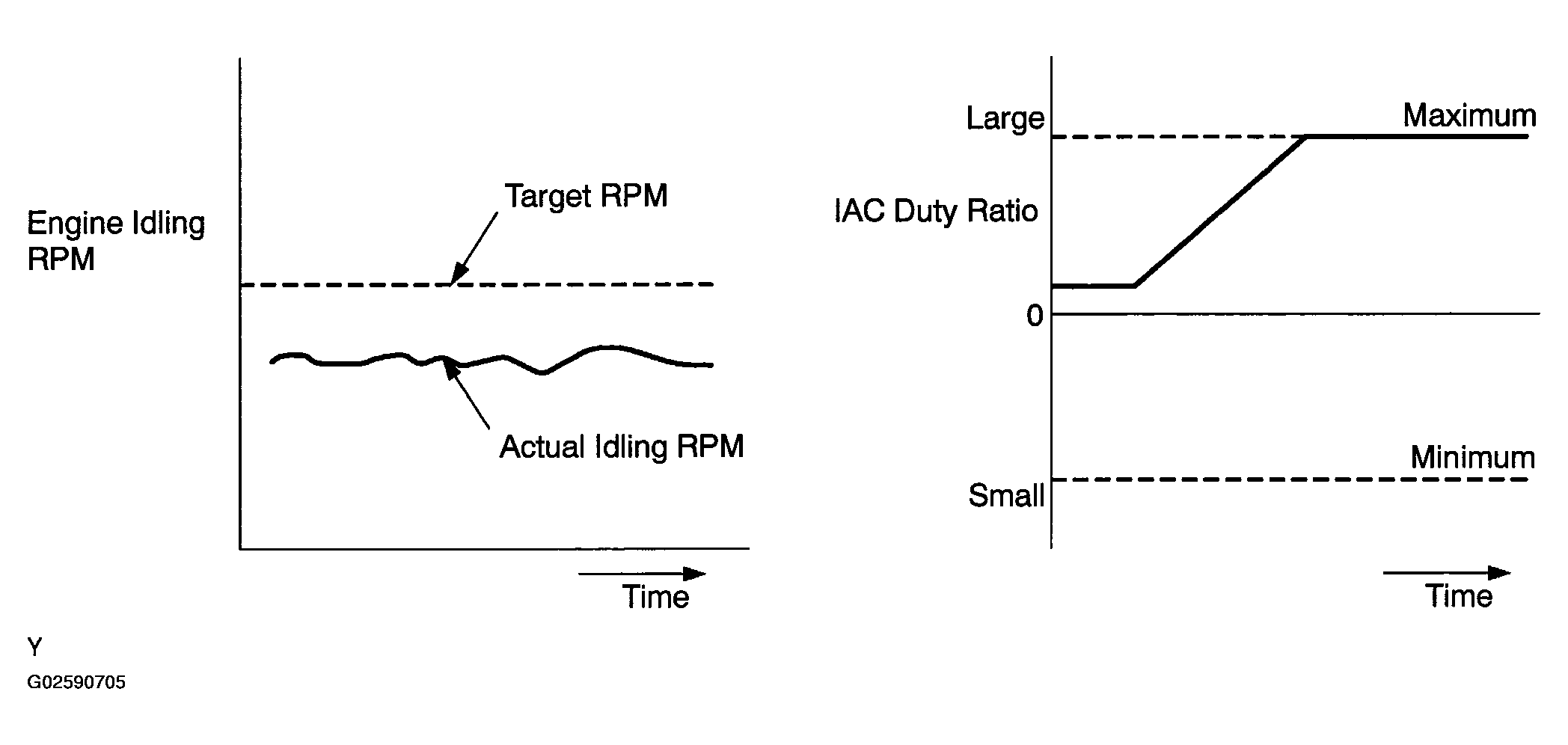

Example:
If the difference between the targeted and actual engine idling RPMs exceeds 200 RPM (*1) with the vehicle stopped while idling, and this occurs 5 times, or if the learned valve angle of the IAC remains at the maximum or minimum angles for 5 seconds, DTC P0505 is set.
P0511 is set as an open/short circuit in the IAC if the duty signal ratio transmitted to the IAC valve remains at 0% or 100%.
*1: Threshold RPM varies in accordance with an engine load.
