Oil Pump: Installation
- INSTALL OIL PUMP

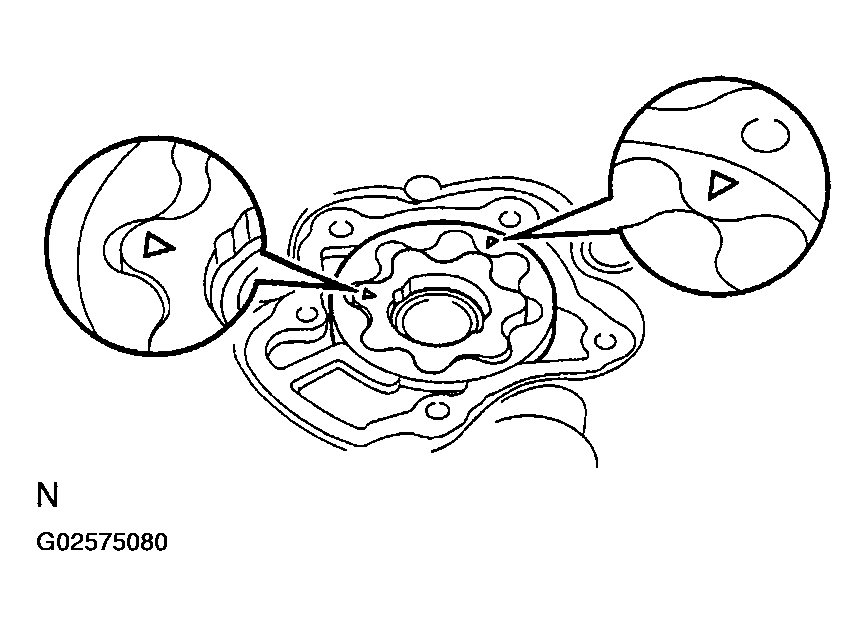

- Place the drive and driven rotors into timing chain cover with the marks facing the oil pump cover side.

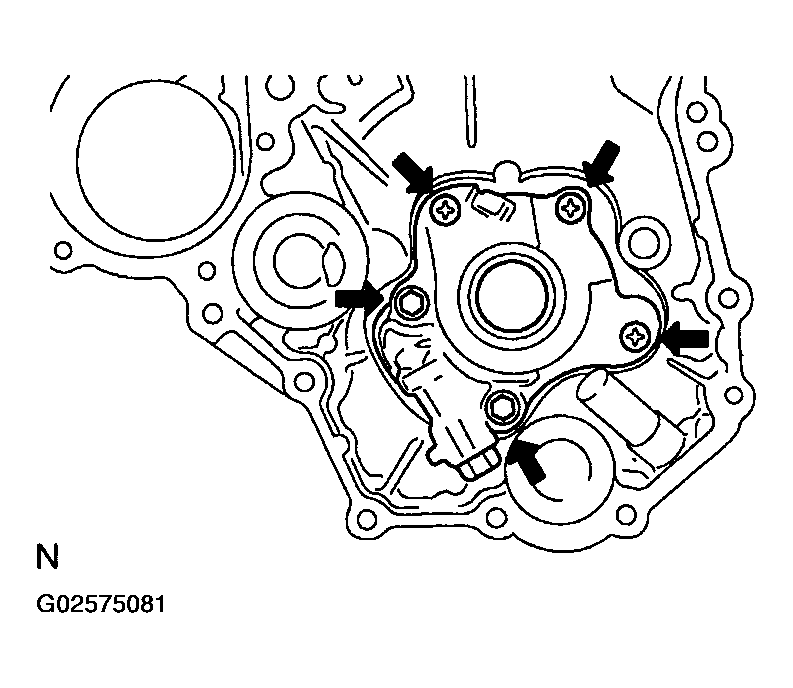

- Install the oil pump cover to the timing chain cover with the 2 bolts and 3 screws.
Torque:
Bolt 9.0 N.m (92 kgf.cm, 80 in.lbf)
Screw 11 N.m (110 kgf.cm, 8 ft.lbf)
- INSTALL TIMING CHAIN COVER (See INSTALLATION )
- FILL WITH ENGINE OIL
- CHECK FOR LEAKS
