Starter Relay: Inspection
- REMOVE STARTER RELAY
- INSPECT STARTER RELAY CONTINUITY
- Using an ohmmeter, check that there is continuity between terminals 1 and 2.
If there is no continuity, replace the relay.
- Check that there is no continuity between terminals 3 and 5.
If there is continuity, replace the relay.
- Using an ohmmeter, check that there is continuity between terminals 1 and 2.

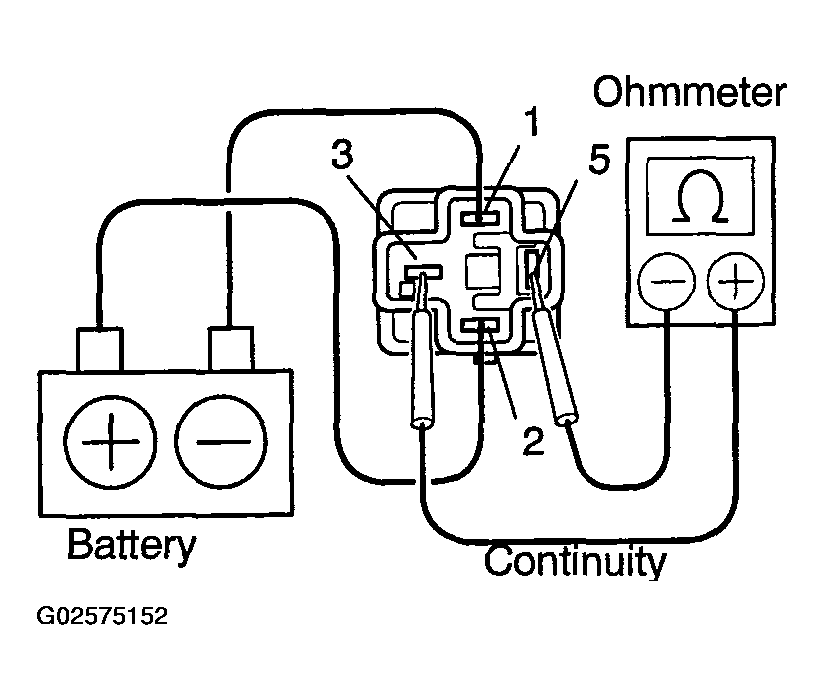

- INSPECT STARTER RELAY OPERATION
- Apply battery positive voltage across terminals 1 and 2.
- Using an ohmmeter, check that there is continuity between terminals 3 and 5.
If there is continuity, replace the relay.
- REINSTALL STARTER RELAY
